Home and Small Business Mini-PABX Kit
We want to thank you for purchasing the Mini-PABX Kit, it is a very powerful
solution, but we want to warn you that it can only serve you properly if you pay
attention to some very easy and simple rules.
WARNING!
If you read nothing else – please read this!
Support NOTICE:
We want to deliver the best possible support without
effecting the price of the item. Therefore, please read this carefully and check
our Frequently Asked Questions (FAQ) on our web-site before calling for
asking to speak to a qualified technician; if the question is in this Quick-Start
guide, the manual or our FAQ's, then you may be charged for your support call.
BEFORE YOU START:
– make sure all incoming lines are working.
The simple approach is to connect one of the 3 x Phones directly to the
incoming line, if it does not work there is no point in going further. You need to
test all incoming lines and be confident they work before you continue.
Remember: This is a seriously technical product, so to have you up and running
in about ½ an hour, a little time spent understanding the basics is essential.
The 3 x Phones supplied do not need batteries, all the functionality is supplied
over the cable from the Mini-PABX; however if you want to light up the display
then you do need batteries. Batteries are supplied; we include 3 x Alkaline
batteries for each Phone, but the battery manufacturer is responsible for their
quality and we can not guarantee them. Always use Alkaline or high quality
batteries as leaking batteries can ruin the phone(s) and is not warranted.
1. Basic Set-up:
First: Connect your incoming phone-lines to the main incoming lines on the
Mini-PABX , these are clearly marked "Line1, Line2 and Line3".
Connecting to the Exchange Line:

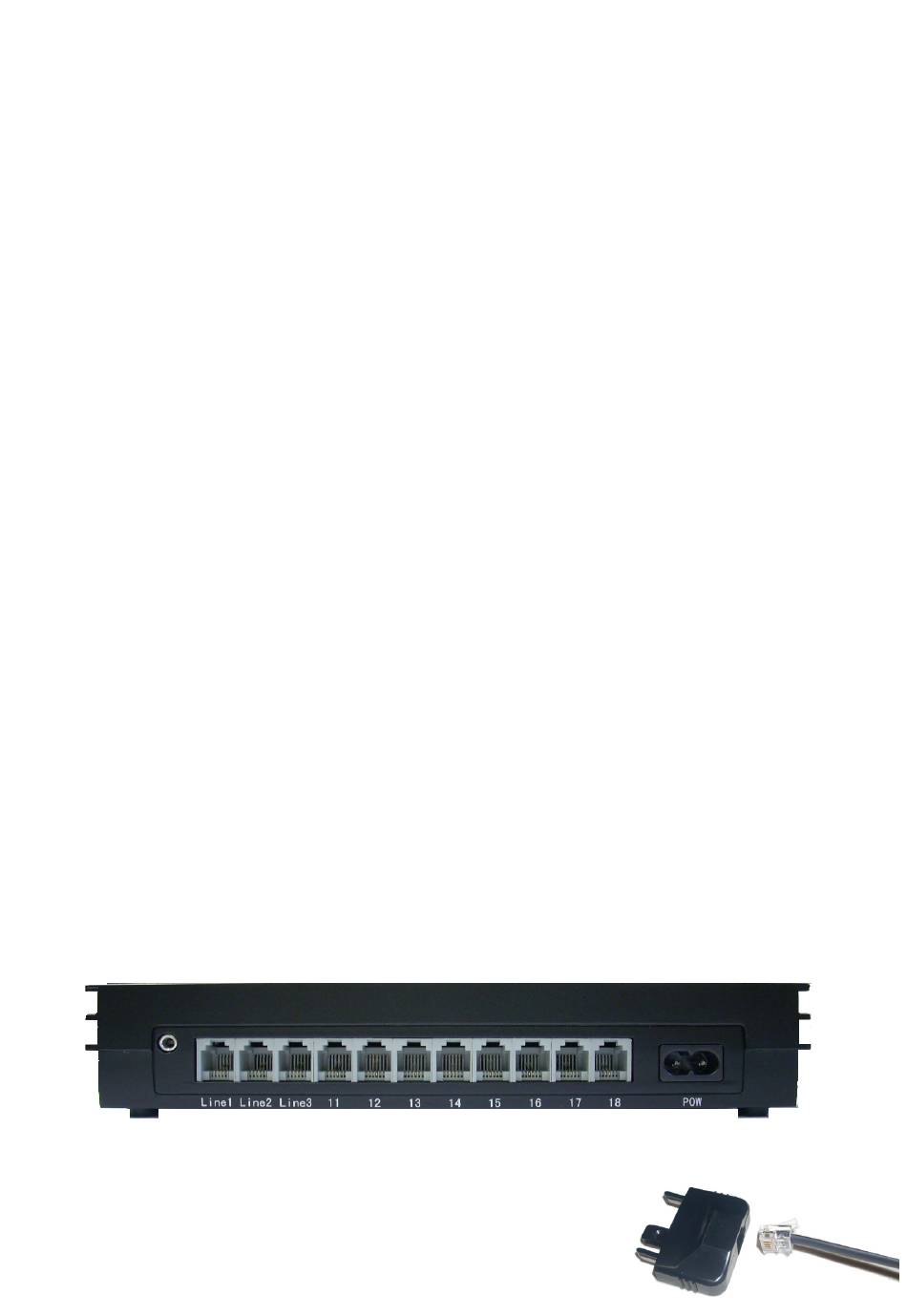

The cables have standard RJ12 connections, for a RJ12
socket, but if it's an old 610 socket, then you need an
605 adaptor (shown on the right) to convert the RJ12
end to fit the older-style 610 wall socket.
