EZCast Beam V3 Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
V3
EZCast Beam V3 Quick Start Guide
This EZCast Beam V3 Quick Start Guide provides a
guideline for basic operation. Please read the guide
thoroughly before operating the projector. Visit
www.EZCast.com for additional information. Product
information is subject to change without prior notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Beam V3 and is the answer not in the manual?

Questions and answers

Related Manuals for EZCast Beam V3

Summary of Contents for EZCast Beam V3

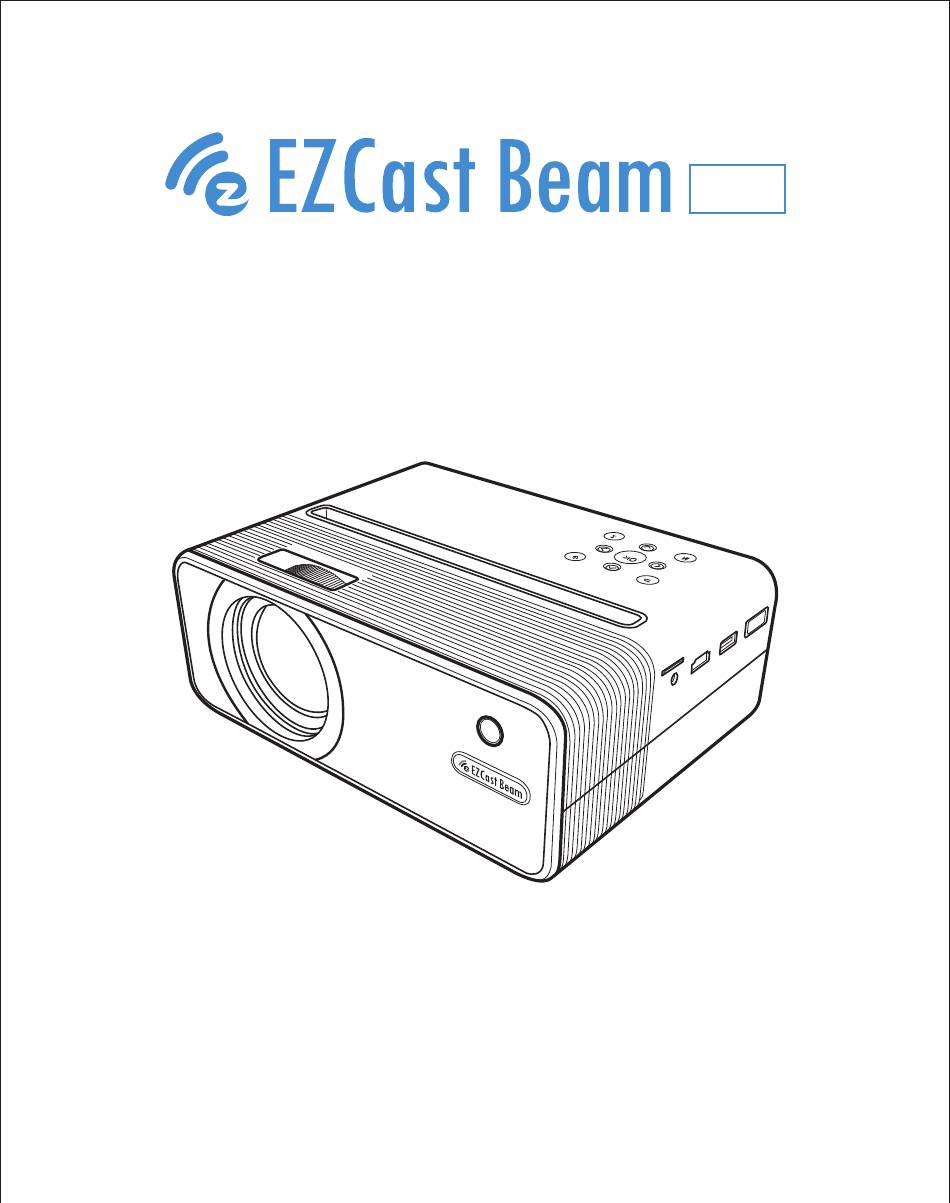

  • Page 1 EZCast Beam V3 Quick Start Guide This EZCast Beam V3 Quick Start Guide provides a guideline for basic operation. Please read the guide thoroughly before operating the projector. Visit www.EZCast.com for additional information. Product information is subject to change without prior notice.
  • Page 2 Mobile devices can proceed to the relevant download area by scanning the QR code below. (iOS users can search for EZCast in the App Store to download the app) (Android users can search for EZCast in Google Play to download the...
  • Page 3 Precautions How to use the projector 1. Do not turn the lens toward human eyes when in operation, to avoid damaging the eyes caused by the high intensity light source. Do not block the device ventilation to avoid damage to the internal electronic devices due to overheating.
  • Page 4 EZCast Beam V3 body and remote Mobile Stand Control Panel Focus Ring Wireless Kit Lens HDMI Headset Jack Micro SD Remote Sensor Ventilation (Do not block) Power Home Power Speaker Home mode Select Arrows Select Arrows Back Volume Volume down...
  • Page 5 How to set up EZCast Beam V3 projector HDMI Wireless Adapter Ventilation (Do not block) Preparation 1. Plug the power to the projector, and the power button will light up. 2. Insert the wireless adapter into the wireless kit port of the projector.

  • Page 6: First Time Settings

    (Important) 3. After starting up, enter the main menu and select the functions by arrow keys on the projector or remote control: Android, iOS, MacOS, Windows, bluetooth, EZCast, Multimedia, HDMI, and Setting, as below shown: Power off: 1. Sleeping mode: press the power button and hear the “beep” sound with the power button still blue.
  • Page 7 Settings Select the "Setting" key on the projector or remote control, and press "OK" to confirm. 1. Wi-Fi setting : Select the "Wi-Fi setting" menu and enter the Wi-Fi setting interface, select the "Internet", press "OK" key to confirm, and select the router from AP list and enter the password.
  • Page 8 3. Download and install EZCast app from Google Play Store or scan the QR code shown on screen. 4. Launch EZCast App and follow the guide. If the guide doesn’t pop out, click at the upper right and click “+” at the upper left.
  • Page 9 2. Install EZCast app on your PC. Please visit https://www.ezcast.com/app to download EZCast app. 3. Connect your PC to the projector via USB A-to-A cable. 4. Launch EZcast app on your PC and click icon. 5. Find and select "Beam-XXXX" from “Search device”, and click mirror.
  • Page 10 Note 1: The naming of mirroring function varies different brands. Visit https://www.ezcast.com/usage/android/ezmirror for demos. Note 2: Compatibility: Android 5.0 or above. 1. Select iOS on main menu of projector, and then select Wireless menu by pressing "OK"...
  • Page 11 Windows 10 1. Select Windows on main menu of projector, and then select Wireless menu by pressing "OK" key. 2. Make sure both of your projector and computer are connected to the same Wi-Fi router. 3. Click quick key by on the computer, and connect to the P/ K device named by “Beam-XXXX”...
  • Page 12 4. Launch Google Home app and choose device name: Beam-xxxx > Cast my screen > Cast screen Bluetooth Select “bluetooth” to use Beam V3 as a bluetooth speaker. Connection: Turn on bluetooth of your mobile or computer, and find Beam-XXXX to connect.
  • Page 13 EZCast (1) Select EZCast on main menu of projector and make sure both of your projector and mobile are connected to the same Wi-Fi router. (2) Install EZCast app on your device. Please download the app from application market for your mobiles or visit https://www.ezcast.com/app to download EZCastapp for PC.
  • Page 14 Problems Solutions No electricity/can't power on 1. Check whether the power cord is connected properly. 2. Press the Power button for 3 seconds till you hear the "beeping" sound, and then release the button and wait for the projector to start up. Unable to screen mirroring 1.

  • Page 15: Warranty

    The warranty claim is only valid with proof of purchase and warranty card. 3. Register the warranty online to ensure your rights: Contact Information support@ezcast.com Note: The shipping fee to service center is at your own expense.
