Summary of Contents for Acoustical Systems UNI P2S

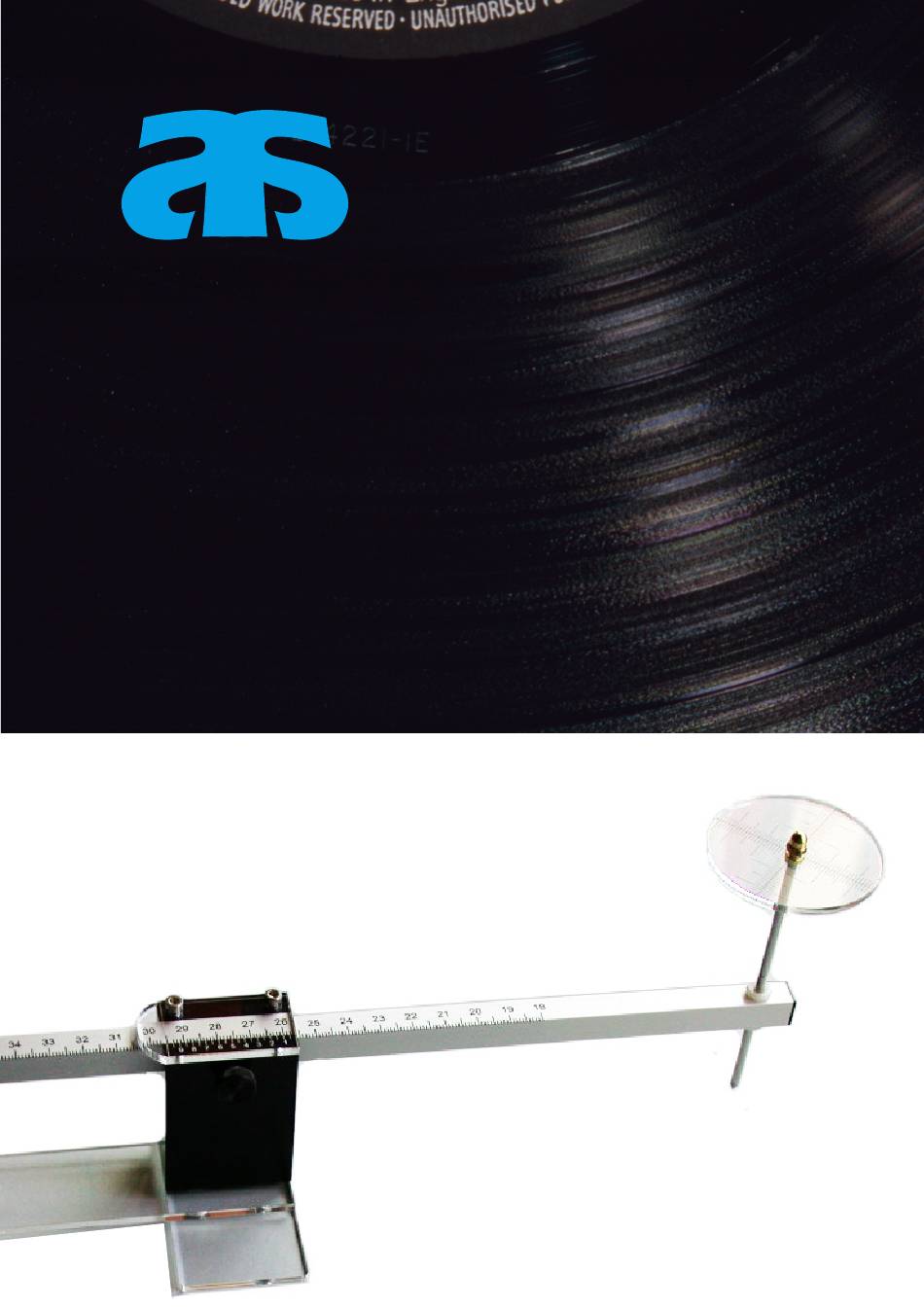

- Page 1 UNI P2S © Universal high-precision phono pivot-to-spindle - P2S direct measuring instrument owner’s manual...
- Page 2 DISCLAIMER Please use all parts with care. The use of the UNI-P2S is on your own risk. The manufacturer and the designer do not take any responsibility for possible damage or injury due to operate or handle the UNI-P2S or any of it’s parts. Keep out of reach of children !! General note: Technical data, minor design and specifications are subject to change...
- Page 3 A brief introduction This means you can use the UNI-P2S mounted The UNI-P2S is a high-precision and universal WHILE any of the above mentioned protractors versatile positioning and measuring instrument for are in use and thus checking mounting distance use with phono tonearms turntables. It allows “on-the-fly”...
- Page 4 Setup Step 1 Step 2 Select the spindle adapter which fits on your Place the selected tt-spindle adapter over the turn- turntable’s spindle WITHOUT play. This ensures table’s spindle. It should fit without any play. perfect center for the measuring. Step 3 Step 4 Place the “clamp-opening”...
- Page 5 Step 5 Step 6 Adjust the clearance underneath the acrylic arm, Slide the UNI-P2S into place in the direction of so that the acrylic arm is horizontal. the tonearm’s bearing house/pivot. Step 7 Do mount the long stainless steel positioning pin with the reticule either on top or pointing down- ward into the nylon tunnel.
- Page 6 Reading the vernier scale The UNI-P2S does feature a vernier scale to allow precise read-out of mounting distance with an accuracy of 5/100 mm. This vernier scale is running right to left - as does the metric scale with increasing distance of P2S. If you are unfamiliar with a vernier scale, please This is 295,00 mm P2S - suitable for a FR-66s.
- Page 7 Pin, Pen or Reticule Insert a pen Draw an arc You may use a 3 mm diameter pen which will fit You now may adjust height and draw and arc on into the 3 mm through hole when insert from the your armboard/plinth.
- Page 8 214,0 mm AS-309: 311,0 mm Pioneer/Exclusive: 269,5 mm SAEC 407: 221,0 mm 308: 235,0 mm manufactured and assembled in Germany 308L: 265,0 mm by acoustical systems Reed 3Q 9,5”: 223,0 mm email: info@acoustical-systems.com 10,5”: 251,6 mm www.acoustical-systems.com 12”: 295,6 mm...
