Microsoft Xbox 360 DPSN-10EB A Quick Start Manual

X16-79618-02
1111 Part No. X16-79618-02

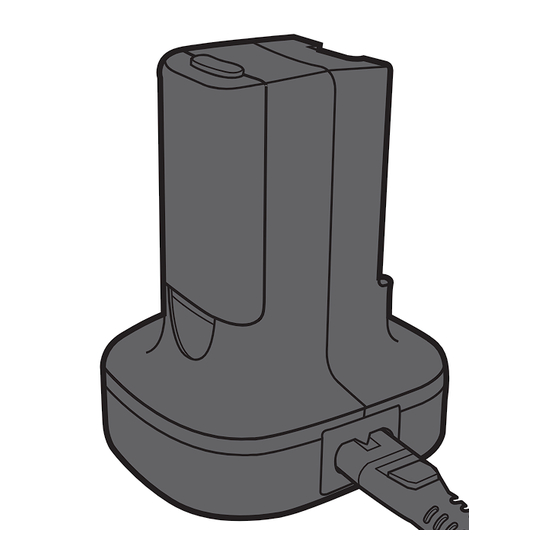

Xbox 360 Quick charge kit
Thanks for choosing the Xbox 360 Quick Charge Kit. Your Quick Charge Kit lets you
®
quickly recharge your Xbox 360 rechargeable battery packs with up to 40 hours of play
time for a fully charged battery pack. It is for use exclusively with the rechargeable
battery pack for the Xbox 360 video game and entertainment system. The Quick Charge
Kit contains a charger, a power cord, and a NiMH rechargeable battery pack.
!
WarNiNg
Before using this product, read this manual and the Xbox 360 console instructions for
important safety and health information. Keep all manuals for future reference. For
replacement manuals, visit www.xbox.com/support.
!
rechargeable Battery Safety
Only use Microsoft approved rechargeable battery packs, identified by the Xbox 360
Compatible logo, with your wireless controller and quick charge kit. Use of
unapproved battery packs may result in injury from burns, fire, or explosion.
Improper use of batteries may result in battery fluid leakage, overheating, or
explosion. Released battery fluid is corrosive and may be toxic. It can cause skin and
eye burns, and is harmful if swallowed. To reduce the risk of injury:
• Charge only with the Xbox 360 quick charger, the Xbox 360 Play & Charge Kit, or
another Microsoft approved charger.
• Keep batteries out of reach of children.
• Do not heat, open, puncture, mutilate, or dispose of batteries in fire.
• If a battery leaks, remove the battery, taking care to keep the leaked fluid from
touching your skin or clothes. If fluid from the battery comes into contact with skin
or clothes, flush skin with water immediately. Before inserting a new battery,
thoroughly clean the controller with a damp paper towel.
• Recycle or dispose of batteries in accordance with local and national disposal
regulations, including those governing the recovery and recycling of waste
electrical and electronic equipment (WEEE).
• Do not allow metal objects to touch the battery terminals; they can become hot and
cause burns. For example, do not carry the battery in a pocket with keys or coins.
!
electrical Safety
As with many other electrical devices, failure to take the following precautions can result
in serious injury or death from electric shock or fire or damage to the quick charger.
Select an appropriate power source for your quick charger:
• Use only the power cord that came with your Quick Charge Kit or that you received
from an authorised repair centre.
• Do not use non-standard power sources, such as generators or inverters, even if
the voltage and frequency appear acceptable. Only use AC power provided by a
standard wall outlet.
To avoid damaging the power cord:
• Protect the power cord from being walked on.
• Protect the cord from being pinched or sharply bent, particularly where it connects
to the power outlet and the quick charger.
• Do not jerk, knot, sharply bend, or otherwise abuse the power cord.
• Do not expose the power cord to sources of heat.
• Keep children and pets away from the power cord. Do not allow them to bite or
chew on it.
• When disconnecting the power cord, pull on the plug—do not pull on the cord.
If the power cord becomes damaged in any way, stop using it immediately and
contact Xbox Customer Support for a replacement.
Unplug your quick charger during lightning storms or when unused for long periods
of time.
Connect the power cord by completely inserting the power cord connector into the
charger until it stops.
uSe YOur Quick charge kit
charge the Battery Pack
Charge your Xbox 360 Rechargeable Battery Pack before first use and whenever it is depleted.
To charge the battery pack using the quick charger:
Insert the rechargeable battery pack into either battery compartment on the quick
1
charger and push in to lock.
NOte
To avoid pinching your fingers when inserting, push only on the flat surface of the
battery pack.
Connect the quick charger to a wall outlet with the quick charger power cord.
2
The corresponding light on the quick charger will glow red as your battery pack charges.
Xbox 360 快速充電套件
感謝您購買 Xbox 360 快速充電套件。快速充電套件可快速為您的 Xbox 360 可充式電池組充
®
飽電力。 Xbox 360 快速充電套件僅可與適用於 Xbox 360 視訊遊戲家庭娛樂系統的 Xbox 360
可充式電池組搭配使用。快速充電套件含有一個充電器、電源線和可充電式鎳氫電池組。
!
警告
在使用此產品前，請閱讀本手冊與 Xbox 360 主幾手冊，以取得重要的安全和健康
資訊。請妥善保存所有手冊，以供未來參考之用如需更換手冊，請至 www.xbox.com/
support。
亞太國家/地區專用 (澳大利亞除外)
有限瑕疵擔保網址 www.xbox.com/warranty
本產品的廢棄處理需依照當地和全國廢棄物處理規定 (如果適用)，包括管理廢棄電子電機
設備 (WEEE) 的再生與回收的相關規定。
!
可充式電池的安全
請認明具有與 Xbox 360 相容商標且經過 Microsoft 核准的可充式電池組，來與您的
無線控制器和快速充電套件搭配使用。使用未經核淮的電池組可能導致灼傷、火災或
爆炸等意外危險。電池使用不當可能會導致電池液體外洩、過熱或爆炸。外洩的電池
When the light switches to green, the battery pack is fully charged and can be removed
for use with your wireless controller.
NOteS
• Do not touch quick charger or battery pack terminals with your fingers or allow metal
parts to touch them. Doing so may damage them.
• Typically, fully charging can take up to two hours for one new battery pack or four
hours for two new battery packs using the Xbox 360 Quick Charge Kit. Actual charge
times vary depending on the state or condition of the battery pack being charged.
• The battery pack or the charger may become warm during charging or use. This is
normal and does not indicate a problem with the battery pack.
• If the battery pack is unused for a long time, it may lose its charge. If this occurs,
simply recharge the battery pack normally.
• At first, or after storage for a long period of time, it can take from three to five full
charge cycles for the battery pack to achieve its full capacity.
• The battery pack has a limited life. The amount of play time will decrease as the
battery pack ages or after many recharge cycles. The battery pack needs to be
replaced when play time becomes too short or when it can no longer be charged.
clean Your Battery Pack
If it is necessary to clean the battery contacts, use only a dry cloth. Water or chemicals
can damage the contacts.
trOuBleShOOtiNg
If you encounter problems, try the possible solutions provided below.
charge light Doesn't glow
Make sure the battery pack is completely locked in to the charger battery compartment.
If the battery pack is completely locked in to the compartment and the light does not
glow green or red, the battery pack or charger may be defective.
NOte
Damaged battery packs will not charge and could harm your controller. Battery packs
that have been crushed, immersed in liquids, or exposed to intense heat may be
damaged beyond use and should be disposed of in accordance with local laws.
Battery Pack charges Slowly
Very depleted rechargeable battery packs can take longer to charge.
Battery Pack charge Depletes Quickly
The amount of play time will decrease as the battery pack ages or after many recharge
cycles. The battery pack should be replaced when play time becomes unacceptably short
or when it can no longer be charged.
if YOu NeeD MOre helP
For answers to common questions, troubleshooting steps, and Xbox Customer Support
contact information, visit www.xbox.com/support.
Do not take your Xbox 360 console or its accessories to your retailer for repair. Please
visit www.xbox.com/support for troubleshooting and service information.
!
Do Not attempt repairs
Do not attempt to take apart, service, or modify the Xbox 360 console, power supply,
or its accessories in any way. Doing so could present the risk of serious injury or death
from electric shock or fire, and it will void your Express Warranty.
Disposal of Waste Batteries and electrical & electronic equipment
This symbol on the product or its batteries or its packaging means that this
product and any batteries it contains must not be disposed of with your
household waste. Instead, it is your responsibility to hand this over to an
applicable collection point for the recycling of batteries and electrical and
electronic equipment. This separate collection and recycling will help to conserve natural
resources and prevent potential negative consequences for human health and the
environment due to the possible presence of hazardous substances in batteries and
electrical and electronic equipment, which could be caused by inappropriate disposal. For
more information about where to drop off your batteries and electrical and electronic
waste, please contact your local city/municipality office, your household waste disposal
service, or the shop where you purchased this product.
This product contains NiMH batteries.
This product is for use with NRTL-listed (UL, CSA, ETL, etc.) and/or IEC/EN 60950
compliant (CE marked) Information Technology equipment.
important Battery information
Waste batteries, please recycle.
fOr cuStOMerS iN taiWaN
Product information
Product name: Xbox 360 Quick Charge Kit
Model no.: DPSN-10EB A
Designated voltage: 5 VDC
Manufacture year: 2010
Manufacture number: 82-2-531-4839
Country of origin: China
Manufacturer name: Microsoft Corporation
Importer name: Synnex Technology International
Importer's Address: 4th Fl. 75, Section 3, Min-Sheng E. Rd., Taipei 104
Importer's number: (02) 2506-3320
cOPYright
Information in this document, including URL and other Internet Web site references, is subject to change
without notice. Unless otherwise noted, the example companies, organisations, products, domain names,
e-mail addresses, logos, people, places and events depicted herein are fictitious, and no association with
any real company, organisation, product, domain name, e-mail address, logo, person, place or event is
intended or should be inferred. Complying with all applicable copyright laws is the responsibility of the
user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in
or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical,
photocopying, recording, or otherwise), or for any purpose, without the express written permission of
Microsoft Corporation.
Microsoft may have patents, patent applications, trademarks, copyrights, or other intellectual property
rights covering subject matter in this document. Except as expressly provided in any written license
agreement from Microsoft, the furnishing of this document does not give you any license to these
patents, trademarks, copyrights, or other intellectual property.
© 2011 Microsoft Corporation. All rights reserved.
Microsoft, Xbox, Xbox 360, Xbox LIVE, the Xbox logos, and the Xbox LIVE logo are trademarks of the
Microsoft group of companies.
液具有腐蝕性而且可能具有毒性有毒。若其接觸到皮膚與眼睛將會導致灼傷，如果吞
嚥也會導致傷害。若要降低傷害的風險：
•僅使用 Xbox 360 快速充電器、Xbox 360 同步充電套件或其它 Microsoft 核准的充
電器進行充電。
•請將電池放置於孩童拿不到的地方。
•請勿加熱、開啟、穿刺、拆解或將電池置於火中。
•若電池的電解液漏出，請立即將電池取出，並避免您的皮膚或衣物接觸到外洩的電
解液。若皮膚或衣服接觸到電池的化學液體，請立即用清水加以沖洗。在放入新電
池之前，請用濕紙巾將控制器確實清理乾淨並待風乾。
•電池的回收與廢棄處理需依照當地和全國廢棄物處理規定，包括管理廢棄電子電機
設備 (WEEE) 的再生與回收的相關規定。
•請勿讓金屬物品觸碰電池終端，這會導致它們變燙並可能會燃燒。例如，勿將電池
放在有鑰匙或銅板的口袋中。
!
電器安全性
如同許多其他電器裝置，若不採取下列預防措施將會引起電擊或火苗而導致嚴重傷害
或死亡，或對快速充電器造成損壞 。
為您的快速充電器選取適當的電源：
•只使用快速充電套件隨附或授權維修中心所提供的電源線。
•即使電壓與頻率一致，也請勿使用非標準的電源，像是發電機或換流器。只使用標
準電源插座的 AC 電源。
若要避免對電源線造成損壞：
•保護電源線避免被踩到。
•保護電源線讓它不被夾住或嚴重彎折，尤其是在它們連接到電源插座及快速充電
器處。
•勿讓電源線被拉扯、打結、嚴重彎曲或以其他不正當方式對待。
•勿讓電源線暴露在熱源下。
•讓兒童與寵物遠離電源線，勿讓他們啃咬電源線。
•中斷電源線連接時，請拉住插頭而非拉扯電源線。
如果電源線損壞，請立即停止使用，並與 Xbox 客戶支援部門聯絡以更換之。
在有閃電的風暴，或長時間不使用時，請拔除快速充電器的插頭。
將電源連接器完全插入充電器中，以連接電源線。
Q uick charge kit
快速充電套件
급속 충전 키트
