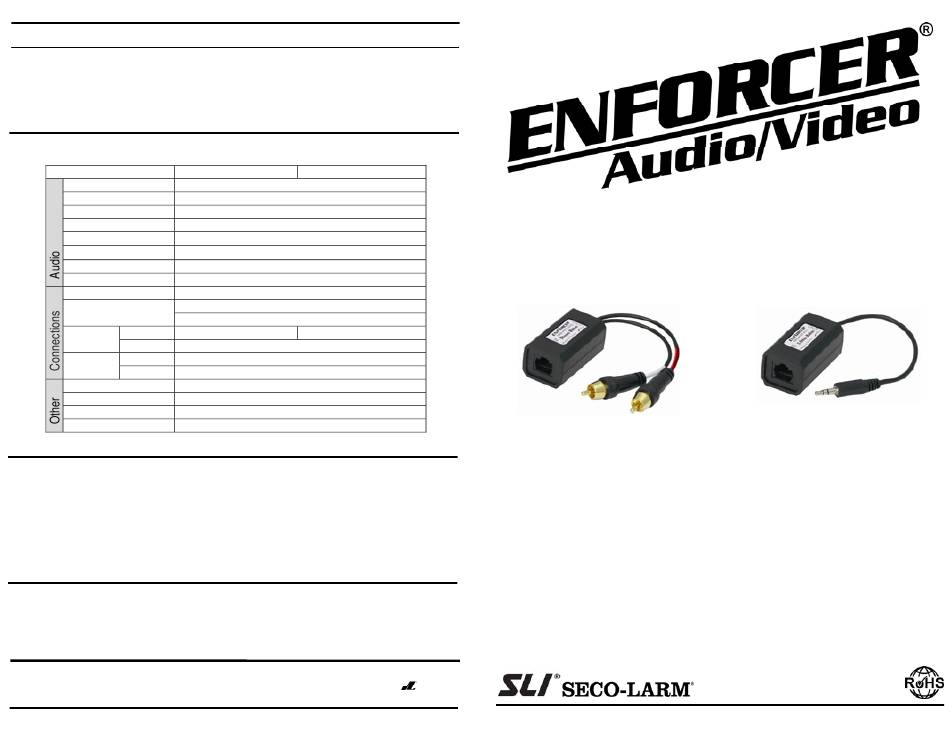

SLI ENFORCER MAE-P317-01Q Manual

ENFORCER PASSIVE STEREO BALUN
Troubleshooting:
No sound • Check to make sure polarity is correct.
• Make sure the maximum distance of the UTP does not exceed the
maximum range of the balun.
• Make sure all connections are snugly in place.
• Check to make sure RJ-45 connector is crimped correctly and wired
according to T568B wiring standard.
Specifications:
Signal Type
Max. range
Bandwidth
Maximum input
Insertion loss
Return loss
Common mode rejection
Power
Wire type
Wire category
In
Connectors
Out
In
Impedance
Out
Dimensions
Max. humidity
Temperature Range
Case
WARRANTY This SECO-LARM product is warranted against defects in material and workmanship while used in normal
service for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM's obligation is
limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect,
repair, or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines
that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser's exclusive remedy, shall be limited to replacement or repair only,
at SECO-LARM's option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential
personal or property damages of any kind to the purchaser or anyone else.
NOTICE: The information and specifications printed in this manual are current at the time of publication. However, the
SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right
to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2009 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of SECO-LARM.
SECO-LARM
®
U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
4
MAE-P317-01Q MAE-P337-01Q
Analog stereo
2,500' (760m)
10Hz to 50KHz ±3dB
1Vpp
≤ 1dB
≥ 15dB over the frequency range
Greater than 40dB
No power required for audio
UTP (unshielded twisted pair)
20 - 24 AWG @ screwless terminal blocks
Cat2 or better, Cat5e ideal, Cat6 improves range
2 (two) RCA plugs 3.5mm plug
RJ-45 jack
600 ohms
100 ohms
2 1 / " x 1 1 / " x 1" (54 x 29 x 25 mm)
8 8
95%
32° ~ 131° F (0° ~ 55° C)
ABS plastic
Website: www.seco-larm.com
@
E-mail: sales seco-larm.com
SECO-LARM U.S.A., Inc.
MAE-P317-01Q
Analog Stereo Balun
The ENFORCER Passive Stereo Baluns are the quick, low-cost way to connect audio devices at
greater distances than traditional audio cabling methods. The stereo baluns work in pairs to allow
analog audio signals to be transmitted over low-cost Cat5e/6 unshielded twisted pair (UTP) cable.
• Passive operation – No external power
required
• Uses low-cost Cat5e/6 cable instead of costly
coax cables
• Small size for easy installation
PITLW2
Mi-MAE-P3x7-01Q_0902.docx
NOTE: Products with a model number that ends with "Q" or have a round green "Q" sticker represent RoHs compliant products.
MANUAL
Passive Stereo Baluns
MAE-P337-01Q
3.5mm Stereo Balun
• High immunity from interference – Built-in
impedance coupled device and noise filter
• Gold-plated connector for longer life and better
reliability (MAE-P317-01Q only)
• Limited lifetime warranty
