Standard S3 Installation Instructions

Led outdoor large flood light 400 w
Hide thumbs
1
2

Advertisement

Table of Contents

Installation Instructions
S3

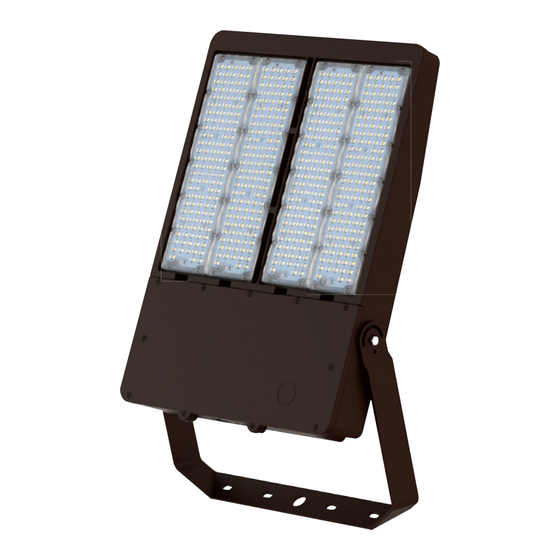

LED Outdoor Large Flood Light
400 W

400 W Mounting Options

IMPORTANT: READ ALL INSTRUCTIONS BEFORE THE INSTALLATION.

CAUTION
An internal power-factor-corrected switch-made supply allows this luminaire to be used from any nominal
100-277 V & 277-480 V, 50/60 Hz AC supply without any variation in light output.
NOTE: SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING
Risk of fire or electric shock. The installation should be performed only by a qualified electrician in accordance
with the National Electrical Code and relevant local codes. This product must be installed in full accordance
with applicable electrical and building codes. This fixture is for outdoor use and should not be used in areas with
limited ventilation or high ambient temperatures.

WARNING - TO AVOID ELECTRIC SHOCK

• Be certain electrical power is OFF before and during installation and maintenance.
• Luminaire must be connected to a wiring system with an equipment-grounding conductor.

WARNING - TO AVOID EXPLOSION

• Make sure the supply voltage is the same as the rated luminaire voltage.
• Do not install where marked operating temperatures exceed the ignition temperature
of the hazardous atmosphere.
• Do not operate in ambient temperatures above those indicated on the luminaire.
• Keep lens tightly closed when in operation.
• For supply connections use wire rated for at least 90°C.
