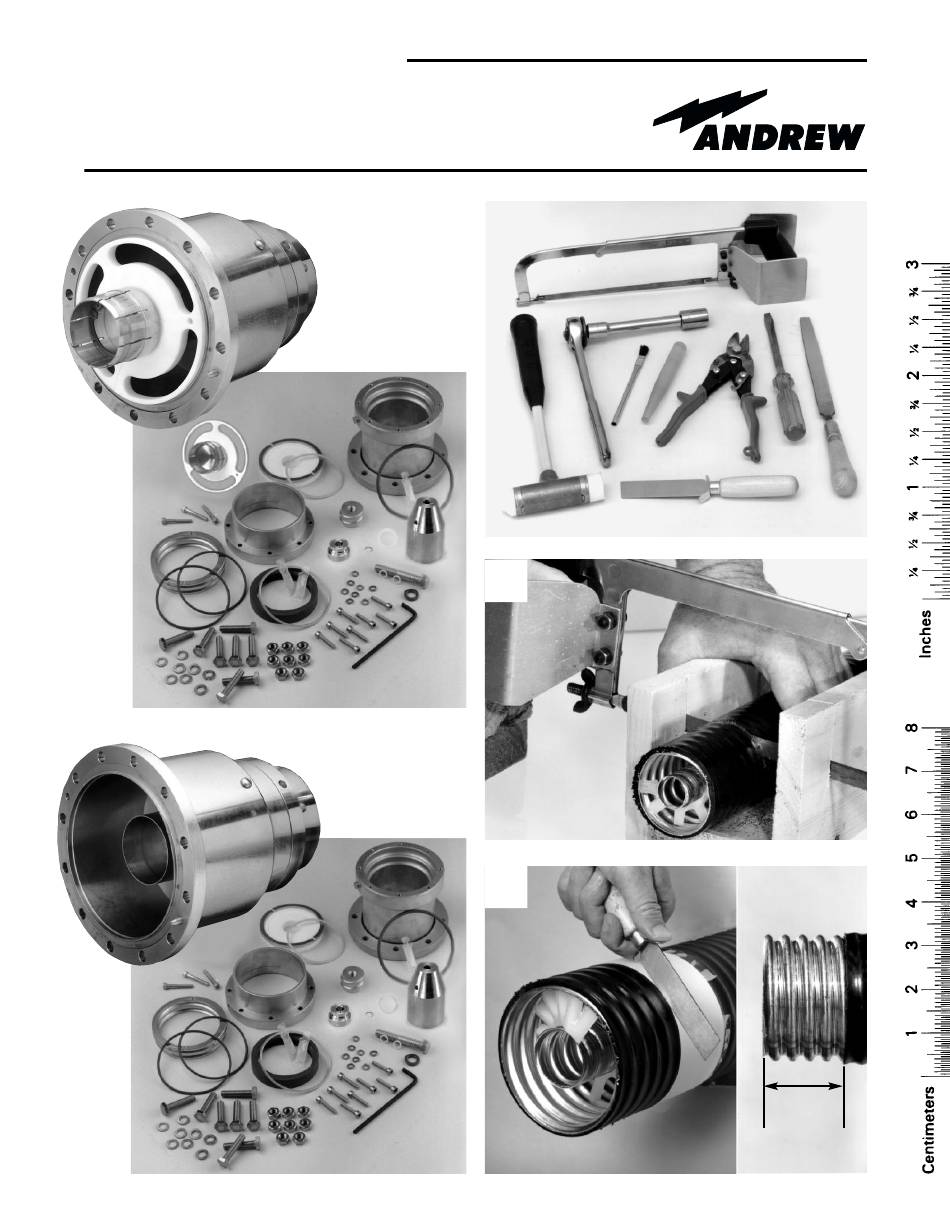

- Page 1 Bulletin 237343 Installation Instructions Revision A Connectors ® for HELIAX HJ11-50 Coaxial Cable 3/4" 6-1/8" EIA-flange, male 6-1/8" EIA-flange, female 2-1/8" ± 1/8" (54 ± 3 mm)
- Page 2 Screw helix ring onto outer conductor and against gasket. Slots must be at cable end. Remove burrs Remove part Remove all of insulator copper particles Cut slits in outer conductor 1/4" (6.3 mm) at 3/16" (5 mm) intervals Slide clamping ring onto cable Tap outer conductor against inner edge of helix ring Tap outer conductor...
- Page 3 Trim conductor tabs that extend beyond edge of helix ring Position stub to align with outer conductor Bend tabs over Bend tab into slot to stub slots hold stub in place Screw stub 1/2" (12.7 mm) into inner conductor Form tabs to stub Cut 12 V-notches 45°...
- Page 4 Notice The installation, maintenance, or removal of antenna systems requires qualified, experienced personnel. Want Andrew to attach connectors for you? Call us. Skilled personnel at Andrew can attach connectors for Andrew installation instructions are written for such you, quickly and economically. Every factory-made personnel.
