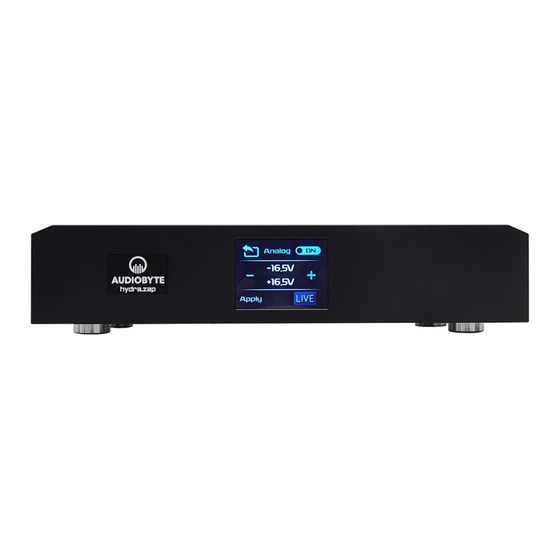

Hydra Zap Power Supply

Owner's Manual - English

Table of Contents

Need help?

Do you have a question about the Hydra Zap and is the answer not in the manual?

Questions and answers

Summary of Contents for AUDIOBYTE Hydra Zap

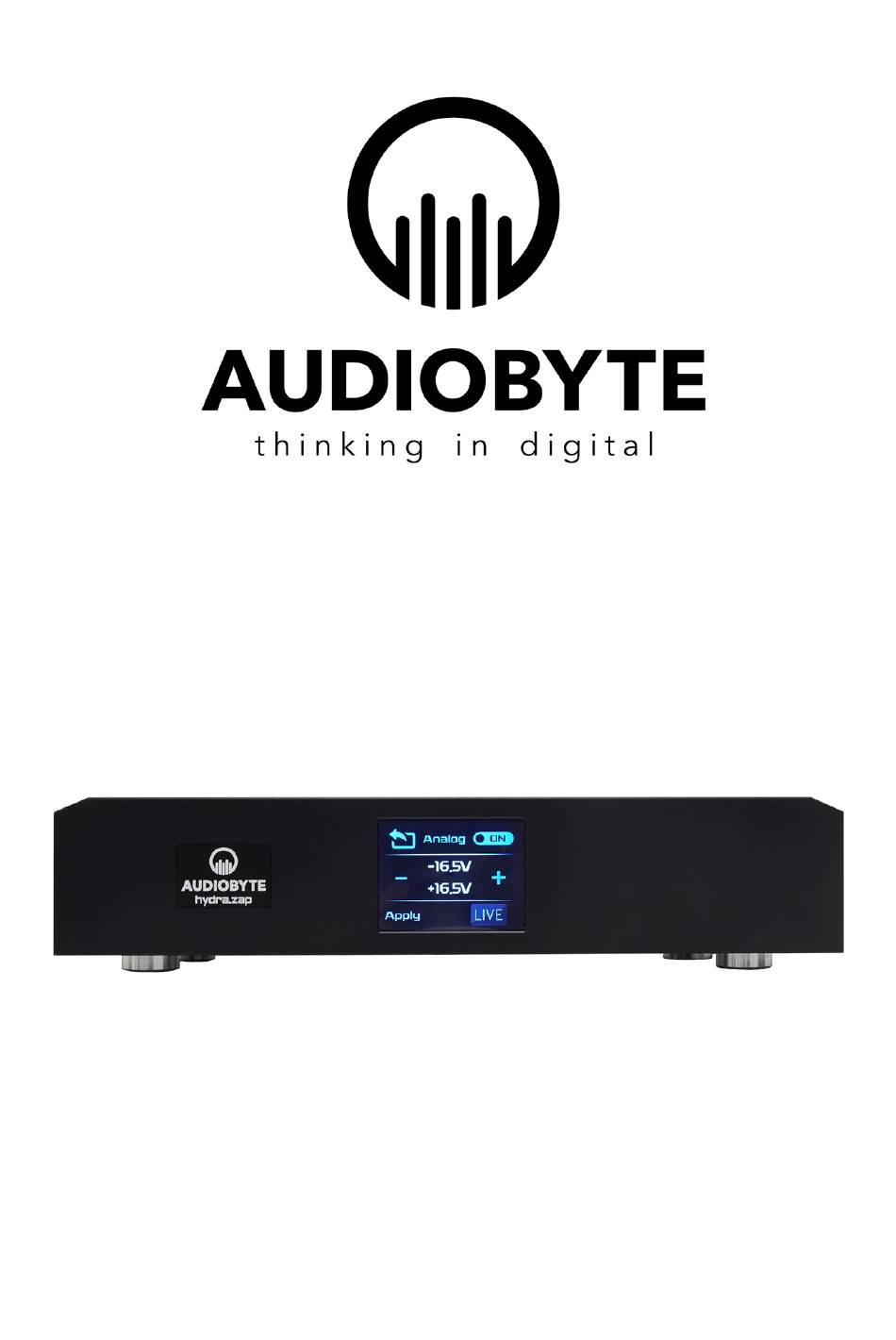

Page 1 Hydra Zap Power Supply Owner’s Manual - English...
Page 2: Table Of Contents
AUDIOBYTE Hydra ZAP Owner’s Manual Table of Contents About this document ......................2 Package content ........................3 Safety Precautions ......................... 3 Functional Description ......................4 Firmware Update ........................8 Electrical Specifications ......................9 Audiobyte Limited Warranty ..................... 10 Document version and modifications description ............13...
Page 3: About This Document
AUDIOBYTE Hydra ZAP Owner’s Manual About this document This document is the user manual for the Audiobyte Hydra ZAP ultra linear power supply. It contains a basic overview of the device’s internal architecture, specific handling details, functional description, safety precautions and product warranty details.
Page 4: Package Content
5) Use Audiobyte branded or Audiobyte approved supply cables to connect Hydra VOX to Hydra ZAP; 6) Before plugging any supply cables in the device, make sure the Hydra ZAP is in standby. 7) Do not move the device while operational.
Page 5: Functional Description
Please search for the Audiobyte Hydra Remote app on Google Play/App Store. When the mains cable is attached to the Hydra ZAP, the unit is, by default, in stand-by. In this mode, the screen will have a low blacklight level and will display a red Audiobyte logo.
Page 6 Go to the appropriate control screen and turn it on. • on the bottom of the screen, the Audiobyte Hydra VOX/HUB connection status is shown. If the load device is detected on the CAN interface, the correspondent radio button is marked with a green dot, as depicted in the image above.
Page 7 ON, if an Audiobyte device (Hydra VOX/HUB) is connected to the Hydra ZAP, the supply control is taken over by the ZAP and the user cannot turn ON or OFF any of the supplies, individually. In this case, the supplies can only be turned off by putting the Hydra ZAP in stand-by mode from the home screen.
Page 8 ZAP, the supply control is taken over by the ZAP and the user cannot turn ON or OFF any of the supplies, individually. In this case, the supplies can only be turned off by putting the Hydra ZAP in stand-by mode from the home screen.
Page 9: Firmware Update
Store. Installing this app will give you the possibility to control the Audiobyte Hydra VOX and Hydra HUB devices as well. If app has connected successfully to the Hydra ZAP, the app version can be seen in the BT App Ver field of the system information screen.
Page 10: Electrical Specifications
AUDIOBYTE Hydra ZAP Owner’s Manual Electrical Specifications Supply Typ Max Units Digital(DC) Reference(DC) 7.75 8.25 Analog(DC, adjustable, negative and positive) VOX or HUB not connected ±10 ±20 VOX or HUB connected ±16.5 18 19.5...
Page 11: Audiobyte Limited Warranty
Audiobyte is not liable for any damage to or least functionally equivalent most loss of any programs, data, or other...
Page 12 Audiobyte Authorized Service Location, (c)to a product or a part that has been modified without the written permission of Audiobyte, or (d)if any Audiobyte serial number has been removed or defaced, or (e) product, accessories or consumables sold “AS IS”...
Page 13 Hydra ZAP Owner’s Manual REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER. AUDIOBYTE SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
Page 14: Document Version And Modifications Description
AUDIOBYTE Hydra VOX DAC Owner’s Manual Document version and modifications description Version Date Description 1.00 03-03-2020 Initial release 1.01 04-02-2020 Modified fonts, added Rockna and Audiobyte contact information, rearranged screen description chapter, added electrical specifications table...
