Summary of Contents for Gardenline FLX-TBS-1

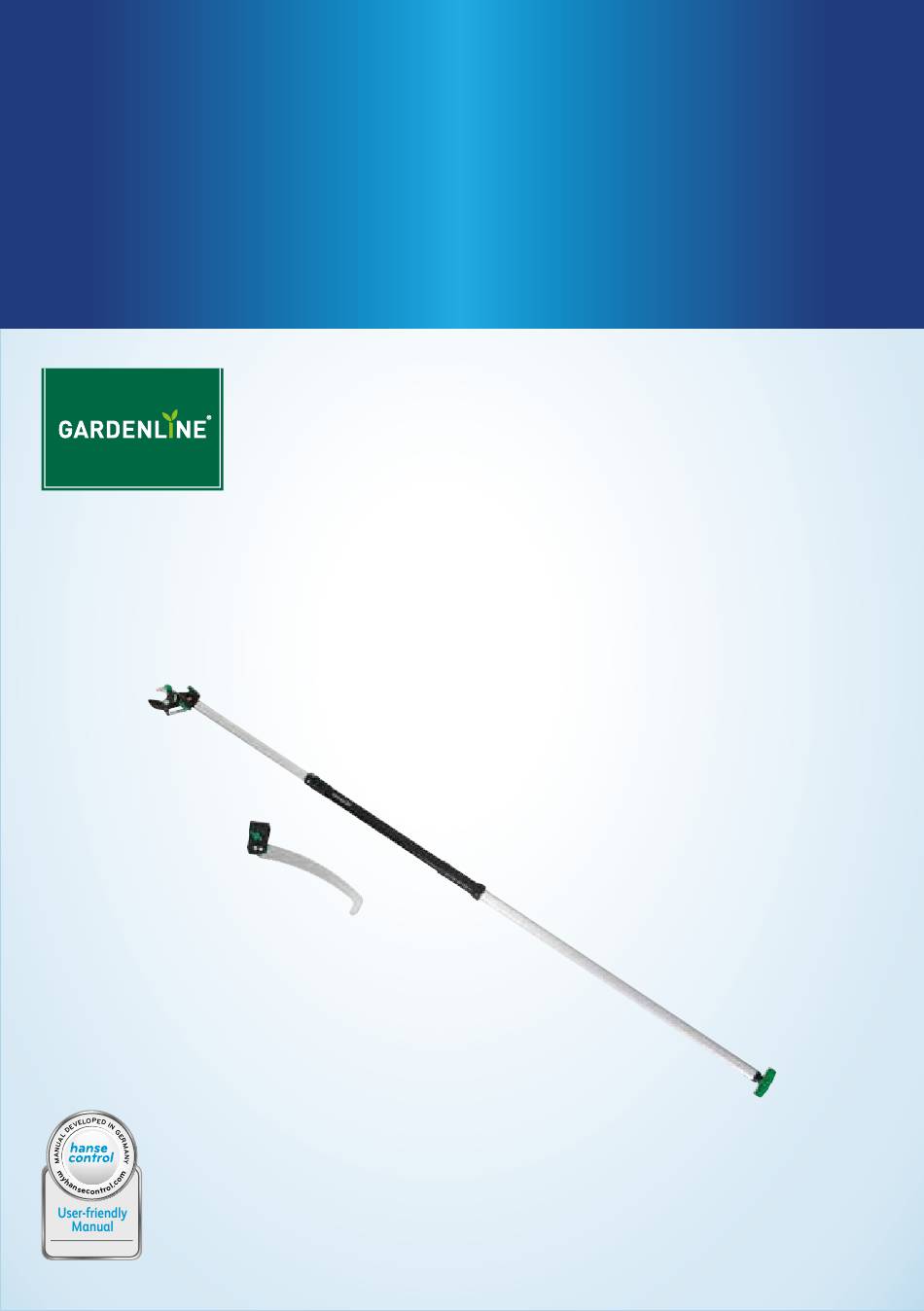

- Page 1 User Manual TELESCOPIC TREE PRUNER ID: #05007...
-
Page 2: Table Of Contents
Contents Overview ................3 Use ..................4 Pack contents/device parts ..........6 General information ............7 Reading and storing the user manual ........7 Explanation of symbols ............7 Safety ...................9 Proper use ................. 9 Safety instructions ..............9 Checking the tree pruner and pack contents ....11 Preparing the tree pruner ..........12 Setting the clippers .............. - Page 5 45°...
-
Page 6: Pack Contents/Device Parts
Pack contents/device parts Saw blade (with bracket) Wing nut (saw blade) Telescopic rod Safety lock (telescopic rod) Grip plate T-handle Protective cover (saw blade) Protective cover (clippers) Clippers Wing nut (clippers) Tension cable... -
Page 7: General Information
General information General information Reading and storing the user manual This user manual accompanies this telescopic tree pruner (hereafter re- ferred to as the “tree pruner”). It contains important information about safety and use. Before using the tree pruner, please read through the user manual care- fully. - Page 8 General information Read the user manual and safety instructions. Wear head and eye protection. Wear protective gloves. Wear non-slip shoes and tight-fitting clothing. Wear suitable, tight-fitting clothing. Danger of electric shock! Do not store the tree pruner near high-volt- age lines, electric cables or electric fences. Maintain a distance of at least 10 m from high-voltage lines.
-
Page 9: Safety
Safety Safety Proper use The tree pruner is only designed to cut fresh wood with a diameter of up to 28 mm. For branches with a diameter greater than 28 mm or for dry, hard wood, use the saw blade supplied. The tree pruner is intended for private use only and is not suitable for commercial purposes, e.g. - Page 10 Safety − Make sure before each use that the safety lock of the telescopic rod is closed to avoid unintentional retraction or extension of the telescopic rod. − When the tree pruner is being transported or is not being used, engage the safety lock, fold the clippers all the way down and follow the instructions in the chapters "Transport"...
-
Page 11: Checking The Tree Pruner And Pack Contents
Checking the tree pruner and pack contents NOTE! Risk of damage! Improper handling of the tree pruner may damage it. − Use the clippers to cut fresh wood only, with a maximum diameter of 28 mm. − Use the saw blade to cut branches with a diameter greater than 28 mm or for dry, hard wood. -
Page 12: Preparing The Tree Pruner
Preparing the tree pruner Preparing the tree pruner Setting the clippers WARNING! Risk of injury! The blades of the tree pruner are sharp. You could sustain cuts or injuries when setting the clippers. − Always wear protective gloves when setting the clippers and working with the tree pruner. -
Page 13: Setting The Telescopic Rod
Preparing the tree pruner If you would like to use the saw blade , first attach it to the telescopic rod follows: 1. Loosen the wing nut of the saw blade by turning it anticlockwise. 2. Attach the saw blade bracket to the telescopic rod (see Fig. D). 3. -
Page 14: Using The Tree Pruner
Using the tree pruner Using the tree pruner The tree pruner can be used either with the clippers or with the saw blade With the tree pruner you can: • cut off dead or diseased branches. • prune thin branches that obviously carry no blossom or fruit. Those branches are mainly located in the shaded areas of the plant, directly on the trunk and in the middle;... -
Page 15: Sawing
Using the tree pruner 4. Remove the protective cover from the clippers 5. Pull the T-handle in order to cut. 6. Return the T-handle to its original position in order to re-open the clippers. Sawing Use the saw blade to cut branches with a diameter greater than 28 mm or for dry, hard wood. -
Page 16: Cleaning And Maintenance
Cleaning and maintenance Cleaning and maintenance NOTE! Risk of damage! Improper handling of the tree pruner may damage it. − Never use aggressive cleaners, brushes with metal or nylon bristles, or sharp or metallic cleaning utensils such as knives, hard scrapers and similar items. They could damage the sur- faces. -
Page 17: Technical Data
Technical data Technical data Product code: 97104 Model: FLX-TBS-1 Telescopic rod: 2.29 m to 3.63 m Clippers: rotatable up to 180° Saw blade: detachable As our products undergo continual development and improvement, technical chang- es and changes to the product design are possible. -
Page 18: Warranty Details
Telescopic Tree Pruner Warranty Details REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. -
Page 19: Repair And Refurbished Goods Or Parts Notice
Telescopic Tree Pruner Repair and Refurbished Goods or Parts Notice REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games... - Page 20 Customer Service Hotline. Made in China GARDENLINE® is a registered trademark of ALDI Stores DISTRIBUTED BY: ALDI STORES 1 SARGENTS ROAD MINCHINBURY NSW 2770 www.aldi.com.au...
