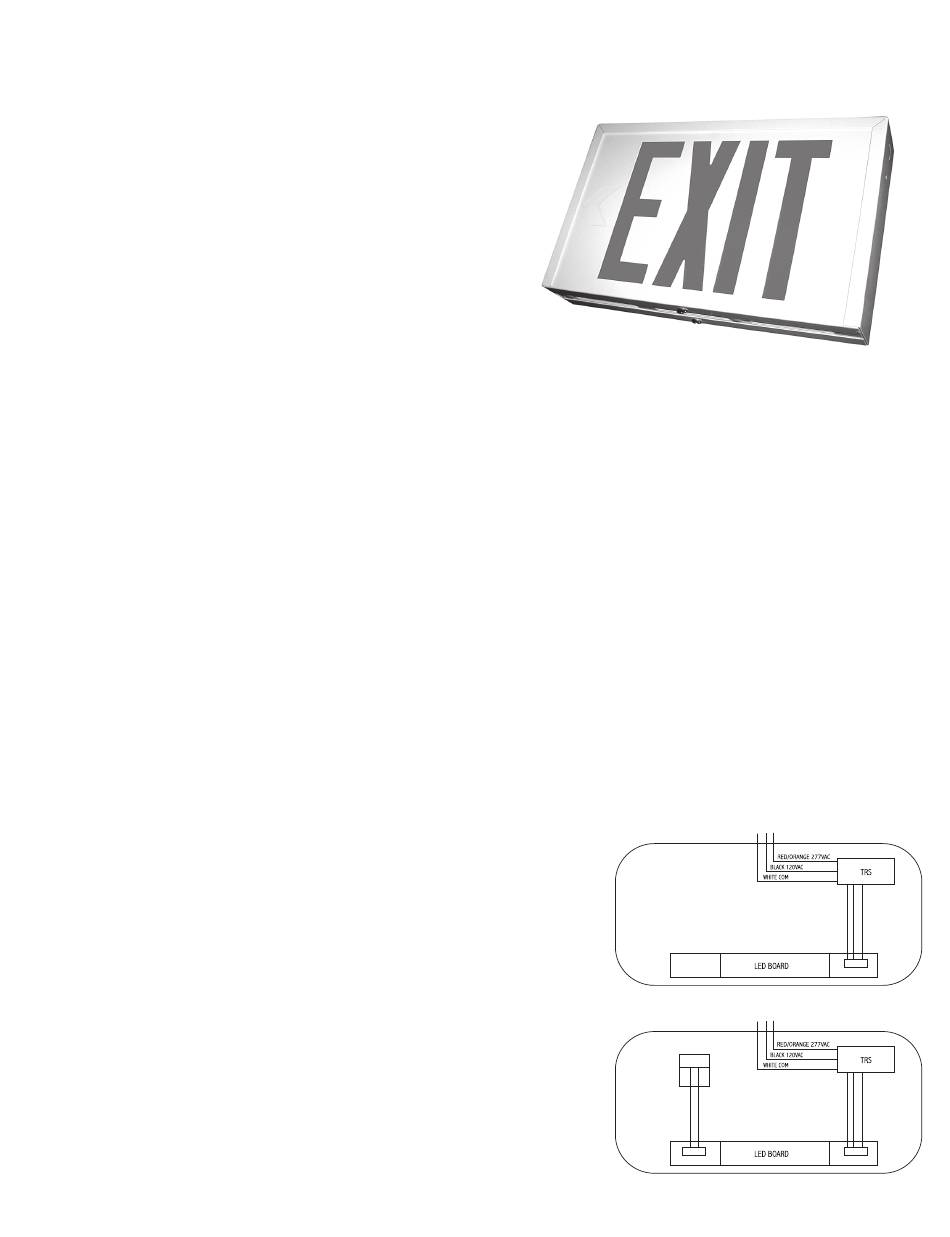

INSTALLATION INSTRUCTIONS–STEEL LED EXIT SIGN
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
IMPORTANT SAFEGUARDS: When using electrical equipment,
basic safety precautions should always be followed, including
the following:
1. Do not use outdoors.
2. Do not let power supply cords touch hot surfaces.
3. Do not mount near gas or electrical heaters.
4. Equipment should be mounted in locations and at heights
where it will not readily be subjected to tampering by
unauthorized personnel.
5. Use caution when servicing batteries–when applicable. Battery acid can cause burns to skin and eyes. If acid
is spilled on skin or eyes, flush acid with fresh water and contact a physician immediately.
6. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition. Any
modification or use of non-original components will void the warranty and product liability.
7. Do not use this equipment for other than intended use.
8. Servicing of this equipment should be performed by qualified service personnel only.
9. Disconnect AC power supply before servicing.
10. Unpack and check for concealed transit damage.
11. Report any transit damage to delivering carrier and file claim.
SAVE THESE INSTRUCTIONS!
WARNING:
MAKE SURE THAT POWER IS OFF BEFORE MAKING ANY ELECTRICAL CONNECTIONS!
• WHITE:
Return for 120VAC or 277VAC wiring
• BLACK:
Hot lead for 120VAC wiring
• RED/ORANGE:
1. Make sure that all wires are carefully tucked
away from the cavity behind the plastic inset.
2. Plug the mating connector of the battery to the PC board–when applicable.
3. Unused wires must be capped using enclosed wire nuts.
Hot lead for 277VAC wiring

WIRING DIAGRAMS:

AC ONLY
BATTERY BACKUP
BAT
PAGE 1 OF 2
