Summary of Contents for DGYSM H1
- Page 1 Smart Siren V1.0 WIFI SMART SIREN USER MANUAL Android / iOS Please read this manual carefully before use.

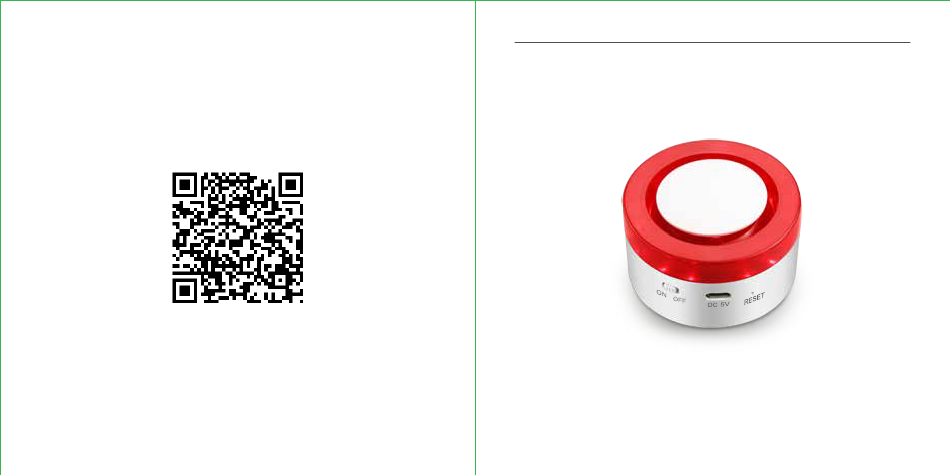

- Page 2 Smart Siren V1.0 Smart Siren V1.0 Features Download the app and register ● Based on the TUYA smart home platform, work with most of the TUYA Search for “ TuyaSmart ” or scan the QR code below to download the smart based smart products.
- Page 3 Smart Siren V1.0 Smart Siren V1.0 How to connect WiFi network.#1: “Default mode” 16:07 Home Select type of device ① Open the APP homepage, press “+” in the upper right corner to add Cloudy devices → select “ALL devices” → select “Alarm system” 21.0 ℃...
- Page 4 Smart Siren V1.0 Smart Siren V1.0 ② Re-open the smart siren switch, re-connect the power, the indicator ③ “Comfirm indicator quickly blink” → Enter WiFI password (2.4G WiFi flashes quickly, ready to connect WiFi. only) → OK 16:07 16:07 Add Device All devices AP Mode Add Device...
- Page 5 Smart Siren V1.0 Smart Siren V1.0 How to connect WIFI network, #2: “compatibility mode” 16:07 Home Select type of device If the default way to connect WIFI is unsuccessful, you can select “AP Mode”. Cloudy 21.0 ℃ Good Good Outdoor Temp Outdoor PM2.5 Outdoor AQI ZigBee...
- Page 6 Smart Siren V1.0 Smart Siren V1.0 ② Click on “ AP Mode ” at the top right of the app. ③ Re-open the smart siren switch, re-connect the power, the indicator light flashes quickly, press and hold the RESET button for 5 seconds, the indicator light flashes slowly, ready to connect.
- Page 7 Smart Siren V1.0 Smart Siren V1.0 ④ “ Comfirm indicator slowly blink ” → Enter the network password ⑤ Find “ SmartLife-xxx ” in the wifi list of your mobile and click Connect (2.4G WiFi only) → OK → Go connect. →...
- Page 8 Smart Siren V1.0 Smart Siren V1.0 WiFi connection notes: Add detectors and remotes: Method 1:Add detectors and remotes via APP. 1．Does not support 5G router.. ① Click on the APP homepage “ accessories ” → select “ The detector 2． If the above two way connection both fail, please try to restart ”...
- Page 9 Smart Siren V1.0 Smart Siren V1.0 Edit the accessory name: ② Click “ OK ” → smart siren light keep on → accessories send signals → smart siren light flash 3 times, adding is successful. In order to make it easier to distinguish different alarm events, you can edit the accessories’name (within 24 characters).
-
Page 10: Installation Note
Smart Siren V1.0 Smart Siren V1.0 Installation note: Install the Door Detector： Install the siren: Move the bracket to ( ) direction,take out the bracket and fix it with screw,install the siren body to the bracket and rotate it to ( direction. -
Page 11: Install The Pir Motion Detector
Smart Siren V1.0 Smart Siren V1.0 To avoid the false alarm, please pay attention to the following points in ④ The transmit distance of the detectors is less than 80meters in the open area. Please test the distance before installing. The obstacles will stalling the PIR motion detector: change the transmitting distance. -
Page 12: Specifications
Smart Siren V1.0 Specifications: Indicator light keep flashing: not connect to WiFi Arm: alarm with soud and light flash Home Arm: only light flash to alarm Disarm: only SOS alarm available Remote controls: max 8 Detectors: max 24 Volume: high / medium / low Beep time: 1-180 seconds adjustable Timing control: arm / home arm / disarm Accessories frequency: 433Mhz (can be customized to any frequency...
