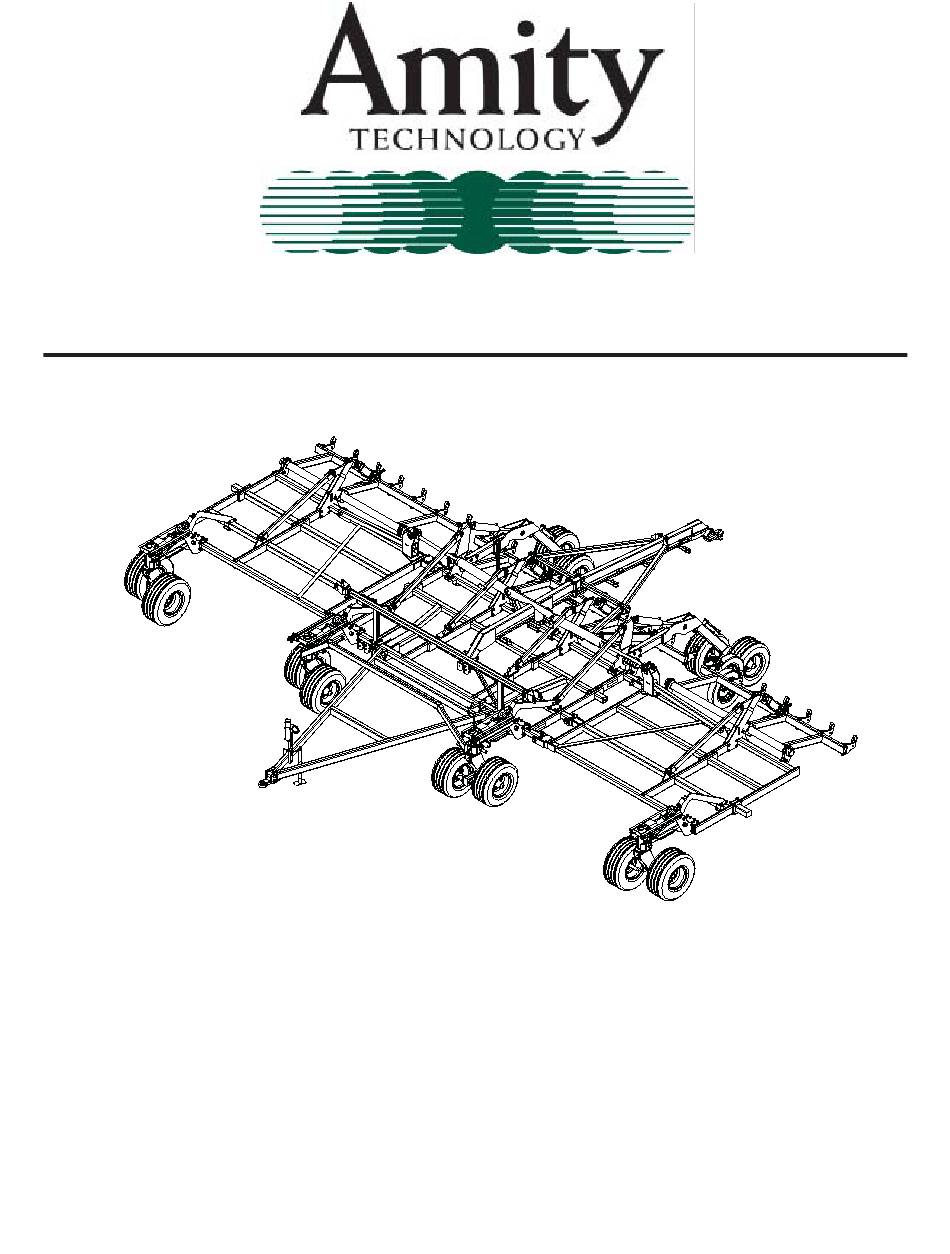

ASSEMBLY, OPERATORS & PARTS MANUAL
FARGO AIRE
TILL DRILL "4010"
Amity Technology, LLC
2800 7th Avenue North
Fargo, ND 58102
(701) 232-4199
www.amitytech.com
Printed in USA (74303) 11/7/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FARGO AIRE 4010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amity Technology FARGO AIRE 4010

  • Page 1 ASSEMBLY, OPERATORS & PARTS MANUAL FARGO AIRE TILL DRILL "4010" Amity Technology, LLC 2800 7th Avenue North Fargo, ND 58102 (701) 232-4199 www.amitytech.com Printed in USA (74303) 11/7/08...
  • Page 2 1. General Provisions. This Warranty shall apply to the original purchaser of (1) any new and unused machine manufactured by Amity Technology, LLC (“Amity”), and (2) any new and unused part which is manufactured by Amity for use in an Amity machine, jointly referred to as “Products,” whether such Product is purchased through a dealer or directly from Amity.
  • Page 3 PERSONAL SAFETY IS IMPORTANT! ALL PERSONNEL INVOLVED WITH THE ASSEMBLY AND/OR OPERATION OF THIS EQUIPMENT MUST BE INFORMED OF PROPER SAFETY PROCEDURES. OPERATOR’S/ASSEMBLY MANUALS PROVIDE THE NECESSARY INFORMATION. IF THE MANUAL IS LOST FOR A PARTICULAR IMPLEMENT, ORDER A REPLACEMENT AT ONCE. OPERATOR’S AND ASSEMBLY MANUALS ARE AVAILABLE AT NO CHARGE UPON REQUEST.

  • Page 4: Assembly Information

    ASSEMBLY INFORMATION Remove all wires and arrange the parts con- When replacing a bolt, use only a bolt of the veniently. same grade or higher. Except in shear bolt ap- plications, where you must use the same grade NOTE: Always wear safety glasses or goggles bolt.
  • Page 5 MODIFICATIONS TO THE OWNER The 4010 AIR TILL DRILL has as standard equip- ment a clearance lighting package . If your unit is not equipped with this package, it can be It is company policy to improve its products ordered by contacting your local dealer or the whenever possible and practical to do so.
  • Page 6 UNIT ASSEMBLY PROCEDURE Position and support the wings level with the main frame (20-21) and secure with the Read and review all assembly instructions noted hardware. Support all frames with before starting assembly of this unit. work stands. Mount the shank assemblies (42-43) in the This unit will be packed in a condensed positions shown.

  • Page 7: Hydraulic System Assembly

    HOSE ROUTING/CLAMPING Position and attach the left and right rear lift axles to the lift axle pivots (24) as shown Hose should be generally routed as shown and secure. Insert hubs & spindles and rims in the routing instruction. Since there are and tires.

  • Page 8: Final Assembly

    HYDRAULIC SYSTEM CHARGING CHARGING WING FOLD CIRCUIT Once all hydraulic circuits have been Connect the wing fold circuit to the oil assembled as noted and the hoses have supply and apply pressure. The main frame been attached it is important to properly wing fold cylinders will slowly extend to full charge the system.

  • Page 9: Operational Information

    OPERATIONAL INFORMATION Once the main lift system has been purged and sequenced lower the unit down so the INITIAL/PRE-FIELD SETTINGS shanks are 1" to 2" above the ground as shown below. Measure the distance to the Once the unit has been fully assembled and ground from a point of a shank on the front before the units is folded for transport check rank of the unit.
  • Page 10 PRE-FIELD SETTINGS - WINGS Once the adjustments to the various anchors have been completed there should be minimal need to readjust these settings. When the unit Check the front to rear level of the main has been moved to the fi eld and dropped to wings.
  • Page 11 WING FOLDING/UNFOLDING After the unit has been charged and levelled it can be winged up to the transport position. NOTE: Do not allow personnel to walk Make certain that the unit is hitched to a under a wing at any time while it is folding tractor and setting on a level surface when or unfolding.

  • Page 12: Transporting Unit

    TRANSPORTING UNIT The 4010 Air Till Drill should be fully folded with I If the unit is parked on a soft surface place the wings locked before transporting. NOTE: support under the lift wheels to prevent This unit should never be transported sinking into the ground.

  • Page 13: Tire Inflation

    TIRE INFLATION If main frame or wing depth needs to be changed to be level, do not add or remove The front lift and rear transport tires (31x13.5 stop collars from that cylinder. Readjust 12 ply) should be infl ated to 60-65 PSI. If the various adjustment anchors.
  • Page 14 FULL UNIT OVERVIEW This page shows an overview of the complete unit as a reference guide to understanding the general layout of the unit. Please refer to the individual assembly instructions for specifi c information. UNLESS SPECIFIED ALL BOLTS ARE SECURED WITH TOP-LOCK LOCK NUTS HDW KIT...

  • Page 15: Before Operating

    SAFETY BEFORE OPERATING Safety decals appear at various locations on your machine. The decals are provided for your Use extreme care when making adjustments. safety and must be kept clean. Replace any When working under or around the machine decal that becomes worn, damaged, painted always lower shanks to the ground.
  • Page 16 MAIN FRAME/FRONT HITCH ASSEMBLY HDW KIT 74303-1 4010 ATD LT ASSY/OPER/PARTS MANUAL (74303) 12/08...
  • Page 17 MAIN FRAME/FRONT HITCH ASSEMBLY 4010 ATD LT ASSY/OPER/PARTS MANUAL (74303) 12/08...
  • Page 18 MAIN FRAME LIFT WHEEL ASSEMBLY HDW KIT 74303-4 4010 ATD LT ASSY/OPER/PARTS MANUAL (74303) 12/08...
  • Page 19 MAIN FRAME LIFT WHEEL ASSEMBLY 4010 ATD LT ASSY/OPER/PARTS MANUAL (74303) 12/08...
  • Page 20 LEFT WING ASSEMBLY HDW KIT 74303-2 PART NO. DESCRIPTION QTY PART NO. DESCRIPTION 221196 MOUNT PLATE - PAINTED GRAY 88131 WSHR FLAT 3/4(13/16X2ACT) Z 222087 WHL ASSY 31X13.5 6B 10" 12P GRAY 88272 BLT HEX 3/4-10NCX4 5Z 222193 CP SHANK STUB 88290 BLT HEX 3/4-10NCX2 8YZ 233232...
  • Page 21 RIGHT WING ASSEMBLY HDW KIT 74303-3 700532.WMF 12-3-08 PART NO. DESCRIPTION QTY PART NO. DESCRIPTION 221196 MOUNT PLATE - PAINTED 88272 BLT HEX 3/4-10NCX4 5Z 240484 PACKER LIFT ANCHOR 88290 BLT HEX 3/4-10NCX2 8YZ 240488 PACKER LIFT BRACKET 88291 BLT HEX 3/4-10NCX3 5Z 240521 INNER WING PACKER MOUNT 88349...
  • Page 22 WING LIFT WHEEL ASSEMBLY HDW KIT 74303-4 PART NO. DESCRIPTION QTY PART NO. DESCRIPTION 12103 BEARING CONE 1-3/4ID (25580) 242933 PIVOT WEAR PLATE 14131 2IN HUB & SPINDLE (LG7830015) 26120 SEAL 16009 COLLAR 42082 1-1/2NF HYDRA JAM LOCK NUT 16278 BEARING BUSHING 54571 GAUGE WHEEL PIVOT...
  • Page 23 THIS PAGE INTENTIONALLY LEFT BLANK 4010 ATD LT ASSY/OPER/PARTS MANUAL (74303) 12/08...
  • Page 24 MAIN FRAME PACKER/LIFT ASSEMBLY HDW KIT 74303-5 4010 ATD LT ASSY/OPER/PARTS MANUAL (74303) 12/08...
  • Page 25 MAIN FRAME PACKER/LIFT ASSEMBLY 4010 ATD LT ASSY/OPER/PARTS MANUAL (74303) 12/08...
  • Page 26 REAR PACKER ASSEMBLY HDW KIT 74285-10 SEE PAGE 27 FOR ADDITIONAL CRITICAL ASSEMBLY INFORMATION DO NOT OVERTIGHTEN PART NO. DESCRIPTION QTY PART NO. DESCRIPTION 233508 LEFT PACKER ARM 243953 SPRING CENTERING WASHER/TUBE 233509 RIGHT PACKER ARM 243985 2009 PACKER HUB & SPINDLE ASSY 237506 1NCX3-1/2 SPECIAL HEX HEAD BOLT 88141...
  • Page 27 PACKER ASSEMBLY/SETTING INFORMATION ONCE EACH PACKER ASSEMBLY HAS BEEN COMPLETED WITHOUT SPRING PIVOT ARMS MOUNTING THE SPRING, IT IS CRITICAL TO PROPERLY SET THE TIGHTNESS OF THE PACKER ADJUST POINTS INDICATED. THE SPRING LOADED PACKER ASSEMBLIES WILL NOT FUNCTION PROPERLY IF THE NOTED POINTS ARE OVER TIGHTENED. BOTH PACKER WALKER THE SPRING PIVOT ARMS AND PACKER WALKERS MUST ROTATE FREELY.
  • Page 28 REAR HITCH/MAIN WING FOLD ASSEMBLY HDW KIT 74303-6 PART NO. DESCRIPTION QTY PART NO. DESCRIPTION 23039 PIN-HAIR .14 X 2.69 ZP 62271 FRAME PLATE (RED) 235262 HOSE BRACKET 88293 BLT HEX 3/4-10NCX6 5Z 241625 HOSE BRACKET 88295 BLT HEX 5/8-11NCX6 5Z 241626 HOSE CLAMP 88515 BLT-U 3/8-16NCX4X2-3/4 Z...
  • Page 29 SHANK ASSEMBLY 243954-EDGE-ON SHANK ASSY (BLACK) 89398 BOLT USED WITH 241764 SHIM 243959-CHISEL SHANK ASSY (BLACK) PART NO. DESCRIPTION QTY PART NO. DESCRIPTION 10210 ADJUSTMENT BOLT 88441 BLT-U 5/8-11NCX2X3-1/4 Z 14987 PIVOT BOLT (CP SHANK) 88548 WSHR FLAT 3/4SAE(13/16X1-1/2) Z 48836 CAST SPRING YOKE 88621...
  • Page 30 DISC LEVELER ASSEMBLY ITEM 19 IS USED WITH ITEM 18 ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. 67132 ARM LONG LEFT 234516 TUBE SPACER ZP 234506 ARM SHORT LEFT 234515 SPRING ARM RH 67131 WLDMT-ARM LONG RIGHT 1011581 WASHER-LOCK: .50 ZP 234509...
  • Page 31 4 BOLT PACKER HUB & SPINDLE - THRU 2008 240482 - COMPLETE HUB & SPINDLE ASSY PAINTED BLACK PART NO. DESRIPTION 10344 BEARING CUP 2.328 OD 10345 BEARING CONE 1-1/4 ID 23029 BEARING CONE 3/4 ID 23097 SEAL 23101 BEARING CUP 25/32 OD 23103 DUST CAP 237800...
  • Page 32 4 BOLT PACKER HUB & SPINDLE - 2009 & LATER 243985 - COMPLETE HUB & SPINDLE ASSY PAINTED PART NO. DESCRIPTION 10344 BEARING CUP 2.328 OD (LM67010) 10345 BEARING CONE 1-1/4ID (LM67048) 244585 PACKER SPINDLE 88300 NUT SLTD 3/4-16NF 5Z 89461 BLT-WHL 1/2-20 UNF X .75 88548...
  • Page 33 6-BOLT HUB & 2" SPINDLE 77836.PLT ITEM PART NO. DESCRIPTION 14131 2" HUB & SPINDLE ASSY (INCLUDES 1-8 &11-15) 88301 PIN COT 3/16DIAx1-1/2 16094 SPINDLE WASHER 7/8ID 10345 BEARING CONE 1-1/4ID (LM67048) 24097 6-BOLT HUB W/CUPS 10344 BEARING CUP 2.328 OD (LM67010) 88263 FTG GRS 1/8NPT 1610-BL(11/16") 14249...
  • Page 34 8-BOLT HUB & 2-1/2" SPINDLE 77836 ITEM PART NO DESCRIPTION ITEM PART NO DESCRIPTION 16154 8-BOLT HUB & SPINDLE (RED) 16156 2-1/2" AXLE SPINDLE (14-3/4) (INCLUDES ITEMS 1-8 & 11-15) 88298 5/8NCx4 GR5 BOLT 88301 3/16x1-1/2 COTTER PIN 88369 5/8NC LOCK NUT 64050 2-1/2ODx1-1/16ID SPINDLE WASHER 16083...
  • Page 35 MAIN LIFT BYPASS CYLINDER CIRCUIT HYD CYL 4-3/4X8 HYD CYL 4-3/4X8 HYD CYL 4-1/2X8 HYD CYL 4-1/2X8 HYD CYL 4X8 HYD CYL 4X8 HYD CYL 5X8 HYD CYL 5X8 HOSES TO TRACTOR REFER TO PAGE 38 FOR CYLINDER LOCATIONS ON THE MAIN UNIT, NOTE ORIENTATION OF FRONT CYLINDERS ON THE LEFT SIDE OF THE UNIT.
  • Page 36 HYDRAULIC STOP COLLARS & SEAL KITS PART NO. DESCRIPTION PART NO. DESCRIPTION 243994 PAINTED STOP COLLAR KIT 244586 1-7/16IN CYLINDER STOP - BLUE 233838 SEAL KIT 4IN (FGS-SK-ACGZ4Q2Q) 241670 SEAL KIT 4IN ATD BP CYL 241645 1/2IN CYLINDER STOP - RED 241671 SEAL KIT 4-1/2IN ATD BP CYL 241646...
  • Page 37 HYDRAULIC STOP COLLARS COMBINATIONS 4010 ATD LT ASSY/OPER/PARTS MANUAL (74303) 12/08...
  • Page 38 HOSE ROUTING - MAIN LIFT HDW KIT 74303-7 SECURE HOSES FRAME TUBES WITH NYLON TIES 4010 ATD LT ASSY/OPER/PARTS MANUAL (74303) 12/08...
  • Page 39 HOSE ROUTING - WING FOLD HDW KIT 74303-8 SECURE HOSES TO REAR HITCH CLAMPS AND FRAME TUBES WITH NYLON TIES Hose are equipped with JIC fittings, tighten to seal, do not overtighten. Cylinder port require O-ring fi ttings, tighten to compress the O-ring to seal.
  • Page 40 HOSE ROUTING - TRANSPORT LIFT HDW KIT 74303-9 SECURE HOSES TO REAR HITCH CLAMPS AND FRAME TUBES WITH NYLON TIES ITEM PART NO. DESCRIPTION 13234 ADP 8MJ X 8MPT 13238 TEE 8MJ X 8MJ X 8MJ 13482 HSE 3KPSI 3/8X108 8FJX-8FJX 13483 HSE 3KPSI 3/8X120 8FJX-8FJX 222199...
  • Page 41 HOSE ROUTING - AIR SEEDER HDW KIT 1/2 FEMALE COUPLER 74285-11 239899 - 1EA 3/4 FEMALE COUPLER 240301 - 2EA SECURE HOSES TO HOSE BRACKETS SPACED ALONG REAR HITCH TUBE WITH CLAMPS OR NYE TIES. 3/4 FEMALE COUPLER 240301 1/2 FEMALE COUPLER 239899 QUICK DISCONNECT MALE COUPLER - 60640...
  • Page 42 RIGHT SIDE SHANK SPACINGS 4010 ATD LT ASSY/OPER/PARTS MANUAL (74303) 12/08...
  • Page 43 LEFT SIDE SHANK SPACINGS 4010 ATD LT ASSY/OPER/PARTS MANUAL (74303) 12/08...
  • Page 44 DECAL LOCATIONS/GREASE FITTINGS MAIN AND WING LIFT WHEELS GREASE FITTING GREASE FITTING 12-16 HRS 12-16 HRS GREASE FITTING 30-40 HRS Check walker spindle nut and adjust to a heavy drag after the fi rst 40 hrs of use Check wheel hub and spindle nut and and monthy thereafter.
  • Page 45 SAFETY LIGHTS MOUNTING PART NO. DESCRIPTION 223126 LIGHT/REFLECTOR BRACKET 223143 AG LIGHT, SINGLE AMBER TRI-PLUG 223144 AG LIGHT, SINGLE RED TRI-PLUG 223160 12 LIGHT ARM 240238 48IN OFFSET LIGHT ARM W/LOCK 88103 NUT HEX 3/8-16NC 5Z 88172 NUT HEX 1/4-20NC 5Z 88203 BLT HEX 1/4-20NCX1 5Z 88262...
  • Page 46 SAFETY LIGHTS NOTE: REFER TO LIGHT PLACEMENT INSTRUC- NOTE: MOUNT AMBER LIGHTS AS WIDE AS POS- TIONS SPECIFIC TO THIS UNIT. THIS SHOWS SIBLE. THE AMBER LIGHTS MUST BE MOUNTED BASIC WIRE CONNECTIONS. NO MORE THAN 16" FROM THE IMPLEMENT EXTREMITIES.

  • Page 47: Manifold Components

    MANIFOLD COMPONENTS Ref. Part No. Description Qty. 33788 COMP-MANF 24 PORT HEAD 33782 COMP-LID DISTRIB24/24 (MACH) 33784 FLANGE-COMP MANF CLAMP 33800 ASSY-COMP MANF LOCK COLLAR 66672 PRIMARY TUBE MOUNT 4" PC 66731 HOSE-KANAFLEX 1.25 X 8 65386 HOSE-KANAFLEX 1.00" BULK 1026358 CLAMP-HOSE: #16 0.81-1.50 33920...
  • Page 48 30" Mount primary tubes 30" on center from the inside of frame tube shown. Left side shown right side opposite. Mount primary tube on third cross tube from the front of the machine. 4010 ATD LT ASSY/OPER/PARTS MANUAL (74303) 12/08...
  • Page 49 MANIFOLD MOUNTING COMPONENTS Ref. Part No. Description Qty. 66675 KIT-CABLE SUPPORT HDW 66676 PULLEY 66677 CABLE CLAMP 66678 THIMBLE 66679 CABLE-1/4" X 30' 1011600 BOLT-HEX: .38 X 1.00 NC GR5 ZP 1014608 WASHER-FLAT: SAE .38 ZP 1013338 NUT-NYLOCK: .38 NC GR2 ZP 53159 SPRING-EXTENSION 33334...
  • Page 50 MANIFOLD COMPONENTS Ref. Part No. Description Qty. 65745 ASSY-ROLLING MNT (FLOW DIVIDER) 66140 BRACKET-ROLLING MNT TOP PC 66141 BRACKET-ROLLING MNT BOTTOM PC 66142 ROLLER-HORIZONTAL & VERTICAL 66144 ROLLER-ROLLING MNT VERTICAL SHORT 66165 ROD-THREADED .500 X 12.00 ZP 1011618 BOLT-HEX: .50 X 5.00 NC GR5 ZP 1032506 NUT-FLANGE: .50 NC GR5 ZP 1027461...
