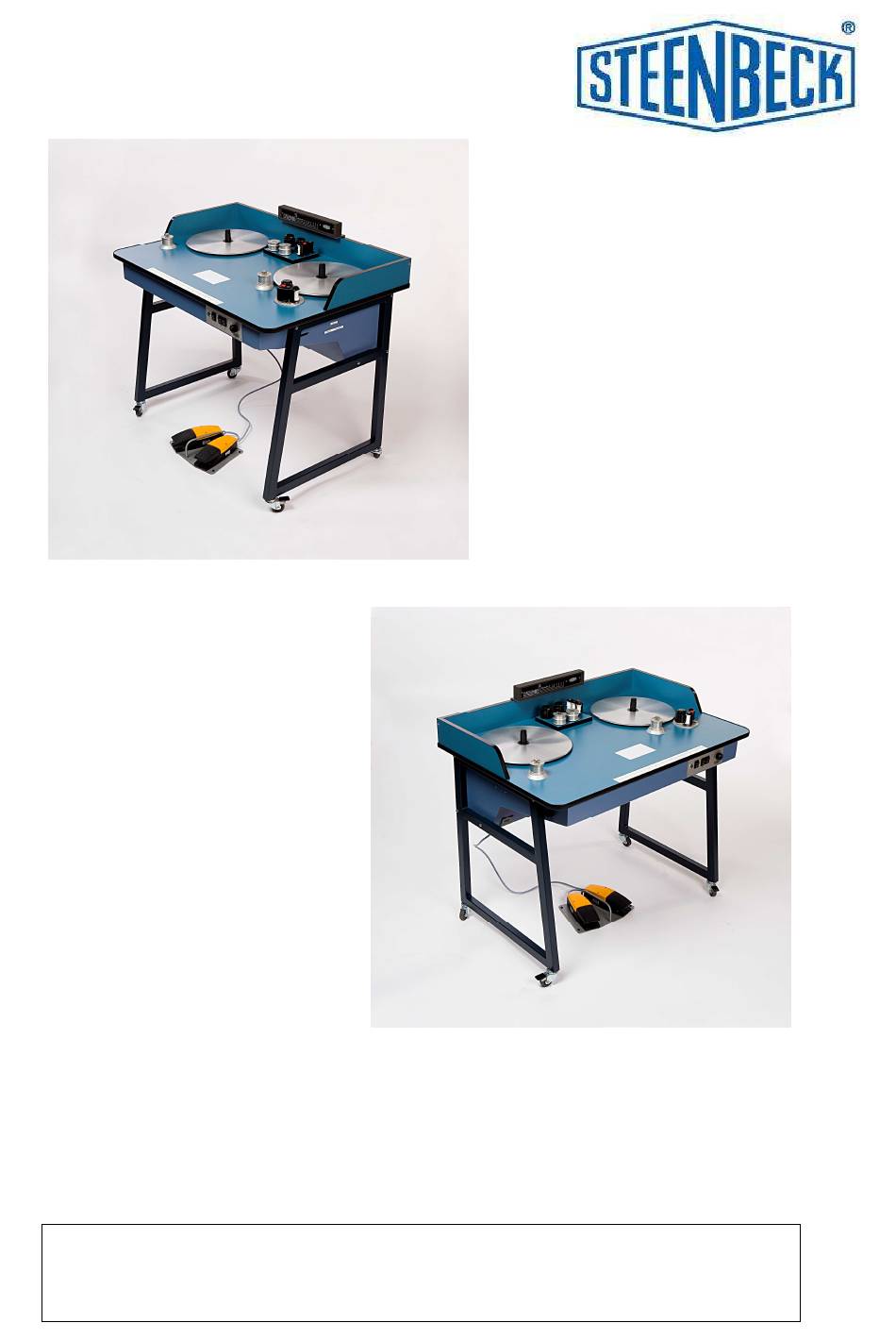

USER MANUAL ST 2520
Copyright © 2008 – 2013.
Steenbeck is a trademark.
No part of this manual may be reproduced without the prior written permission of Steenbeck.
Specifications, colours etc. are subject to change without notice. Images are an example.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST 2520 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steenbeck ST 2520

  • Page 1 USER MANUAL ST 2520 Copyright © 2008 – 2013. Steenbeck is a trademark. No part of this manual may be reproduced without the prior written permission of Steenbeck. Specifications, colours etc. are subject to change without notice. Images are an example.

  • Page 2: Table Of Contents

    section page contents assembly instructions 2 - 3 introduction general features technical data important safety information important warranty information operation instructions ST2520 6.1 preface 6.2 winding units operation overview fig. 1 - 6b 9 - 10 operation 8.1 universal counter (optional) maintenance instructions (mechanics) 9.1 preface 9.2 tools...
  • Page 3 STEENBECK ST2520 Film Rewinder / Inspection Table . (assembly) 1.0 INSTRUCTIONS Please read this instruction carefully. NEVER lift the film rewinder at the top plate. 1. Fasten rollers to film rewinder legs (if removed for shipping) Stop rollers go to the front.
  • Page 4 17. Leave the table running slowly and read carefully the users manual including technical sheets before starting to work with the ST2520. When running the table slowly, you might hear a buzzer and the table will stop. Set potention meter back in “0” position. Align potentiometer so the table will run constant slow, just before the the point the buzzer will be activated.

  • Page 5: General Features

    2.0 INTRODUCTION STEENBECK ST2520: Congratulations purchasing the flatbed 2 plate ST2520 motor film rewinder / film inspection table. This machine is a fine piece of film equipment and the ideal partner for film archives, film laboratories, projection rooms or film restoration companies.

  • Page 6: Technical Data

    TECHNICAL DATA: The 2 plate motor film rewinder / film inspection table is capable of handling all picture and magnetic sound films 16 / 17,5 / 35mm. Motorized winding and speed regulation is accomplished by hand or foot control. One-motor drive with belt system for both winding directions. The minimum and maximum speed range is available in both directions.

  • Page 7: Important Safety Information

    Before shipping, several tests are made for many hours to ensure our quality standards. STEENBECK film equipment is made for a long life with a minimum of maintenance. The ST2520 is designed for (re)winding and inspection of all kinds of film (motion picture) and perforated magnetic sound film material made of nitrate, acetate or polyester.

  • Page 8: Operation Instructions St2520

    6.0 OPERATION INSTRUCTION ST2520. 6.1 PREFACE. The Steenbeck ST2520 film rewinder / film inspection table is a highly reliable tool for working on your valuable motion pictures and magnetic sound films. It is able to handle 16, 17,5 or 35mm stock.

  • Page 9: Operation Overview

    7.0 OPERATION OVERVIEW. The three switches on the ST2520 front switch board have the following symbols: I = on 0 = off Main power switch (fig. 1 page 9) Power On indicator lamp (fig. 1) Switch illuminated ground glass, see 13 (fig. 1) Switch for working lamp with dimmer (fig.
  • Page 10 (fig.1) (fig.2) ( fig.3) V06-2017 ST2520...
  • Page 11 (fig.4) (fig.5) (fig.6) (fig.6b) right direction left direction V06-2017 ST2520...

  • Page 12: Operation

    OPERATION. The ST2520 motorized drive system can be controlled by hand speed control ( fig. 1 #5 page 9) or the optional foot control (fig. 6 b page 10). When both are installed, the hand speed control is always the master. You always have to put the hand speed control in the zero position (centre click) before you can use the foot control.

  • Page 13: Universal Counter (Optional)

    UNIVERSAL COUNTER. (optional) The Steenbeck universal counter is designed to measure film length (all formats) and calculate the position and time information in common use. Additionally, the universal counter may offer extra possibilities for more effective work on your film rewind / film inspection table.

  • Page 14: Maintenance Instructions (Mechanics)

    MAINTENANCE INSTRUCTIONS. 9.1 PREFACE. The Steenbeck ST2520 film rewinder / film inspection table is manufactured and tested with the greatest care possible. That is why it only requires a minimum of maintenance to stay in good working order. This doesn’t mean that the ST2520 doesn’t need maintenance at all.

  • Page 15: Adjusting Frictions

    9.3 ADJUSTING FRICTIONS. In fact the only part that needs maintenance are the both frictions. The friction system has been explained in chapter 3.1.. Before lifting the table top, please take care that the rear castors are in locked position. (fig. 6 page 10) Remove the film from the film plates. Open the table very slowly by lifting the table top.

  • Page 16: Further Maintenance Instructions

    RIGHT FRICTION: same as left but turn the wrench toll ANTI- CLOCKWISE. Now the little friction disc is free (fig. 18 page 20) Clean the ring well with a piece of cloth and a cleaning solvent. Take care no cleaning solvent is dropping into the axle hole or bearing below.
  • Page 17 Fig. 7 ST 2520 only exchangeable sprocket Fig. 8 V06-2017 ST2520...
  • Page 18 Fig. 10 Fig. 9 Turn upside-down for Super 16mm 9. interchangeable guide roller 14. platform for rollers 15. display counter (optional) Fig. 11 Fig. 12 V06-2017 ST2520...
  • Page 19 spring friction film plate aligment nuts 3x left friction Fig. 13 reflection reflection sensor sensor butterfly srew counter board motor ( brushes) right friction control board Fig. 14 V06-2017 ST2520...
  • Page 20 Fig. 15 friction base plate white synthetic ring friction disc Fig. 16 core holder film plate V06-2017 ST2520...
  • Page 21 fig. 17 ( not available) core plate Fig. 18 core axel friction disc core friction axel V06-2017 ST2520...
  • Page 22 Fig. 19 Fig. 20 inner ring film plate Fig. 21 fig.22 spring butterfly screw V06-2017 ST2520 place for lock nut...

  • Page 23: Spare Parts

    10.0 SPARE PARTS STEENBECK ST2520 FAST MOVING PARTS: Part number: 1010.0203.01 roller 35mm picture for pressure arm (fig.8) 2808.0201.02 pressure roller sound for pressure arm (fig.8) 2808.0202.01 pressure roller picture for pressure arm (fig.8) 1010.0803.01 sound roller 17,5 / S16 for pressure arm (fig.8)
