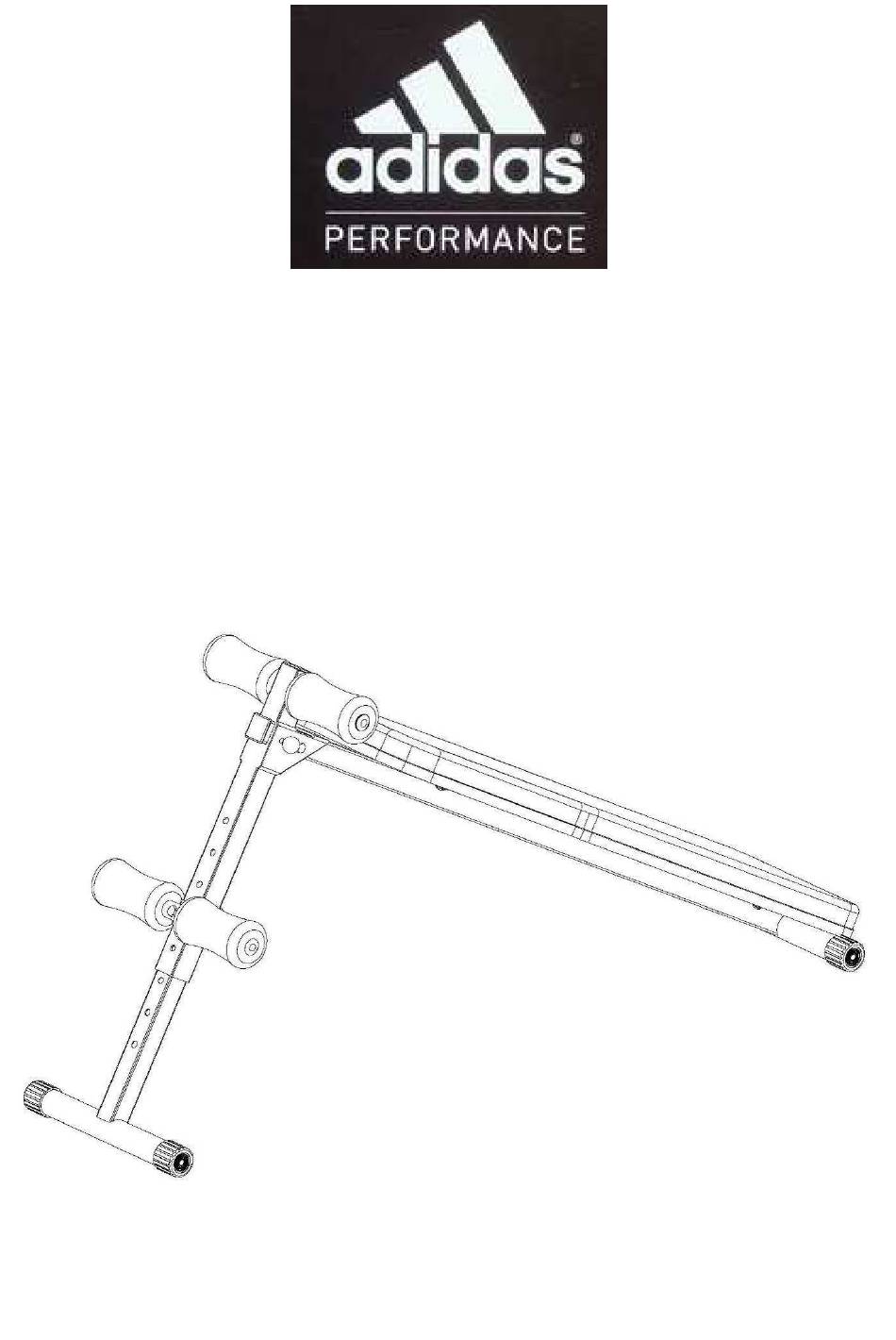

- Page 1 ADBE-10231 AB BOARD ASSEMBLY MANUAL...
- Page 2 PART LIST PART DESCRIPTION BACK PAD FRAME FRONT INCLINE FRAME ADJUSTABLE BOTTOM FRAME BACK PAD SQUARE PLUG(38MM) FOAM TUBE ROLLER PADS INCLINE ADJUSTMENT FOAM TUBE INCLINE ADJUSTMENT KNOB ROUND END CAP(38MM) HEX BOLT(M8*55MM) NYLON NUT M8 QUICK PIN WASHER 6*16MM ROUND HEAD PHILLIPS SCREWS(M6*15MM) WASHER 8*25MM ROUND PLUG(25.4MM)
- Page 3 PARTS CHECK LIST...
- Page 4 HARDWARE PACK CHECK LIST...
- Page 5 ASSEMBLY STEPS : ATTACH THE BACK PAD FRAME(1) TO THE BRACKET ON FRONT INCLINE FRAME(2), THEN INSERT QUICK PIN(13), FASTEN THE HEX BOLT M8*55 (11) TO FRAME WITH NYLON NUT M8 (12) AND WASHER 8 X 25MM (16). INSTALL THE ADJUSTABLE BOTTOM FRAME(3) INTO FRONT INCLINE FRAME(2). INSTALL THE INCLINE ADJUSTMENT FOAM TUBE(8) THROUGH FRONT INCLINE FRAME(2) AND ADJUSTABLE BOTTOM FRAME(3) IN PROPER HEIGHT THEN FASTEN INCLINE ADJUSTMENT KNOB (9).
