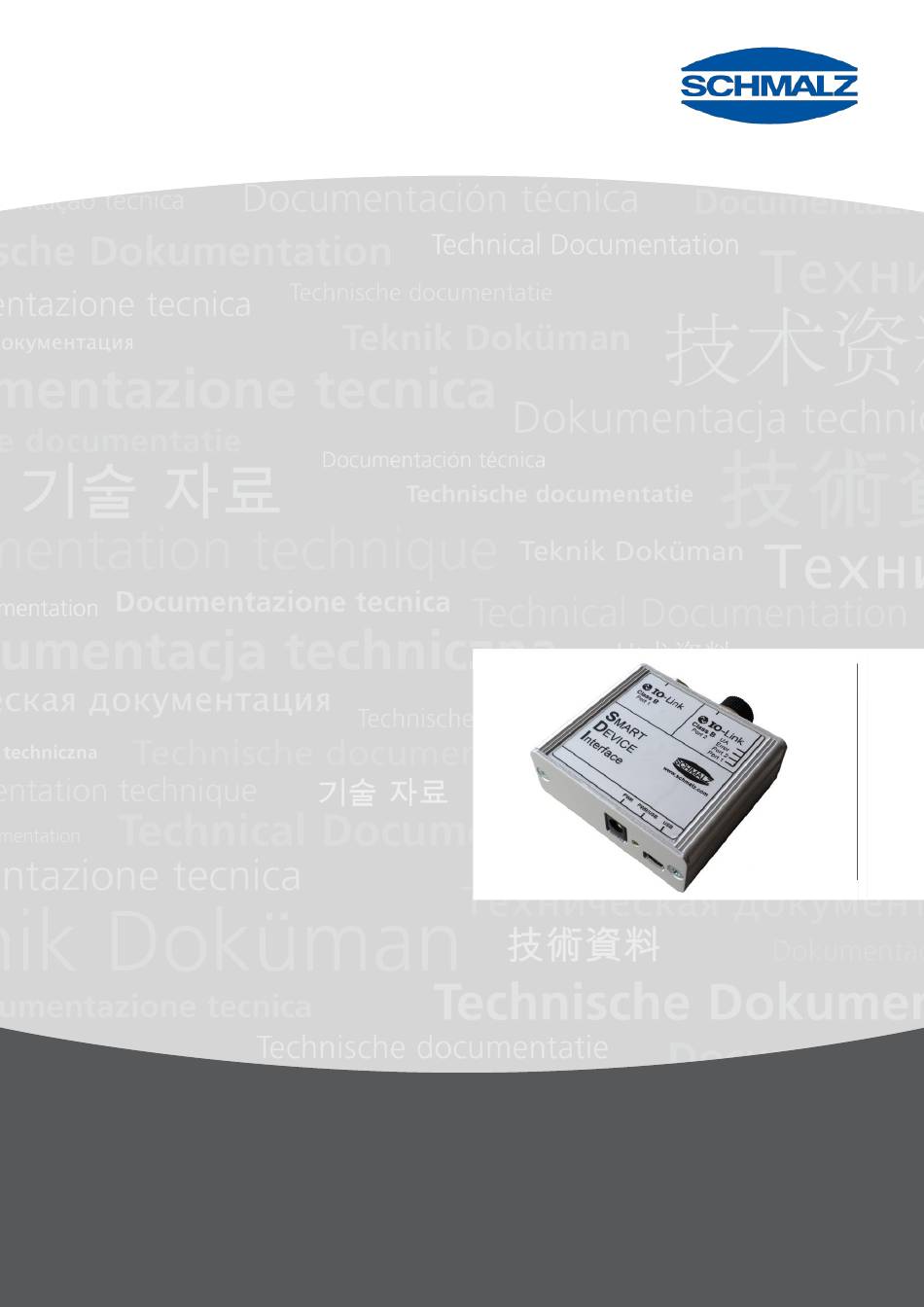

- Page 1 Innovative Vacuum for Automation Operating Instructions Smart Device Interface SDI 30.30.01.00644/01 | 05.2015 www.schmalz.com...
- Page 2 Published by © J. Schmalz GmbH, 05.2015 This document is protected by copyright. J. Schmalz GmbH retains the rights established thereby. Reproduction of the contents, in full or in part, is only permitted within the limits of the legal provisions of copyright law.
-
Page 3: Table Of Contents
Design and function .................... 7 Design ..........................7 Function ..........................7 Display elements ....................... 7 Electrical connection ................... 8 Connecting the SDI electrically ..................8 4.1.1 Supply and interface ......................8 USB connection diagram ....................8 IO-Link connection diagram ....................9 Technical data ..................... -
Page 4: Safety Instructions
Explanation of the warning symbols used in the operating instructions. Warning symbol Description Warning of environmental damage Mandatory symbol Explanation of the mandatory symbols used in the operating instructions. Mandatory Description symbol Adhere to the operating instructions 4 | EN www.schmalz.com 30.30.01.00644/01... -
Page 5: General Safety Instructions
► Protect the components from damage of any kind. Intended use The SDI serves as an adapter between an IO-Link device and a PC with a Windows operating system. IO_Link devices can be operated, read out and parameterized with the SDI and associated SDI-HMI software program. -
Page 6: Product Description
PRODUCT DESCRIPTION Product Description General The SDI is an IO-Link Class B - USB master. Included in delivery Schmalz part number 21.10.02.00005 is included in delivery. 1 SDI 1 USB cable 1 M12 cable, 5-pole 1 mains power adapter ... -
Page 7: Design And Function
M12 socket, IO-Link device connection Function The SDI serves as an adapter between an IO-Link device and a PC with a Windows operating system. IO-Link devices can be parameterized via the SDI and the configuration program from Schmalz. Display elements... -
Page 8: Electrical Connection
Ensure that there is no voltage Connect the PC using the USB cable provided to the USB mini B socket of the SDI Connect the IO-Link device to the M12 socket of the SDI via the M12 cable provided... -
Page 9: Io-Link Connection Diagram
M12 connector, 5-pole A-coded GNDA supply voltage The SDI does not have potential separation between sensor and actuator voltage Technical data You can download, save and print the associated online data sheet with technical data, dimensions and connection diagram for your SDI from www.schmalz.com. -
Page 10: Installing Software
The SDI-HMI configuration program from Schmalz is required for parameterization of the IO-Link device via the SDI. Installation 1. Start installation of the SDI-HMI configuration program via the "setup.exe" file. The following view appears: 2. Install the configuration program according to the installation wizard. - Page 11 INSTALLING SOFTWARE 30.30.01.00644/01 www.schmalz.com EN | 11...
- Page 12 INSTALLING SOFTWARE 12 | EN www.schmalz.com 30.30.01.00644/01...
- Page 13 INSTALLING SOFTWARE 30.30.01.00644/01 www.schmalz.com EN | 13...
-
Page 14: Maintenance
MAINTENANCE Maintenance Cleaning SCHMALZ devices are maintenance-free. We recommend checking the screw unions and plug connections and cleaning the device at regular intervals. Troubleshooting Display Possible Cause Troubleshooting Data transfer error Transfer the data again Red LED "Error" is illuminated... -
Page 15: Conformity Declaration
CONFORMITY DECLARATION Conformity Declaration 30.30.01.00644/01 www.schmalz.com EN | 15...
