Summary of Contents for Smart-M HDMV-9X

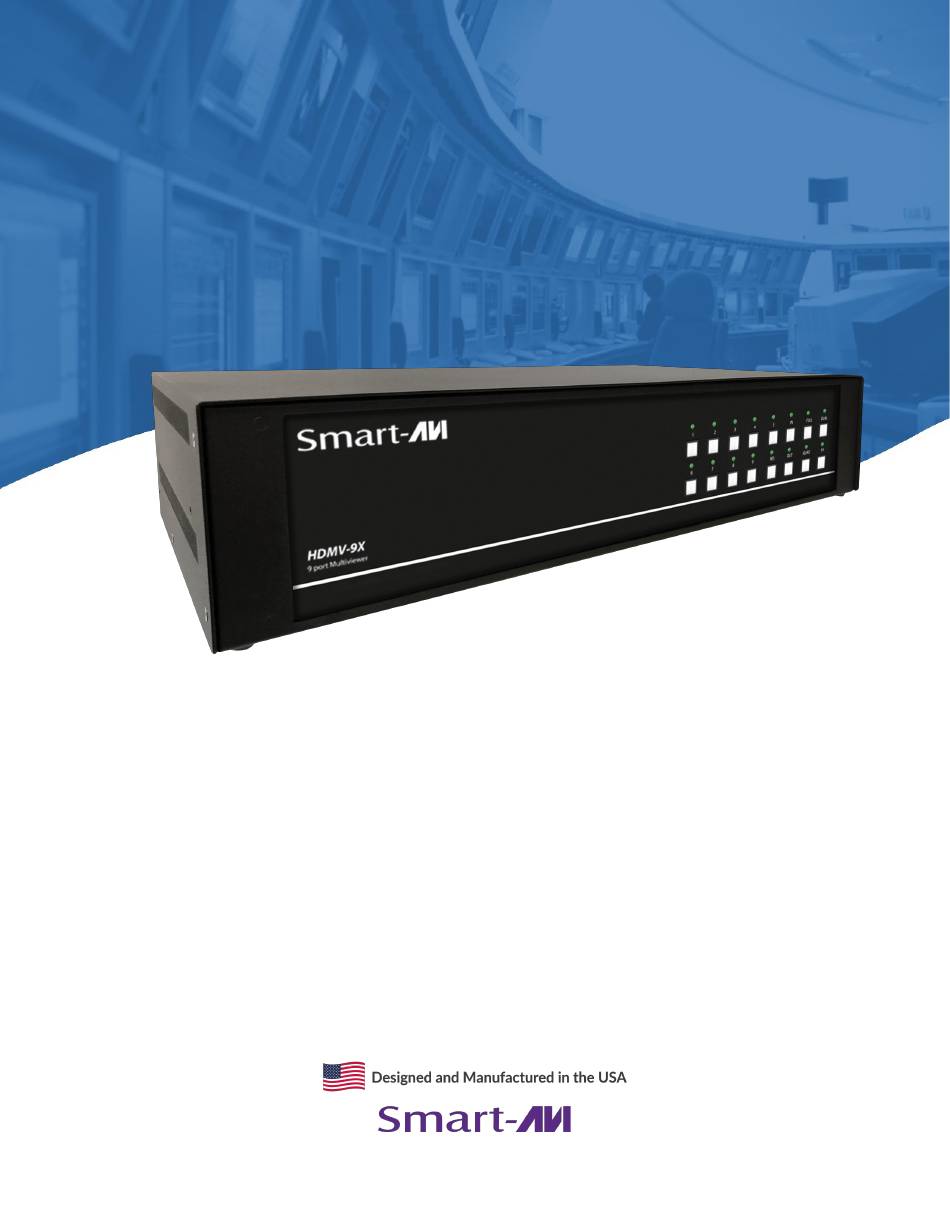

- Page 1 HDMV-9X 9-Port Full HD Multiviewer USER MANUAL 1-800-284-2131 www.smartavi.com 9-Port Full HD Multiviewer for a Single Monitor...
-
Page 2: Table Of Contents
Table of content TECHNICAL SPECIFICATIONS_____________________________________________________________ 3 WHAT’S IN THE BOX?_____________________________________________________________________ 4 HDMV-9X FRONT AND REAR_____________________________________________________________ 4 INSTALLATION____________________________________________________________________________ 5 SYSTEM OPERATION______________________________________________________________________ 6 SELECTING VIEWING MODES_____________________________________________________________ 6 RESOLUTION BUTTON____________________________________________________________________ 7 RS-232 COMMANDS______________________________________________________________________ 7 WEB UI / IP CONTROL____________________________________________________________________ 8 TROUBLESHOOTING______________________________________________________________________ 9 TECHNICAL SUPPORT_____________________________________________________________________ 9... -
Page 3: Technical Specifications
Technical Specifications VIDEO Format HDMI Video Bandwidth 3Gbps Input Interface (9) HDMI 19-pin (female) Output Interface (1) HDMI 19-pin (female) HDMI Compliance HDMI 1.4b HDCP Compliance HDCP 1.4 Resolution Up to 4K2K @ 30 Hz 5 volts p-p (TTL) Input Equalization Automatic Input Cable Length Up to 20 ft. -
Page 4: What's In The Box
What’s in the box? SM-HDMV-9X 9-Port HDMI, Stereo Audio, RS-232, Real-Time Multiviewer with Dual/Quad/9X/Full Modes. Unit PS12VD3A 12V DC, 3A (minimum) power adapter with center-pin positive polarity. User Manual SM-HDMV-9X rear SM-HDMV-9X front 9-Port Full HD Multiviewer for a Single Monitor... -
Page 5: Installation
6. Optionally connect and RS-232 Cable to the RS-232 port. 7. Finally, power on the KVM by connecting a 12VDC power supply to the power connector, and then turn on all the computers. SM-HDMV-9X Shown 9-Port Full HD Multiviewer for a Single Monitor... -
Page 6: System Operation
System operation When selecting a channel by pressing buttons 1-9 on the front panel, the Blue backlight LED will light up to indicate that input is selected for output 1. Selecting Viewing Modes There are a total of 8 viewing modes within the 4 categories, this is a list of all the modes based on the Number given in the command protocol: 1 - Full Screen 2 - Dual (Split) -
Page 7: Resolution Button
1024 x 768 RS-232 commands The HDMV-9X may also be controlled via RS-232 commands. To use these commands, you must use HyperTerminal or an alternate terminal application. The settings for the connection are as follows: Baudrate 115200; Data Bits 8; Parity None; Stop Bits 1; Flow Control None. -
Page 8: Web Ui / Ip Control
Web UI / IP Control Connecting to the Web UI After connecting the HDMV-9X to the network by LAN, the IP address of the device can be found by using our provided application “IPFinder2”. Simply open the application and click “Search Device”. It will provide a list of all the devices with their IP address and MAC address. -
Page 9: Troubleshooting
Troubleshooting No Power Make sure that the power adapter is securely connected to the power connector of the unit. Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. Replace the power supply. No Video ... -
Page 10: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. - Page 11 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
