Summary of Contents for Optiview IPVDW

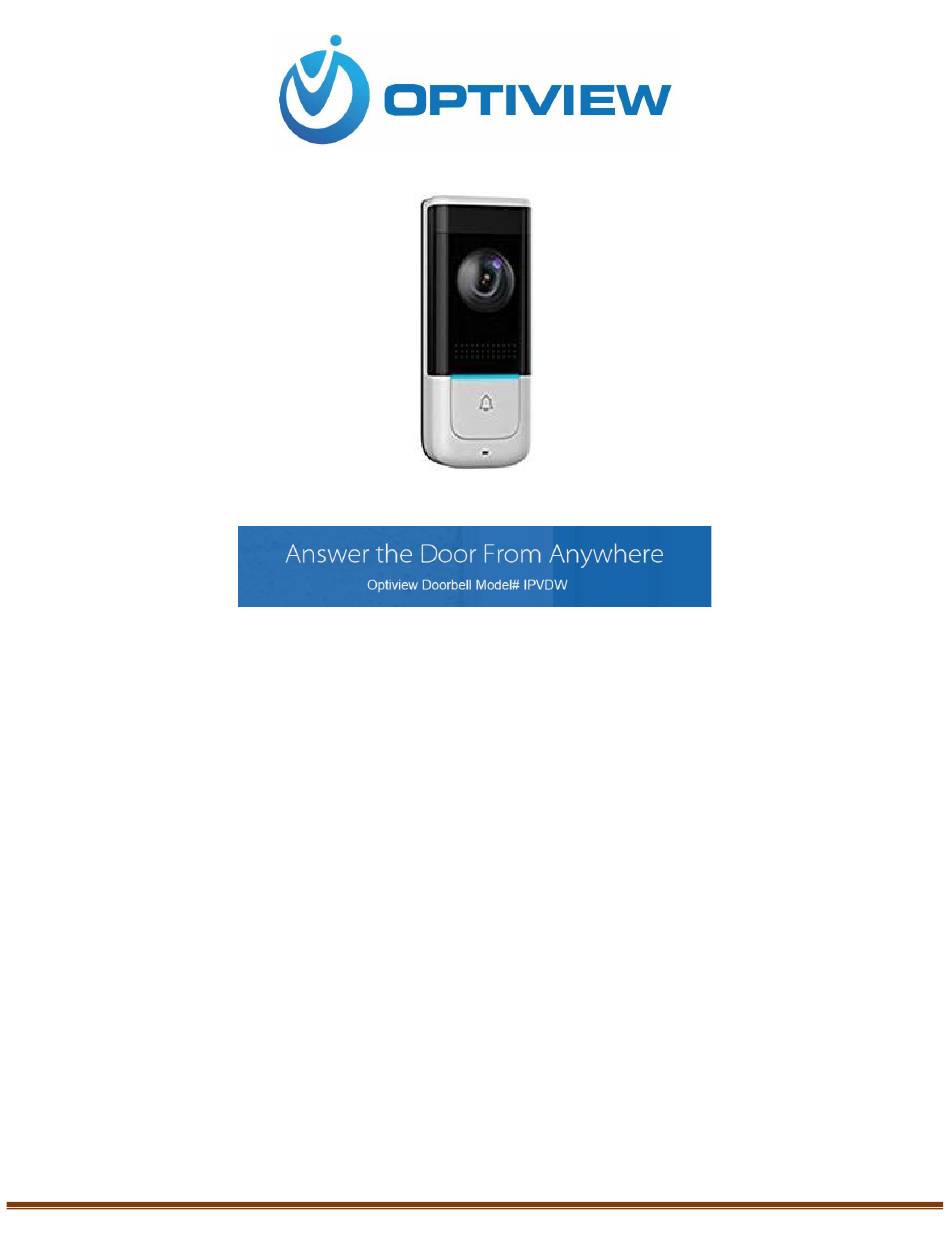

- Page 1 Quick Setup Guide Page 1 Created and last edited by JimB 11/14/2019...
- Page 2 1. General Product Information 1.1 Front Panel 1.2 Status Indicator Light Description Page 2 Created and last edited by JimB 11/14/2019...
- Page 3 1.3 Features 1.4 Wiring Diagram Warning! Do not install the doorbell to the wall until the initial setup on Step 2 is completed. 1.4.1 The doorbell can be powered with AC 16 – 24 volts or DC 12Vdc – 24 Vdc power adapter. Page 3 Created and last edited by JimB 11/14/2019...
- Page 4 1.4.2 Option to inter-connect existing doorbell 2. Software Application Setup – Add Device 2.1 Download the Optiview Mobile Lite on your smart phone; scan the QR code below using smart phone and choose the mobile app based on your phone platform.
- Page 5 At the back of the doorbell, press the Reset button once in order to enable Hotspot. An audio prompt will confirm that hotspot has been enabled. b. Go to your phone’s WiFi Settings and connect to Doorbell’s hotspot, then go back to Optiview Mobile app to continue in “Device Initialization”...
- Page 6 c. Tap “Device Initialization” button” Next Tap the Screen AP Connection ----> button 2.4.2 Scan the QR code behind the Doorbell, as shown below, or the QR Code outside the box. 2.4.3 Enter your preferred password for the Doorbell. Re-enter the password to “Confirm”. Page 6 Created and last edited by JimB 11/14/2019...
- Page 7 2.5 ADD DEVICE The doorbell will need to have an access to the Internet through a local home or office Wifi in order for itself to be connected and registered to P2P servers. Remote access connection to doorbell is only via P2P. Once, the Doorbell has been initialized, the menu screen will go back to “Add Device”.
