D-AIR DA-08P User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DA-08P
DA-12P

Advertisement

Table of Contents
loading

Summary of Contents for D-AIR DA-08P

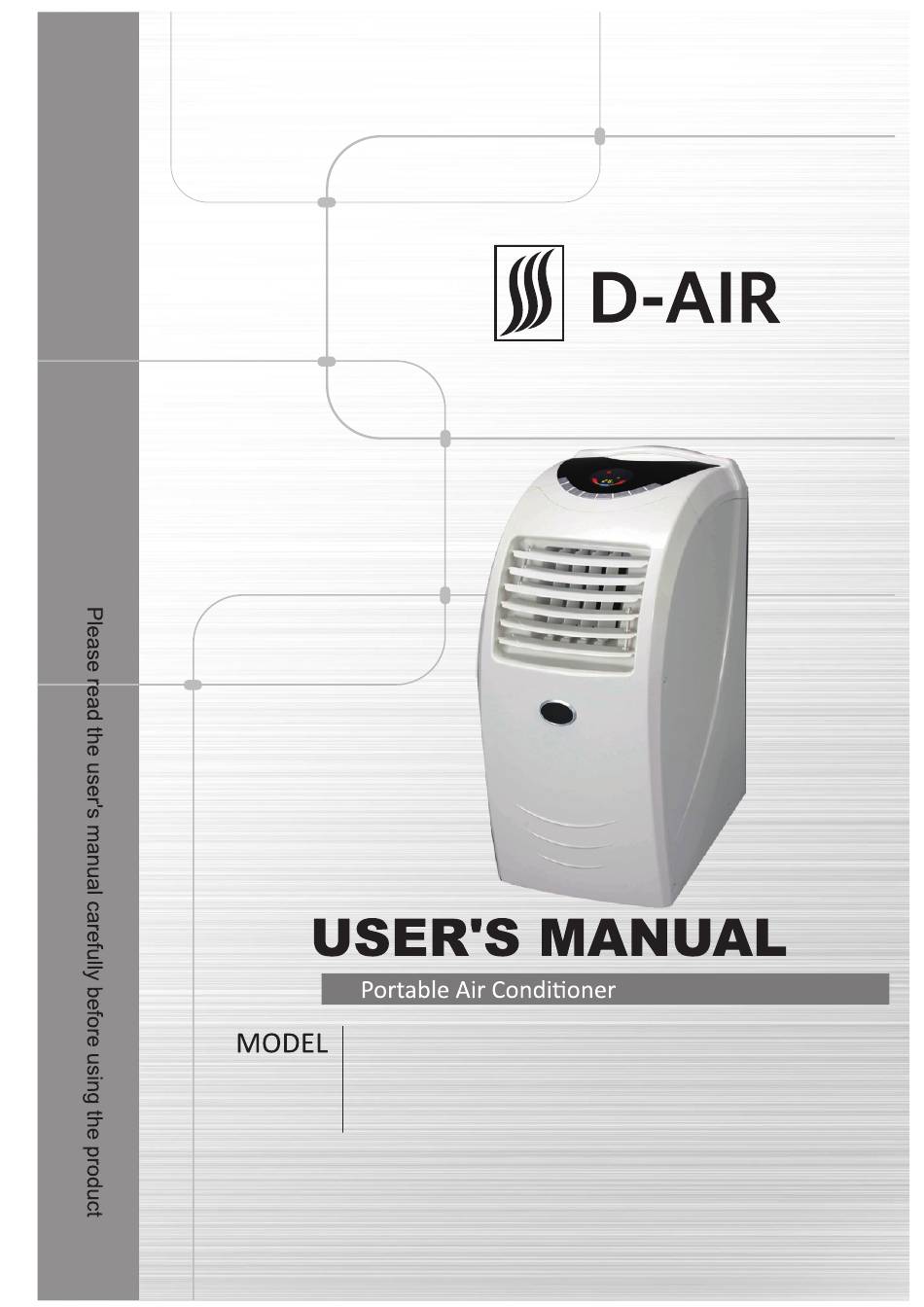

  • Page 1 DA-08P DA-12P...

  • Page 2: Table Of Contents

    CONTENTS CONTENTS ........................IMPORTANT SAFEGUARDS ................. FEATURES AND PARTS LIST ................PANEL CONTROL ...................... REMOTE CONTROL ....................OPERATION METHODS ..................INSTALLATION ......................WATER DRAINAGE METHODS ................MAINTENANCE ......................TROUBLE SHOOTING ................... INSTALLATION ACCESSORIES ................ APPENDIX ........................

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS Important Safeguards. •Read all instructions carefully. •Disconnect the power plug before dismantling, assembling or before cleaning. •Avoid touching any of the appliance s moving parts . ’ •Never insert fingers, pencils or any other objects through the guards whenever the power plug is connected, especially while running.
  • Page 4 Energy Saving Tips. Do not cover or restrict the airflow from the Outlet or Inlet grills. The minimum distance from furniture and walls should be 50cm. Keep blinds and /or drapes closed during the sunniest part of the day. Keep the filters clean. Under normal conditions, the filters should be cleaned approximately every 30 days.

  • Page 5: Features And Parts List

    FEATURES AND PARTS LIST Features: ·No installation is required. ·Easily moved . The handle makes moving more convenient. ·LED colourful screen display. ·Water-cooled mode saves energy and is environment friendly. ·Low noise and strong performance. ·Unique economic function. ·Auto swing makes air flow from left to right automatically. ·Three-minute restart delay to protect compressor.

  • Page 6: Panel Control

    PANEL CONTROL CAUTION: If the unit is turned off in cool /dry mode and restarted immediately , then it will wait at least 3minutes before running again. 1. Buttons Timer: press this button to set the timer Swing: press this button to make the vertical louver swing automatically. Press once again, the swing will stop.

  • Page 7: Remote Control

    REMOTE CONTROL Power Press this button to turn on/off the unit. Timer Press this button to set the timer. Swing Press this button to make the vertical louvre swing automatically. Vary from Celsius degree to Fahrenheit degree. Cool Press this button to choose Cool mode. remote control Fig.4 Press this button to choose Dry mode.

  • Page 8: Operation Methods

    OPERATION METHODS Timer set 1.Set timer -off Press the Timer button when the unit is on. The LED will flash_ _five times. During this period press Up or Down button to adjust set time from 0.5h to 24h. It will vary 0.5h each time in 3h and 1h each time hereafter. The set time will flash 5 times after adjusting.

  • Page 9: Installation

    INSTALLATION 1.Selection of Installation Place Install the unit on a flat and dry place. Leave at least 50cm space around the unit(when the hose is not connected). (Fig.5) 2.AIR Exhaust Duct Mounting 1) Fix the square end of the exhaust duct to the exhaust terminal of the unit.
  • Page 10 4.Mounting illustrations 1.mounting in the wall 2.correct bending 3.wrong bending...

  • Page 11: Water Drainage Methods

    WATER DRAINAGE METHODS This product has a self-evaporative system. The condensing water will recycle to cool the condenser. This water-cooled mode will not only improve cooling efficiency and decrease noise, but also save energy . * When in cooling mode, the water from the evaporator will flow into a inside pan.

  • Page 12: Maintenance

    MAINTENANCE Cleaning Turn off the unit and pull the plug out of the socket before cleaning. 1.Cleaning surfaces Clean the surface of the unit with a duster or a moist soft cloth. Do not use chemical solvents like benzene, alcohol, gasoline, etc. 2.

  • Page 13: Trouble Shooting

    TROUBLE SHOOTING Problem Check Solution Is there a power failure? Is plug out? Insert the plug into the socket The unit doesn’t operate at all. Is power fuse or switch off? Change the fuse or switch on. Change the set time. Is the set time suitable? Empty water tank.

  • Page 14: Installation Accessories

    INSTALLATION ACCESSORIES Description Flexible exhaust hose with adapter ……1/set Window exhaust adapter (flat mouth)……1pc Adjustable window slider kit ………………2/set Screw ……………………… … ………………… Water cup ………………………………………1pc 90cm 130cm...

  • Page 15: Appendix

    APPENDIX Fuse Parameter Type: FSD Voltage: 250V Current: 3.15A Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This manual is also suitable for:

Da-12p
