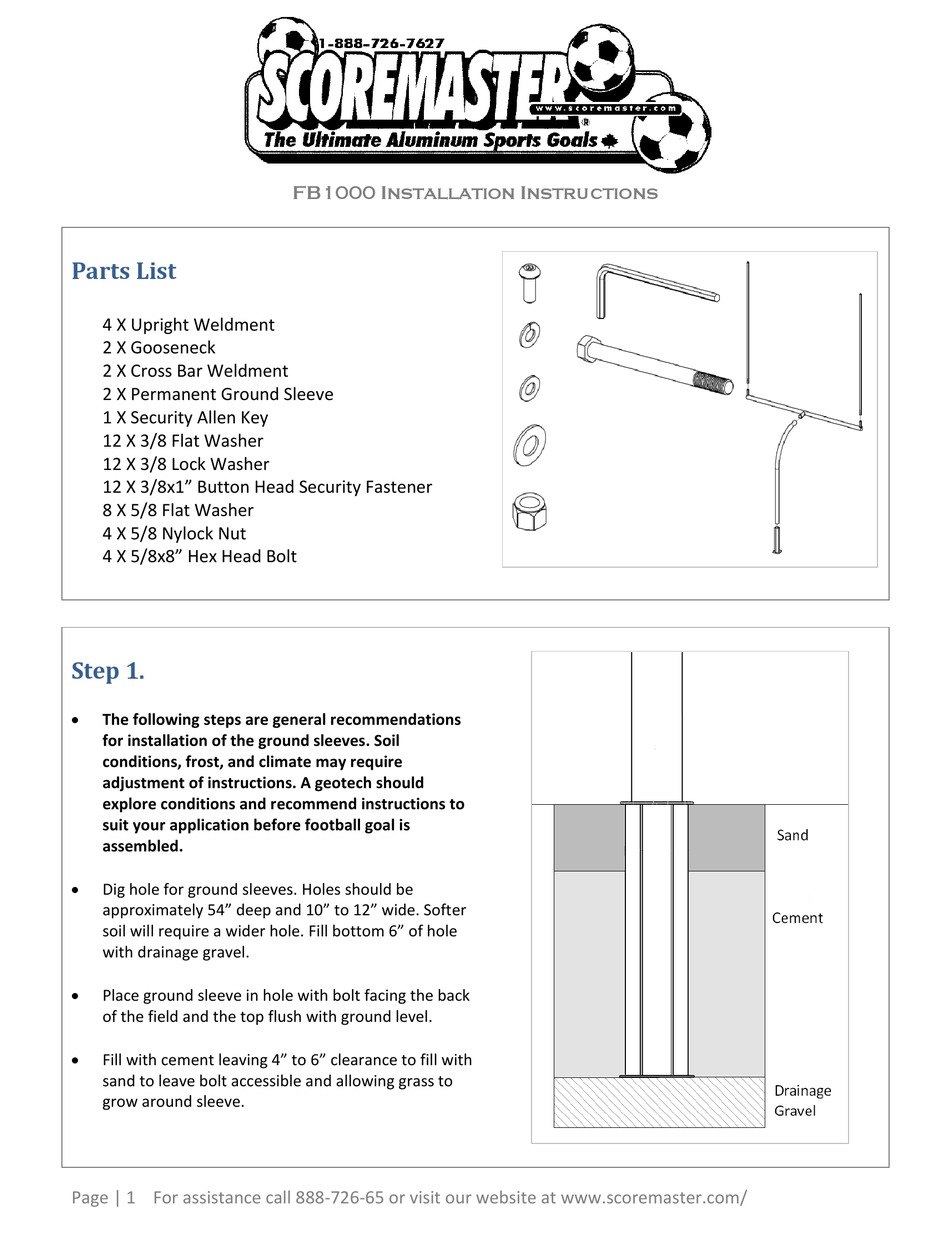

Scoremaster FB1000 Installation Instructions

Parts List

4 X Upright Weldment
2 X Gooseneck
2 X Cross Bar Weldment
2 X Permanent Ground Sleeve
1 X Security Allen Key
12 X 3/8 Flat Washer
12 X 3/8 Lock Washer
12 X 3/8x1" Button Head Security Fastener
8 X 5/8 Flat Washer
4 X 5/8 Nylock Nut
4 X 5/8x8" Hex Head Bolt

Step 1.


The following steps are general recommendations
for installation of the ground sleeves. Soil
conditions, frost, and climate may require
adjustment of instructions. A geotech should
explore conditions and recommend instructions to
suit your application before football goal is
assembled.

Dig hole for ground sleeves. Holes should be
approximately 54" deep and 10" to 12" wide. Softer
soil will require a wider hole. Fill bottom 6" of hole
with drainage gravel.

Place ground sleeve in hole with bolt facing the back
of the field and the top flush with ground level.

Fill with cement leaving 4" to 6" clearance to fill with
sand to leave bolt accessible and allowing grass to
grow around sleeve.
