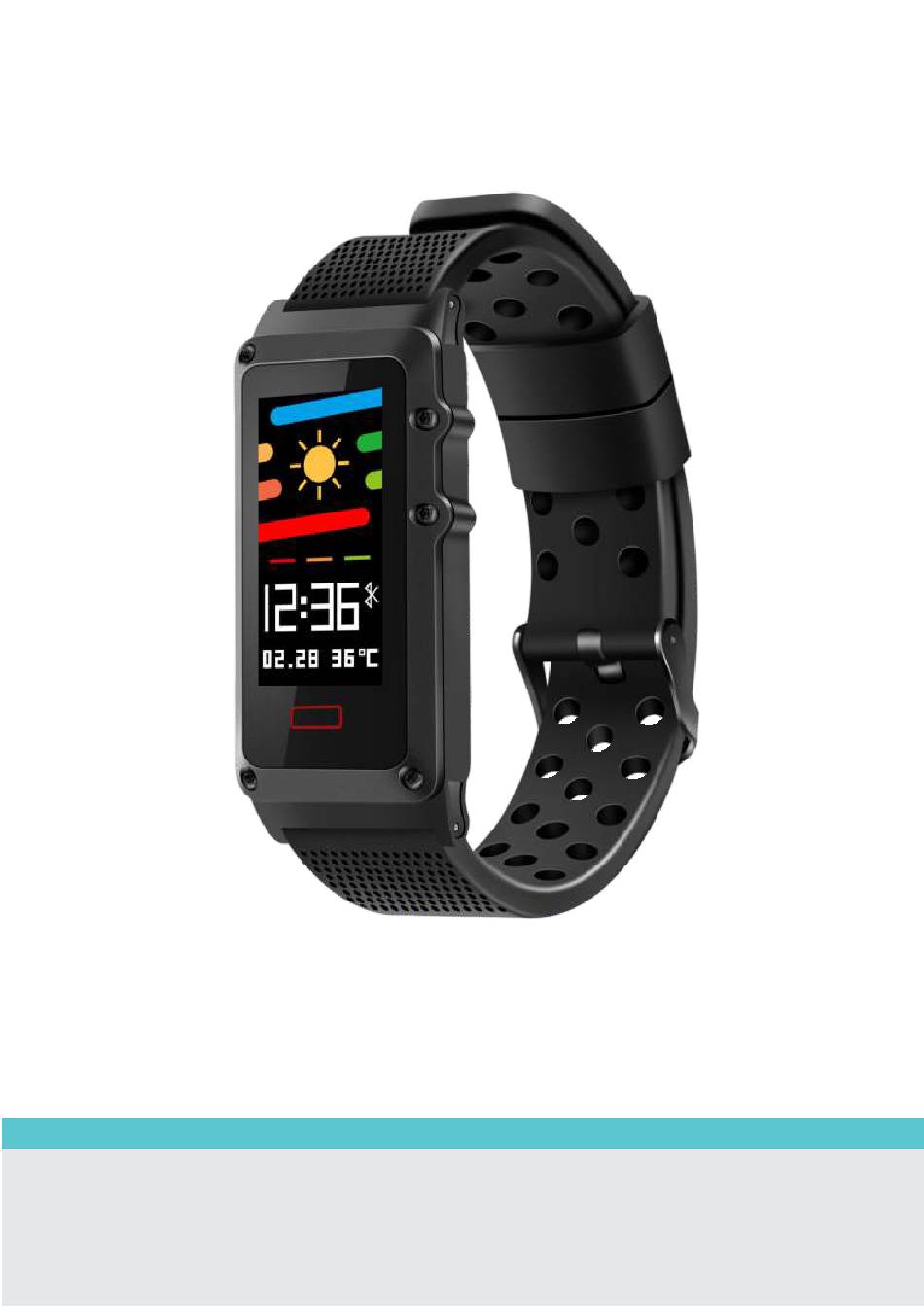

- Page 1 LEPFITF01 smart bracelet User manual...
- Page 2 Thank you for purchasing our device. Before using please read following user manual. Quick Start 1.1 Warning Before start any new sport activity please consult your doctor. Smart bracelet can monitor real time dynamic heart rate but it can’t be used for any medical purposes. Please be sure to consult your doctor before any exercise and diet plan.
- Page 3 1.5 How to use charging clip Charging clips 2 spring connectors Charging clip need well aligned with 2 charging pins should be fasten on back of shell from right side of device 1.6 Initial using instruction - Before initial use of device please press touch key at the bottom of the screen for 5 seconds to turn on device.
-
Page 4: Functions Introduction
1.8 Device appearance Charging pins Screen Heart beat sensor Red touch Belt quick release spring bars Functions introduction 2.1 Main screen interface Main screen will show time, date, battery level, bluetooth connection status, temperature and weather icon. Please remember to pair device with APP by bluetooth to synchronize data. - Page 5 2.3 Distance Function shows distance in kilometers or miles you made today. Please be noted that each 12am time device will reset distance amount to zero to start count for new day. You can change kilometers/miles parameter in APK. 2.4 Burnt callories Function shows amount of burnt callories connected with amount of steps you made today.
- Page 6 Heartbeat rate Enter to Healthy function then short press red touch key. Device will start measurement of heartbeat rate. Test is in progress when icon is shown. Please be noted that device support dynamic heartbeat test. It will continously show result. If you want finish test, simply press red touch key.
- Page 7 Blood pressure test Enter to Healthy function then 2 times short press red touch key. Device will start measurement of blood pressure automaticly. When test is finished device will vibrate and result will be shown on screen. Normal systolic blood pressure level: 90-140 mmHg Normal diastolic blood pressure level: 60-90 mmHg WARNING: This product is not "Medical"...
- Page 8 Sleep monitoring Device is monitoring deep sleep, light sleep and sleep duration. It is easy to know the quality of sleep and length of each sleep stage. When device is power on sleep monitoring is enable. Device is set to monitor sleep from 10pm to 8am. After this period device will show last night data on screen.
- Page 9 How to choose sport mode Please select Sports function. Then long press red touch key. Now you can select desired sport mode by short press red touch key. To confirm mode please long press touch key. After it function will be activated. When mode is on by short press of red touch key you can monitor your progress.
- Page 10 LinkedIn, Instagram. To enter please long press red touch key on NEWS interface. You can switch between messages by short press red touch key. Tip! Device can store only 7 messages. After device reach limit, previously displayed messages will be replaced one by one.
- Page 11 2.9 More Please select More function. Then long press red touch key. Device has 5 additional modes. Search phone, About, QR code, Reset and Off. You can navigate between additional modes by short press red touch key. To enter long press red touch key. Search phone This function can help find your phone if device is connected with it by bluetooth.
- Page 12 O ff Long press red touch key to power off device. FunDo APP introduction Scan QR code from user manual or directly from device to find FunDo APP from Google play or Apple store. Download APP and install. Starting... Open FunDo APP on your mobile phone. Please remember turn bluetooth on. Please remember Starting...
- Page 13 Personal Informations After opening APP please register and fill your personal information. Those information will be used by APP for sports algorithms. Please fill all required information. In the top right corner Press ME in the Region, tel number then press please press “Please bottom left corner.
- Page 14 How to connect device Please turn on device and bluetooth on your phone then open FunDo APP. If your list is empty please Tap on MORE function Then press on press on FIND button in in the botton right corner. “+Add device”.
- Page 15 APP main functions Steps data after sync with ports function gives In APP main interface device will give you useful you many informations you can slide on top information about amount of about your activity. to change functions steps, burnt calories, activity More details on next time, distance.
- Page 16 Sports function Sports function will help you to track and record different kinds of sport activity. You can set Sports function in device and freely without your phone record it then sync data in APP. You can choose sport mode directly from APP. Use Phone GPS to show your route on map.
- Page 17 Countdown Moving target menu offers: You can choose from You can set time for Free to run- you can run normal or satellite map. warm up before activity without limits. You will be able track record will start. Mileage goal - you can set your exercise route on To confirm please tap km/miles distance.
- Page 18 Analysis In main APP interface Analysis function will give you easy access to compare please tap on Analysis Steps and Sleep in the past. Main interface shows icon. data from last 7 days. If you tap on icon in top right corner you can see data from last month, 6 months and one year.
- Page 19 More function Please be noted that device need to be paired with APP to have access to all of them. In main APP interface MORE function offers you variety of settings and functions. please tap on MORE icon. Find device If you can’t find your device simply tap on this function.
- Page 20 Alarm clock remind You can set alarm clock. Please be noted device has no speaker! After selecting time of alarm, device will vibrate ones and light screen only. It can be used just as reminder. Please don’t use it to wake you up. You can choose reminder way in Remind Mode.
- Page 21 Drinking water remind Function helps to remind to drink water regularly. Device will vibrate and show reminder. You can set time range function will be enable and frequency. Please remember to slide at the bottom to enable function and confirm in top right corner. Heart rate test Function helps to monitor heart beat regularly.
- Page 22 For more information, contact your local authority or your distributor where you purchased the product. Note: The LEPFITF01 device may contain links to websites or websites operated by third parties outside LEOTEC and / or World Drive S.A ..
