This manual contains text, diagrams and explanations which will guide the reader in the correct instruction
and operation of the MAS-CABLE interface. It should be read and understood before attempting to install or
use the unit.
Further information can be found in the MILLENIUM Installation Manual NTR 735 and the Programming
Manual NTR 737.
Don't touch
1. Introduction

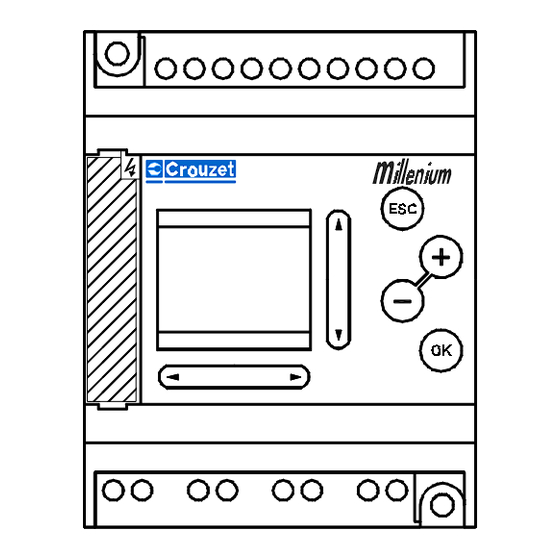

The MAS-CABLE is an RS232C interface connected between a MILLENIUM series controller and a personal
computer for a programming tool.
Note :
• MAS-CABLE interface cannot be used for any other applications.
• MAS-CABLE interface rises about 40 mm above the top panel when connecting to a MILLENIUM series
controller.

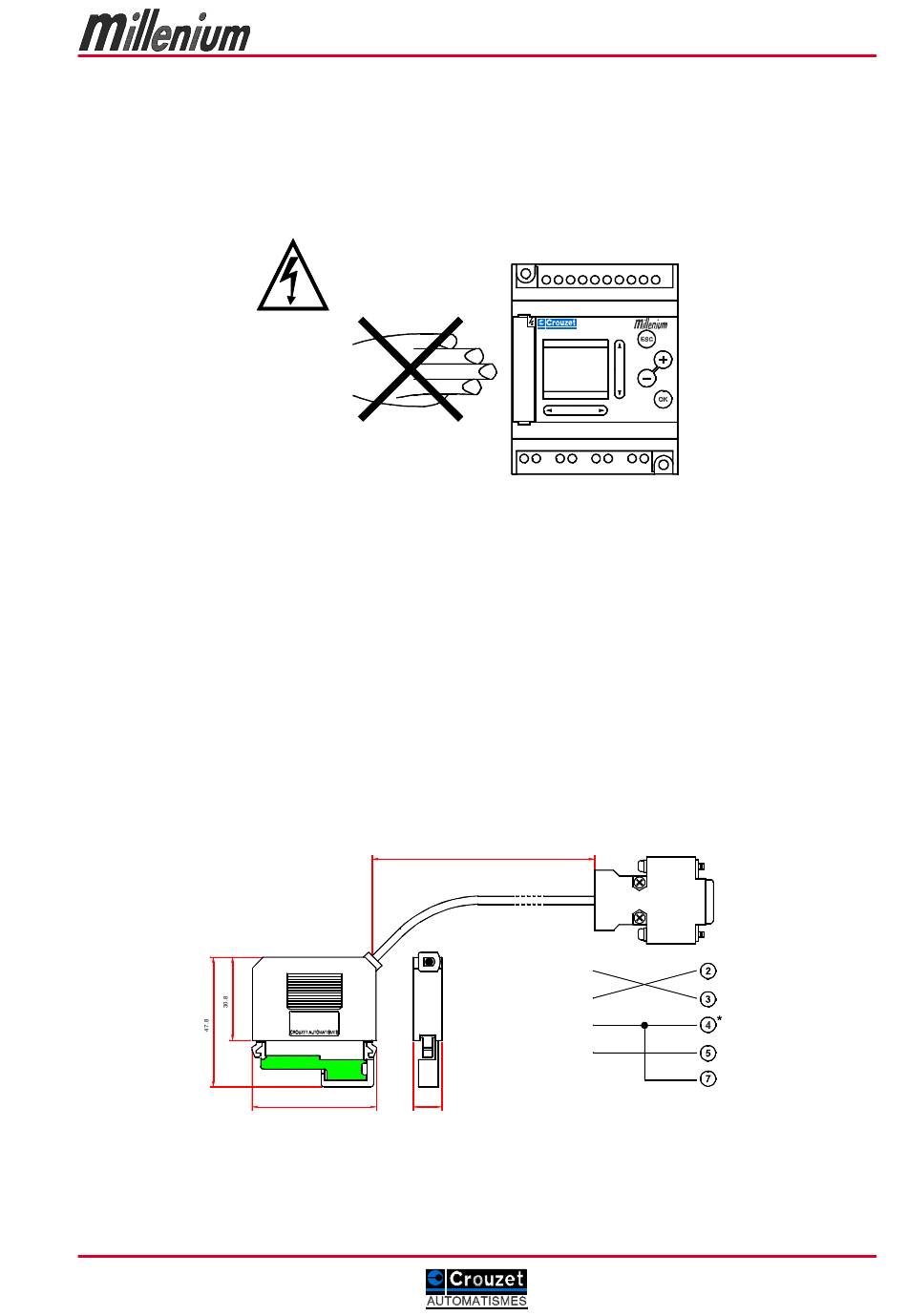

1.1 External dimensions
MILLENIUM
series side
Dimensions in mm.
Module d'Automatisme Simple
NTR 736_M_MAS_CABLE_INTERFACE
MAS-CABLE
MAS CABLE
89 750 101
46
10.5
2500
RXD(RD)
TXD(SD)
DTR(ER)
GND(SG)
NTR 736
Personal computer
side
(9 pin D-SUB)
* Set this signal
to high-level.
English
06/1999 - 1/2
Advertisement
Table of Contents
Summary of Contents for Crouzet Millenium MAS-CABLE
- Page 1 MAS-CABLE NTR 736 This manual contains text, diagrams and explanations which will guide the reader in the correct instruction and operation of the MAS-CABLE interface. It should be read and understood before attempting to install or use the unit. Further information can be found in the MILLENIUM Installation Manual NTR 735 and the Programming Manual NTR 737.
- Page 2 MAS-CABLE NTR 736 2. Connected to MAS-CABLE interface Remove cover and memory cassette. • Be careful not to injure the hand when you remove the cover with a tool. Caution • Persons trained in the local and national electrical standards must use the MAS-CABLE interface. •...
