KULLANIM KILAVUZU
USER GUIDE
K-2025
DİKEY YAŞAM HATTI
VERTICAL LIFE LINE
Ürün Kullanım Raporu
Product Usage Report
Ürün Seri No
Serial Number
: ...........................................................................................
Üretim Tarihi
Date of Production
: ...........................................................................................
Sevk Tarih
Date of Delivery
: ...........................................................................................
Kaşe İmza
Stamp & Signature
: ...........................................................................................
.............................................................................................
.............................................................................................
.............................................................................................
.............................................................................................
.............................................................................................
.............................................................................................
.............................................................................................
.............................................................................................
.............................................................................................
Ürün İlk Kul. Tar.
Date of first use
: ...........................................................................................
Kullanıcı Ad/Soyad
Name&Surname of user: ...........................................................................................
Ürün Yıllık Kontrolleri
Annual Product Inspections
No
Yıllık Kontrol Tarihi
Gelecek Yıl Kontrol Tarihi
Nu
Inspection Date
Next Inspection Date
1
2
3
4
5
6
7
KYS_K2025_KLK_01_181017_B
Kontrol Eden Ad/Soyad
Inspected by
TR/ENG
K-2025
(TR)
Dikey Yaşam Hattı - (Hat Üzerinde Şok Emicisiz)
(EN)
Vertical Life Line (Without Energy Absorber Integrated)
EN 353-1:2014
K-2025
F-5 A
Test Eden Onaylı Kuruluş / Tested by Notified Body
APAVE SUDEUROPE SAS (n°0082)
13322 MARSEILLE CEDEX 16 – France
T: +33 (0) 4 76 53 52 22
F: +33 (0) 4 76 53 32 40
(TR)
K-2025 Dikey Yaşam Hattı (Hat Üzerinde Şok Emicisiz)
(EN)
K-2025 Vertical Life Line (Without Energy Absorber Integrated)

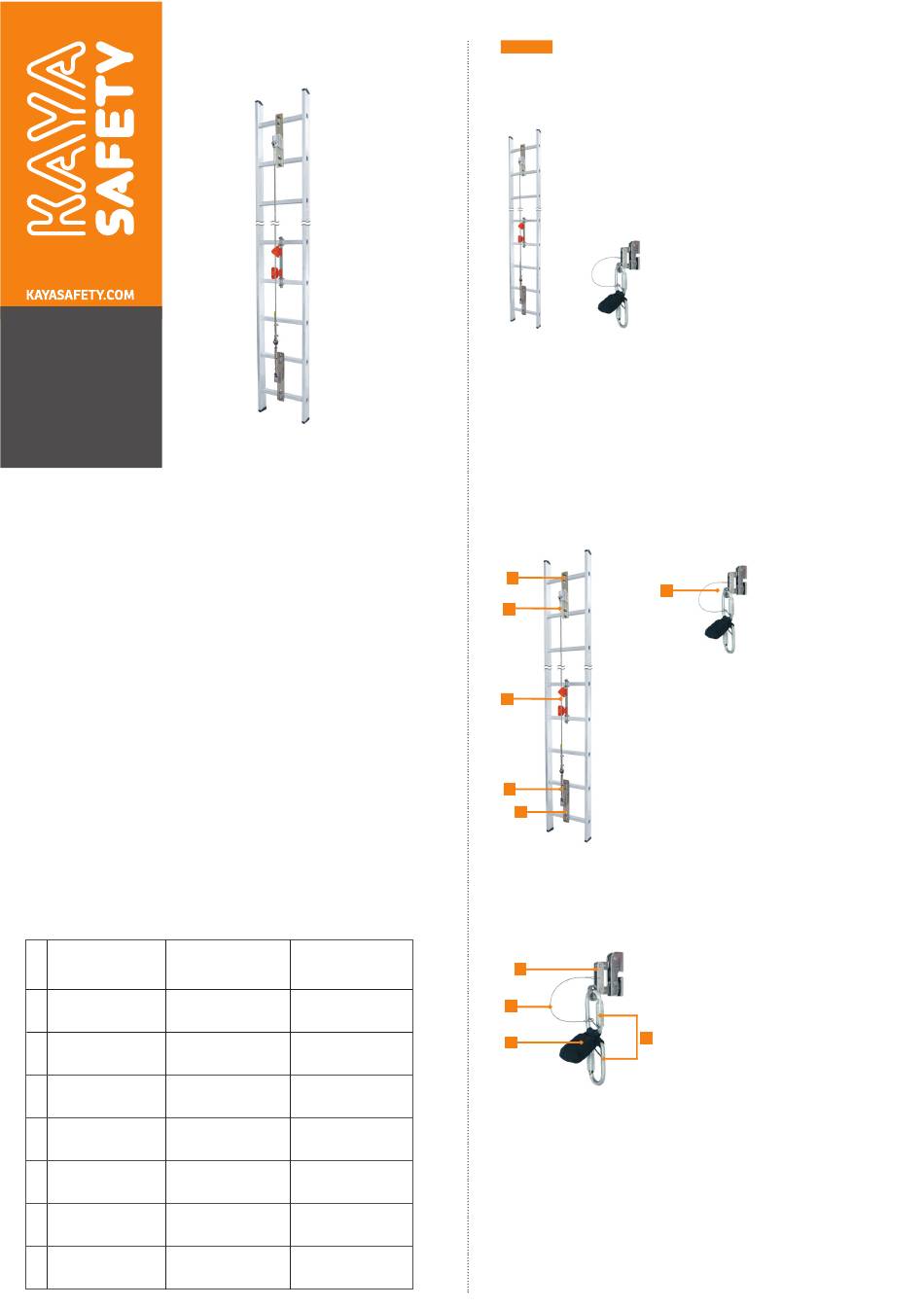

(TR)
Ürün Bileşenleri
(EN)
Product Components
1
6
F-5 A
2
K-2025
Ürün Bileşenleri
3
1- AP-300 C Üst Ankraj Plakası
/ Upper Anchor Plate
2- FA-50 Şok Emici / Energy Absorber
3- LL-100 Yaşam Halatı / Lifeline Wire Rope
4- FC-30 V Halat Rehberi / Rope Guide
5- FS-40 Gerdirme Aparatı / Tensioner
4
6- AP-300 B Alt Ankraj Plası
5
/ Bottom Anchor Plate
7- F-5 Halat Tutucu / Rope Grab
(TR)
Malzeme Özellikleri
(EN)
Material Specifications
1
2
3
4
/ Product Components
F-5 A Ürün Bileşenleri
1- F-5 Halat Tutucu / Rope Grab
2- Ø 1,5 mm Çelik Halat - Galvaniz / Steel Wire Rope - Galvanized
3- K-2/3ACP Oval 3 hareketli oromatik karabina (Pimli) /
Oval Three step automatic steel carabiner with captive pin
4- E-7 Şok Emici / Energy Absorber
/ Product Components

Advertisement

loading
Need help?

Need help?

Do you have a question about the K-2025 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kaya Safety K-2025

  • Page 1 T: +33 (0) 4 76 53 52 22 DİKEY YAŞAM HATTI F: +33 (0) 4 76 53 32 40 VERTICAL LIFE LINE (TR) K-2025 Dikey Yaşam Hattı (Hat Üzerinde Şok Emicisiz) (EN) K-2025 Vertical Life Line (Without Energy Absorber Integrated) Ürün Kullanım Raporu Product Usage Report (TR) Ürün Bileşenleri...
  • Page 2 (TR) Malzeme Özellikleri (TR) Malzeme Özellikleri (EN) Material Specifications (EN) Material Specifications FS-40 Gerdirme Aparatı / Tensioner Malzeme: 316 Kalite Paslanmaz Çelik Material: 316 Quality Stainless Steel Kaplama: Elektro Polisaj Coating: Electro Polishing Mukavemet / Strength: 25 kN AP-300 C Üst Ankraj Plakası...
  • Page 3 (TR) Etiket (TR) Etiket (EN) Label (EN) Label LL-150 Yaşam Halatı Etiket Bilgileri / Lifeline Label Information 1- Marka / Trade Mark 5 6 7 8 9 10 2- Model / Model F-5 A Halat Tutucu Etiket Bilgileri / Rope Grab Label Information 3- Modelin kullanılabileceği Halat tutucu tipi / Rope Grab types where Kullanım yönü...
  • Page 4 4.2 Halat Tutucunun Sisteme Takılıp Çıkartılması Şekil -2.1 Düşüş Öncesi Şekil -2.2 Düşüş Sonrası * K-2025 Dikey yaşam hattı üzerinde şok emici yoktur ve bu moldelde sa- Figure - 2.1 Before Fall Figure - 2.2 After Fall dece F-5 A Şok emicili halat tutucu kullanılmalıdır.
  • Page 5 * Hatta bağlanırken veya çıkarken güvenli ortamda bulunulmalı ve ayrı bir Uyarı kişisel koruyucu donanım ile uygun emniyetin alınmalıdır. F-5 A şok emicisi polyester malzemeden imal edilmiştir. Maksimum kul- * Olası bir kurtarma çalışmasında askıda kalan personeli kurtarmak için lanım ömrü 5 yıldır. hatta ikinci bir personel girebilir ve kurtarma çalışmasını...
  • Page 6 4.2 Installing Rope Grab .Inspection must be performed based on following criterias;. * K-2025 models vertical life line have not shock absorber on the line and * All markings must be legible and attached to the product. F-5 A rope grab with energy absorber should be used in these types.
  • Page 7 6.2 During each use 7.7 Guarantee During performing the work at height if the equipment is connected with This product has 3-year guarantee against all material or manufacturing another system, make sure that all pieces of equipment in the system are defects under proper usage and storage conditions.
