SuperCELL® Model SC500-IC-GPS User's Information
GPS Antenna
Power
Menu
Button
Up 1
Message
Button
Up 5
Messages
Button

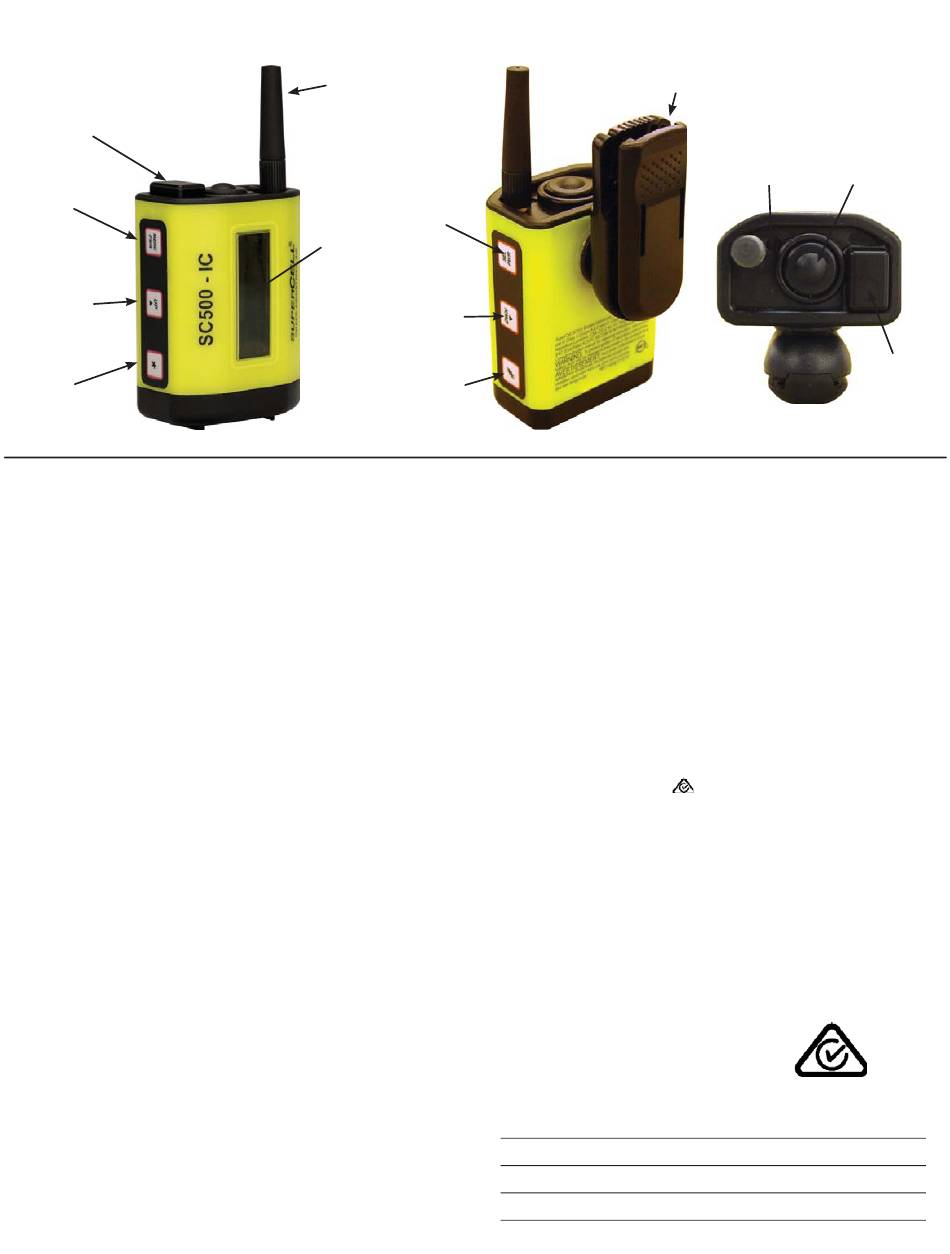

Front View
Introduction
SuperCELL® Model SC500-IC-GPS is an intrinsically safe,
high performance, RF-wireless, emergency signaling and
monitoring device, critical for Incident Commanders.
A self-contained GPS continuously tracks location and
transmits this location along with the user's status to other
Grace Telemetry products, including the MX900H.
SuperCELL® monitors distress alarm signals of fi re fi ghters
equipped with GRACE TPASS® devices. SuperCELL® can also
transmit Evacuate signals to all fi re fi ghter's TPASS® devices.
• Top Button EVAC: Pressing the top button sends an
Evacuate command to all other GRACE TPASS® and
SuperCELL® devices.
• Alarm Monitoring: Alerts the Incident Commander that
a GRACE Man-Down telemetry device, within signaling
range, is transmitting an alarm message.
• Panic ALARM: Manually activated Emergency Alarm.
• Man Down Alarm: An optional safety monitoring feature
which provides the Incident Commander with motion
sensing protection.
• Alarm Acknowledgment: When a SuperCELL® is in an
alarm condition, an Alarm Acknowledgment message
can be sent from an MX900 transceiver. This will clear the
alarm condition and display the Alarm Ack message.
• Canned Text Messaging: Allows Incident Commander
to send and receive pre-set Canned Text Messages to
other SuperCELL® devices and In-Command® monitoring
systems.
Grace Industries, Inc.
Antenna
LCD
Display
Features
Power
Select
Button
Down 1
Message
Button
Down 5
Messages
Button
Back View
• Model: SC500-IC-GPS, Incident Commander.
• Dimensions: 2-3/16" wide, 1-3/8" deep (without clip), 5"
high (with antenna).
• Weight: 5.6 oz.
• Internal Battery: 3.7 V nominal, 1960 mAh, intrinsically
safe, lithium-ion rechargeable.
• Device Run Time: Approximately 24 hrs. in Sensing Mode,
and 8 hrs. in Alarm Mode.
• Radio Frequency: ISM license free, spread spectrum.
• Battery Charger Operational Voltage: 120VAC or 12VDC.
Available international power adapters rated for 100-240VAC
input, with UL, FCC, CE,
• Battery Charge Time: 6 - 8 hrs.
• Certifi cations:
• Intrinsically Safe UL913, CSA C22.2 No. 157
• IP67
• Radio Certifi cations:
• FCC ID: J5XT3HEP
• IC: 5916A-T3HEP
• Australia / New Zealand: Compliant to ACMA AS/NZS
CISPR22:2006, Class A Digital Apparatus | AS/NZS 4268:2017
for Intentional Radiators
• EMC93142A-ACMA
• EMC93142A-AS/NZS 4268
Defi nition of Terms
1
Swive
Swivel Clip
Operation
Status LED
Specifi cations
safety ratings.
Table of Contents
EVAC
Button
GPS
Antenna
Top View
2
3
8
8
