Tekky MOURNING GORY Installation And Operating Instructions

INSTALLATION AND OPERATING INSTRUCTIONS
KEEP ALL PLASTIC AND WIRE PARTS AWAY FROM CHILDREN
1.
FRONT

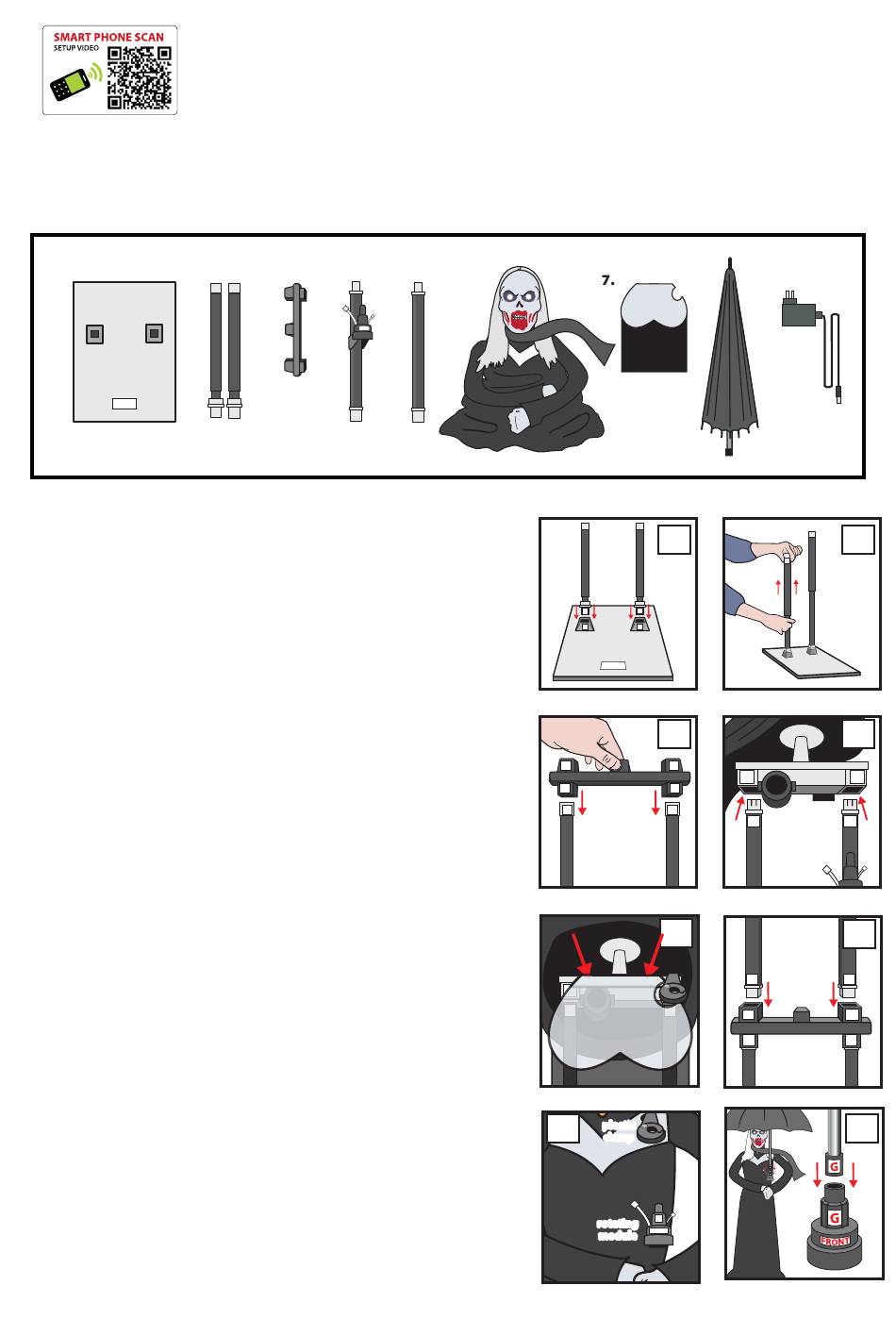

PARTS

1. WOODEN BASE
2. TELESCOPING METAL POLES (2)
3. MIDDLE PLASTIC PART
4. METAL POLE LEFT SIDE WITH ROTATING MODULE
5. METAL POLE RIGHT SIDE
6. HEAD WITH MODULE AND CLOTHING
7. BLISTER CHEST PIECE
8. UMBRELLA
9. ADAPTER
1. Snap lock the TELESCOPING METAL POLES to the WOODEN BASE.
(Match A to A)
NOTE: Keep Label "FRONT" facing you while assembling Mourning Gory™.
2. Holding the two TELESCOPING METAL POLES near the base, extend
the poles upwards with your other hand until both poles are locked into
place. The poles are fully extended when you hear two audible clicks.
3. Snap Lock the MIDDLE PLASTIC PART to the TELESCOPING METAL
POLES. (Match B to B)
4. Lift dress on HEAD WITH MODULE AND CLOTHING, then snap lock
METAL POLE LEFT SIDE and METAL POLE RIGHT SIDE into the MODULE.
(Match C to C and Match E to E)
With the dress lifted up, attach BLISTER CHEST using hook and loop
5.
fasteners to front portion of the MODULE in HEAD AND CLOTHING.
Snap Lock the METAL POLE LEFT SIDE and METAL POLE RIGHT SIDE with
6.
HEAD WITH MODULE AND CLOTHING into MIDDLE PLASTIC PART.
(Match D to D and F to F)
7.
Remove cardboard covering plastic clamp, then pull down dress and
pull ROTATING MODULE and plastic clamp through holes in dress and
BLISTER CHEST.
8. Open UMBRELLA and snap lock metal umbrella pole into the
ROTATING MODULE. (Match G to G)
MOURNING GORY
2. 3. 4. 5. 6.
7
™
8.
1
A
A
A A
FRONT
FRONT
3
F D
B B
B B
5
E C
E C
plastic plastic
clamp clamp
G
rotating rotating
FRONT
module module
9.
2
4
E C
E C
6
F D
F D
B B
8
G
G
