- Page 1 WISR Installation manual No. IM0973670 A 02 Art. No: 0300100 02/2019 English Art. No. 0300100...
- Page 2 PhotonView App • If there have been alterations or changes to this equipment that Camera EMOS Ethernet have not been specifically approved by Orlaco, use of this WISR system equipment is not permitted. • Warning! RF radiation. This device is using Radio Frequency (RF) signals to established a wireless video link.
-
Page 3: Table Of Contents

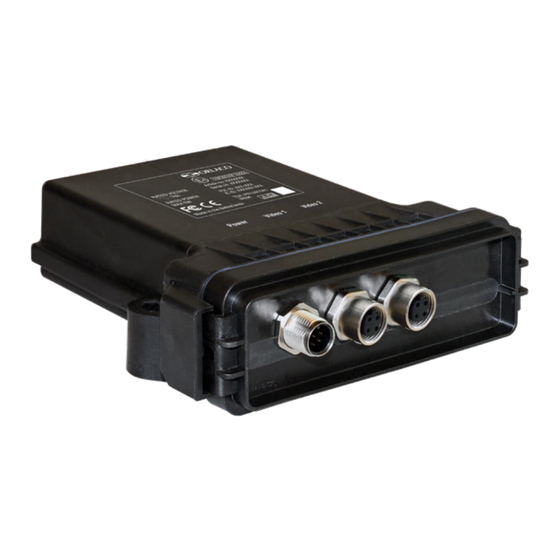

1. Introduction The WISR sytem provides a Wi-Fi connection within a view ® system. The WISR router is both a receiver and a transmitter. This document describes WISR system installation. List of abbreviations IP(-address) Internet Protocol (Address). Unique address inside a network. - Page 4 Installation manual Application possibilities of the WISR system, figure. 1. 2 camera system WISR router Power Wi-Fi ® Power Extension Tablet cable Power 4 camera system WISR router local (Truck cabin) Power Wi-Fi ® Power Tablet Wi-Fi ® Extension cable...
-
Page 5: Configuration
To create a Wi-Fi connection, there must always be a ® WISR router in the system. In a 2 camera system, one WISR router is connected with the tablet. For the 4 camera system a second WISR router set communicates with the other WISR router within a work zone. -
Page 6: The Photonview App
Manual UM0972260. Connect the camera video cables to the 4p connections on RATED POWER MAX 5W TDK: PR1A91DA1 the WISR router and the power cable with the 8p connector IP69K on the WISR router for the supply voltage. Power Video 1 Video 2 4.3 The photonView app... -
Page 7: Electrical Connections
Ingress protection: IP67 according to IEC 60529, IP69K Connector 4p female according to DIN 40050-9. 130,3 Certification RATED POWER Quality & environment: Unit manufactured by Orlaco in the MAX 5W TDK: PR1A91DA1 IP69K Netherlands; ISO 9001, ISO14001, IATF 16949. Power... -
Page 8: Maintenance And Cleaning
Installation manual 8. Maintenance and cleaning Clean this product with a damp cloth. Do not use aggressive chemicals or abrasive cleaning agents. 9. FCC Statement §15.21 Any changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate this equipment. -
Page 9: Disposal
This installation manual has been made available by Orlaco Products BV. All rights reserved. No part of this manual may be reproduced and/or made public in printed form, in photocopy form or on microfilm, or in any other way, without the prior written permission of Orlaco. This also applies to the associated drawings and figures. - Page 10 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the professional market that improve the drivers’ view and increase operating efficiency.
