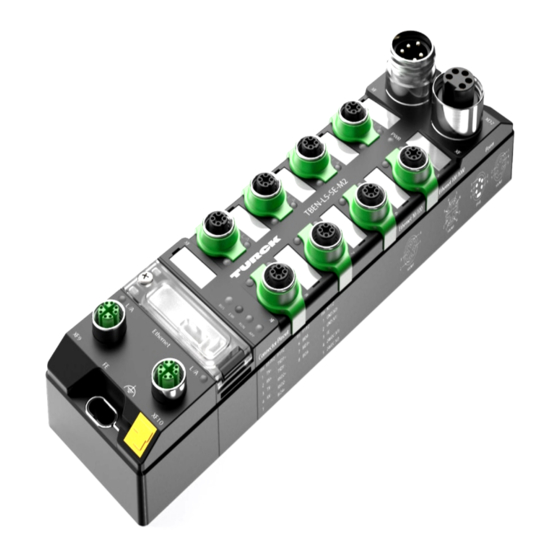

turck TBEN-L SE-M2 Series Instructions For Use Manual

10-port ethernet switch
Hide thumbs Also See for TBEN-L SE-M2 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Your Global Automation Partner
TBEN-L...-SE-M2
10-Port Ethernet Switch
Instructions for Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBEN-L SE-M2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for turck TBEN-L SE-M2 Series

Summary of Contents for turck TBEN-L SE-M2 Series

  • Page 1 Your Global Automation Partner TBEN-L…-SE-M2 10-Port Ethernet Switch Instructions for Use...
  • Page 2 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 3: Table Of Contents

    Securing device access with password .................. 16 Setting the IP address.................... 17 7.2.1 Setting the IP address via switches at the device............... 17 7.2.2 Setting the IP address with Turck Service Tool .............. 19 7.2.3 Setting the IP address via the web server ................ 22 V01.00 | 2019/12...
  • Page 4 Executing the firmware update via the web server ............ 57 12 Repair.............................. 57 12.1 Returning devices...................... 57 13 Disposal .............................. 58 14 Technical data ........................... 59 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 5: About These Instructions

    This symbol denotes actions that the user must carry out. RESULTS OF ACTION This symbol denotes relevant results of actions. Additional documents The following additional documents are available online at www.turck.com: Data sheet EU Declaration of Conformity Feedback about these instructions We make every effort to ensure that these instructions are as informative and as clear as pos- sible.

  • Page 6: Notes On The Product

    For further inquiries in Germany contact the Sales and Service Team on: Sales: +49 208 4952-380 Technology: +49 208 4952-390 Outside Germany, please contact your local Turck representative. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 7: For Your Safety

    The product is designed according to state-of-the-art technology. However, residual risks still exist. Observe the following warnings and safety notices to prevent damage to persons and property. Turck accepts no liability for damage caused by failure to observe these warning and safety notices.

  • Page 8: Product Description

    PROFINET Conformance Class A Multicasting via IGMP (Snooping/Querier) Single hop inter-VLAN routing HTTP, HTTPS, LLDP, NTP, SNMP V1 - V3 Port mirroring Firewall Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 9: Operating Principle

    Operating principle The Ethernet switch TBEN-L…-SE-M2 is used to set up Industrial Ethernet networks according to IEEE 802.3 and connects up to ten network segments with each other. The switch controls the data traffic within a network domain and forwards data telegrams specifically to connected devices.

  • Page 10: Routing

    The TBEN-L…-SE-M2 can log on or off by sending IGMP messages to a router to receive multicast telegrams. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 11: Mounting

    Mounting The TBEN-L module can be screwed onto a flat mounting plate. „ Attach the module to the mounting surface with two M6 screws. The maximum tighten- ing torque for the screws is 1.5 Nm „ Avoid mechanical stresses. „ Optional: Ground the device.

  • Page 12: Grounding The Device

    The shielding of the M12 flanges for the I/O level is connected to the reference potential of the installation via the M6 metal screw. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 13: Connecting

    Connecting Connecting network segments To connect the Ethernet network segments, the device has two 8-pin M12 Gigabit Ethernet connectors and eight 4-pin M12 Fast Ethernet connectors. The maximum tightening torque is 0.6 Nm. Gigabit ports (10/100/100 Mbps) Fig. 5: M12 Gigabit Ethernet connector „...

  • Page 14: Connecting The Power Supply

    V2, the LED PWR changes from green to red. In case of an undervoltage at V1, the LED PWR is turned off. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 15: Supply Concept

    6.2.1 Supply concept The device is supplied via V1. Fig. 12: Power supply TBEN-L…-SE-M2 V01.00 | 2019/12...

  • Page 16: Commissioning

    „ Adapt the password to the requirements of the network security concept of the system in which the devices are installed. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 17: Setting The Ip Address

    The IP address can be set via two decimal rotary coding switches and DIP switches on the device, via the web server or via the Turck Service Tool. The IP address of the WAN network zone on the switch can only be set via the web server.
  • Page 18 IP address: 192.168.1.254 Parameters Restore Enter the device name and the device's IP address. IP address: 192.168.1.254 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 19: Setting The Ip Address With Turck Service Tool

    Setting the IP address with Turck Service Tool NOTE The IP address can only be assigned using the Turck Service Tool if the switch is con- nected to the PC via one of its LAN ports. Connection to a WAN port is not possible.
  • Page 20 Fig. 16: Turck Service Tool – select the device to be addressed NOTE Clicking the IP address of the device opens the web server. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 21 Change the IP address and the network mask if necessary. „ Assume the changes by clicking Set in device. Fig. 17: Turck Service Tool – Change device configuration NOTE An IP address assigned vie the Turck Service Tool is not stored permanently in the switch. V01.00 | 2019/12...

  • Page 22: Setting The Ip Address Via The Web Server

    Configuration changes are only accepted after the configuration has been saved in the device. Ò „ Load configuration to the device via Configuration (changed) Make current configur- Ò ation persistant Save Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 23: User Management And Rights Assignment

    Ò Users are created in the web server under Maintenance Users. Security in the web server In the web server, a default-password is assigned in Turck-module for the administrator login. NOTICE Inadequately secured devices Unauthorized access to sensitive data „ Change password after first login. Turck recommends using a secure password.

  • Page 24: Adding A User

    „ Adapt the password to the requirements of the network security concept of the system in which the devices are installed. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 25: Parameterizing And Configuring

    Parameterizing and Configuring Configuring device functions with the web server NOTE Changes to the configuration of the device are stored non-fail-safe in the device. Un- saved configuration changes are displayed via the Nonpersistant Configuration ad- dition on the web server interface. In order to store a changed configuration fail- Ò...

  • Page 26: Ip - Assigning Ip Addresses

    On the IP Assignment page, the IP addresses for the LAN and WAN network zones are assigned. The assignment of the IP address via the web server is described in the chapter ”Commission- ing” [} 22]. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 27: Lan - Wan - Vlan - Configuring Network Zones

    8.1.3 LAN – WAN – VLAN – configuring network zones Zones In the Zones area, the Ethernet ports of the switch are assigned to the LAN or WAN network zones. If ports are assigned to the WAN, an IP address for the WAN must be assigned under IP. „...
  • Page 28 The packets contain VLAN information. Tagged VLANs allow multiple VLANs to be used on one switch port. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 29: Snmp - Setting Up Snmp

    8.1.4 SNMP – setting up SNMP SNMP configuration In the section SNMP Configuration the supported SNMP versions as well as the read and write communities for authentication with SNMP V1 and SNMP V2c are configured. „ Configure and transfer settings to the device with SET. SNMP User The SNMP User section contains a list of all users created under Add User for SNMP version 3.
  • Page 30 Under Community, specify the community to which the traps are to be sent. „ Send the configuration to the device via SET. Fig. 24: Web Server - adding users and configuring traps Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 31: Dhcp - Setting Up A Dhcp Server

    8.1.5 DHCP – setting up a DHCP server DHCP Server Configuration The section DHCP Server Configuration is used to configure the DHCP server in the device. „ Activate DHCP server via Enable. „ Use Pool Start and Pool End to define the IP address range from which the switch as- signs addresses to other network participants.
  • Page 32 Enter the MAC address of the device that will be permanently assigned this IP address. Fig. 26: Web server – assigning static IP addresses Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 33 Interface-based IP Assignment In the section Interface-based IP Assignment, Ethernet port-dependent IP addresses can be as- signed. The IP addresses are assigned independently of the device for the first connected device that sends a DHCP request. If further devices are connected to the port, these devices re- ceive an IP address from the DHCP address pool.

  • Page 34: Lldp - Configuring Neighborhodd Detection

    Fig. 29: Webserver – LLDP – neighboring devices RELOAD restores the original configuration of the LLDP settings. UPDATE NEIGHBORS updates the list of adjacent devices. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 35: Qos - Prioritizing Or Classifying Data Packets

    8.1.7 QoS - prioritizing or classifying data packets Interface Settings In the section Interface Settings the prioritization or classification of data packets can be set port by port. Function Value Meaning 1…10 Prio Choice Default Telegrams are processed according to default prior- itization/classification.
  • Page 36 Fig. 30: Web server – QoS: port-wise prioritization of telegrams „ Set the prioritization for Ethernet ports. „ Accept the changes via SET. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 37 PCP Ò Queue Mapping Ò In the section PCP Queue Mapping it is defined to which output queues telegrams are as- signed based on their PCP priorities. Fig. 31: Web server – QoS: PCP queue mapping „ Set the queue mapping „...
  • Page 38 DSCP values. Fig. 32: Webserver – QoS: DSCP queue mapping „ Set the queue mapping. „ Accept the changes via SET. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 39 DSCP Ò PCP Mapping Ò In the section DSCP PCP Mapping, the DSCP entries are assigned to PCP priorities. In the fol- lowing example, telegrams that were classified via a DSCP of 5 received the highest priority (7). Ò Fig. 33: Web server – QoS: DSCP PCP queue mapping „...

  • Page 40: Mirroring - Configuring The Mirroring Of Switch Ports

    Activate the desired mirroring at the switch ports XF1...XF10. „ Transfer settings to the device via SET. Fig. 34: Web server - configuring mirroring Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 41: Redundany - Configuring Network Redundancy

    8.1.9 Redundany – configuring network redundancy (R)STP Variant The section (R)STP Variant defines which network redundancy protocol [} 9] is used in the net- work zones LAN, WAN, LAN-VLAN and WAN-VLAN. „ Select the network redundancy protocol. „ Send the configuration to the device via SET. 8.1.10 Routing –...

  • Page 42: 8.1.11 Firewall - Configuring Firewall Rules

    Set up first Incoming Rule, which allows access via port 433 for HTTPS: Fig. 36: Web server - enable access via HTTPS „ Create firewall rule via SAVE. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 43 „ Set up second Incoming Rule that blocks access via HTTP (port 80): Fig. 37: Web server - block access via HTTP „ Create firewall rule via SAVE. Fig. 38: Web server – incoming rules V01.00 | 2019/12...

  • Page 44: 8.1.12 Nat- Configuring Nat/Pat Rules

    Defines for which telegrams the rule applies (TCP, UDP, all = OFF). Incoming Dest. Port Port number of the service (e.g. web server = port 80) Outgoing Dest. Port Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 45 „ Sett the NAT/PAT rule. „ Add the rule via ADD and send the rule to the device via SET. Example: From a PC in the company network (LAN: 192.168.1.0) is sent via a defined IP address (Destina- tion IP) to the web server of a TBEN-L5-PLC-10 (Original IP: 12.222.2.95) in a plant network (WAN: 12.222.2.0) is accessed.

  • Page 46: 8.1.13 Igmp - Configuring Multicast

    Send settings to the device via SET IGMP. Active IGMP The Active IGMP table shows all active IGMP requests and responses from connected devices. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 47: 8.1.14 Ntp - Configuring The Time Server

    8.1.14 NTP - configuring the time server „ Enable time synchronization via NTP server with enable. „ Define NTP time server using the IP address of the server. In this example, the time server of the TU Berlin with the IP address 130.149.17.21 is used. „...

  • Page 48: 8.1.15 Configuration - Accept, Reset, Load Or Download The Configuration

    Accept changed configuration via Make current configuration persistent as permanent configuration. Resetting the configuration to default configuration „ Restore configuration via Reset current configuration to defaults. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 49: Downloading The Configuration To The Device Via Usb Stick

    Downloading the configuration to the device via USB stick The configuration is transferred via a USB stick using a command file (cmd.json). The file is avail- able on the product page of the switch at ww.turck.com or can be created in a text editor as shown below.
  • Page 50 Turck recommends using the industrial USB stick USB 2.0 In- dustrial Memory Stick (Ident no. 6827348). Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 51: Operating

    Operating LED displays The device has the following LED indicators: Power supply Status NOTE The Ethernet ports XF1...XF10 each have an LED L/A. LED L/A Meaning No Ethernet connection Green Ethernet connection established, 100 Mbps Yellow Ethernet connection established, 10 Mbps Green flashing Data transfer, 100 Mbps (XF1…XF8) or respectively 1000 Mbps (XF9 and XF10)

  • Page 52: Monitoring Function

    (name, firmware version, etc.) and the current device settings (VLAN, DHCP, routing, etc.). A click on the respective entries opens the corresponding configuration page. Fig. 42: Web server - overview Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 53: Monitoring - Counter (Network Load Monitoring)

    9.2.2 Monitoring – Counter (network load monitoring) The Counter page shows all sent and received telegrams as well as the calculated network load in percent. The values can also be displayed graphically. „ Select the values to be displayed graphically by double-clicking them. „...
  • Page 54 Operating Monitoring function The values are displayed graphically. Fig. 44: Webserver - Counter (graphical representation) Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 55: Cable Diagnostics

    Cable diagnostics The cable diagnostics detects cable breaks in the Ethernet line. „ Select the Ethernet ports for which line diagnostics are to be performed. „ Start line diagnostics via START CABLE DIAGNOSTCS. The lines on the selected Ethernet ports are checked. Cable breaks are detected and localized wire by wire.

  • Page 56: Troubleshooting

    If there are no faults, there is a device malfunction. In this case, decommission the device and replace it with a new device of the same type. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 57: Maintenance

    Observe our return acceptance conditions when returning the device to Turck. 12.1 Returning devices Returns to Turck can only be accepted if the device has been equipped with a Decontamination declaration enclosed. The decontamination declaration can be downloaded from https://www.turck.de/en/retoure-service-6079.php and must be completely filled in, and affixed securely and weather-proof to the outside of the packaging.

  • Page 58: Disposal

    Maintenance Disposal The devices must be disposed of correctly and must not be included in normal household garbage. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 59: Technical Data

    Technical data Technical data Power supply Supply voltage 24 VDC Permissible range 8…30 VDC Connectors Ethernet 2 x M12, 8-pin, X coded 8 x M12, 4-pin, D coded Power supply TBEN-L4-… X1: 7/8“ male connector, 4-pole X2: 7/8“ female connector, 4-pole TBEN-L5-…...
