ShoreTel SHOREPHONE POE Manual


Safety Information
Important Safety Information
♦
The SHOREPHONE POE should be connected to PoE
networks only, without routing to the outside plant.
♦
Only qualified personnel can install or remove the
SHOREPHONE POE.
♦ AC Power Cord Set:

The power cord must have regulatory agency approval for
the specific country in which it is used (for example UL,
CSA, VDE, etc.).

The power cord must be a three-conductor type (two
current carrying conductors; one ground conductor)
terminated on one end by an IEC 60320 appliance coupler
(for connection to the SHOREPHONE POE), and on the
other end by a plug containing a ground (earthing) contact.

The power cord must be rated for a minimum of 250 VAC
RMS operation, with a minimum rated current capacity of
5 amps (or a minimum wire gauge of 18 AWG (0.75 mm
: A SHOREPHONE POE installed in Australia requires
power cords with a minimum wire gauge of 16 AWG (1.0 mm

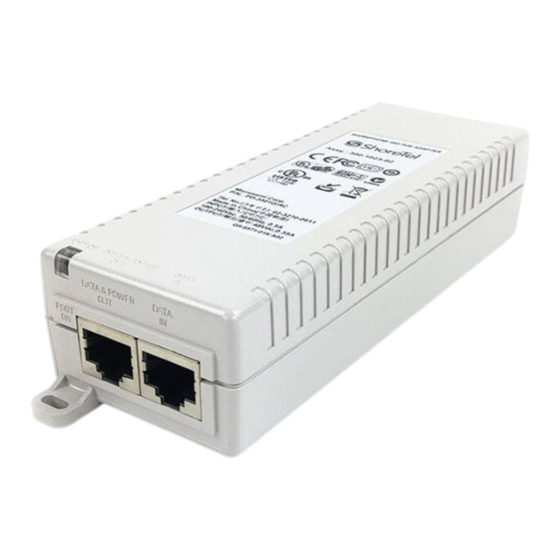

: The SHOREPHONE POE "DATA IN" and "DATA &
POWER OUT" ports are shielded RJ45 data sockets. They
cannot be used as Plain Old Telephone Service (POTS)
telephone sockets. Only RJ45 data connectors can be connected
to these sockets.
♦
The AC wall socket-outlet must be near the
SHOREPHONE POE and easily accessible. You can
remove AC power from the SHOREPHONE POE by
disconnecting the AC power cord from either the wall
socket-outlet or the SHOREPHONE POE appliance
coupler.
♦
The SHOREPHONE POE DATA IN and DATA &
POWER OUT interfaces are qualified as Safety Extra-
Low Voltage (SELV) circuits according to IEC 60950-1.
These interfaces can only be connected to SELV
interfaces on other equipment.
WARNINGS!
♦
The SHOREPHONE POE should only be connected to
the IP device with which it was bought. Using the
SHOREPHONE POE with other IP devices can cause
damage to the IP device.
♦
Read the installation instructions before connecting the
SHOREPHONE POE to its power source.
♦
Follow basic electricity safety measures whenever
connecting the SHOREPHONE POE to its power
source.
♦
A voltage mismatch can cause equipment damage and
may pose a fire hazard. If the voltage indicated on the
label is different from the power outlet voltage, do not
connect the SHOREPHONE POE to this power outlet.
♦
The unit can be used only in Restricted Access
Locations.
Recycling and Disposal
Disposal instructions for old products. The WEEE
(Waste Electrical and Electronic Equipment)
national environmental initiatives has been put
in place to ensure that products are recycled
using best available treatment, and recovery
and recycling techniques to ensure human
health and high environmental protection. Your
product is designed and manufactured with
high quality materials and components which
can be recycled and reused. Do not dispose of
your old product in your general household
waste bin. Inform yourself about the local
separate collection system for electrical and
electronic products marked by this symbol:
2
).
Use one of the following disposal options :
1. Dispose of the complete product (including
2
).
its cables, plugs and accessories) in the
designated WEEE collection facilities.
2. If you purchase a replacement product,
return your older product (including all
components) back to the retailer. The retailer
should accept it as required by the national
WEEE legislation.
 2011 ShoreTel Inc.
Ordering information:
• Product Name: SHOREPHONE GIG POE ADAPTER
• Part Number: 300-1023-02
Document P/N: PD-3501G-AC-STL_UG Rev. A01
S S H H O O R R E E P P H H O O N N E E G G I I G G P P O O E E A A
U s e r G u i d e
U s e r G u i d e
Notice
It is ShoreTel's policy to improve its products as new
technology, components, software, and firmware become
available. ShoreTel, therefore, reserves the right to change
specifications without prior notice.
Technical Support
If you encounter problems when installing or using this
product, please consult the ShoreTel website at:
http://support.shoretel.com
D D A A P P T T E E R R
