The universal DIN-rail holder can be mounted vertically or horizontally according to the application and is suitable also for wall or ceiling mounting.
The DIN-rail is depth-adjustable, the 19" 4U mounting brackets are pre-assembled and height adjustable in built-in condition.
(For installation instructions please refer to page 2)
• For carrying DIN-rail components
• Complies with DIN EN 60715 TH35 (35x7.5mm)
• Width of DIN-rail 435 mm
• DIN-rail depth-adjustable continiously from ca. 55 .. 165 mm
• Rear-sided C-rail for cable fixing, height-adjustable
• DIN-rail mountable also horizontally
• Also suitable for wall and ceiling mounting
19" 4U Universal DIN-Rail Holder
for vertically, horizontally, wall- and ceiling mounting

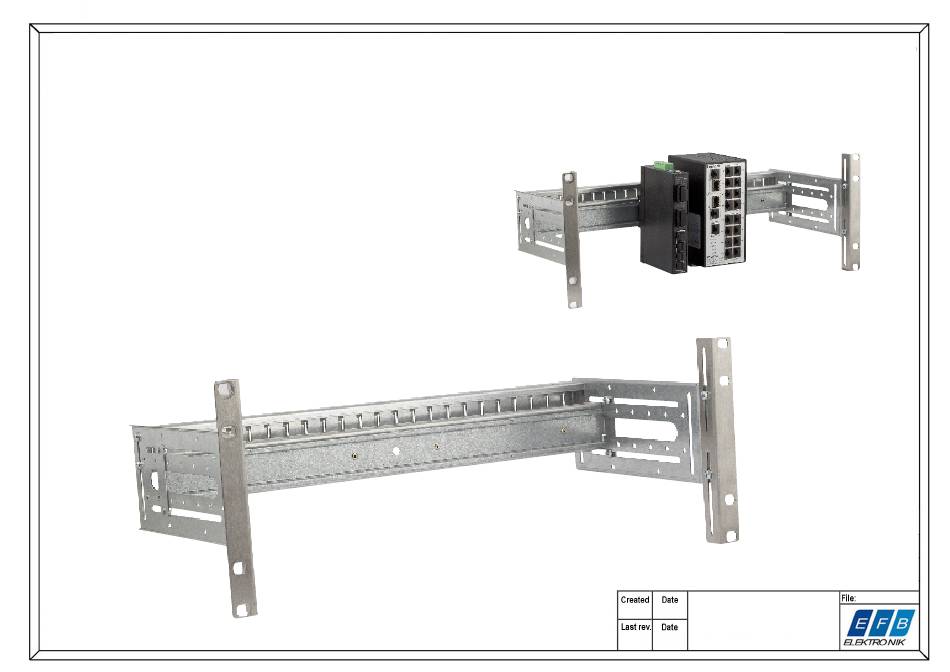

application example
(delivery without components)
Page 1/2
Universal DIN-Rail Holder
MN
07.06.13
19" / 4U
53719.1
BT
27.08.13
RoHS
conform
53719_1_ENG
