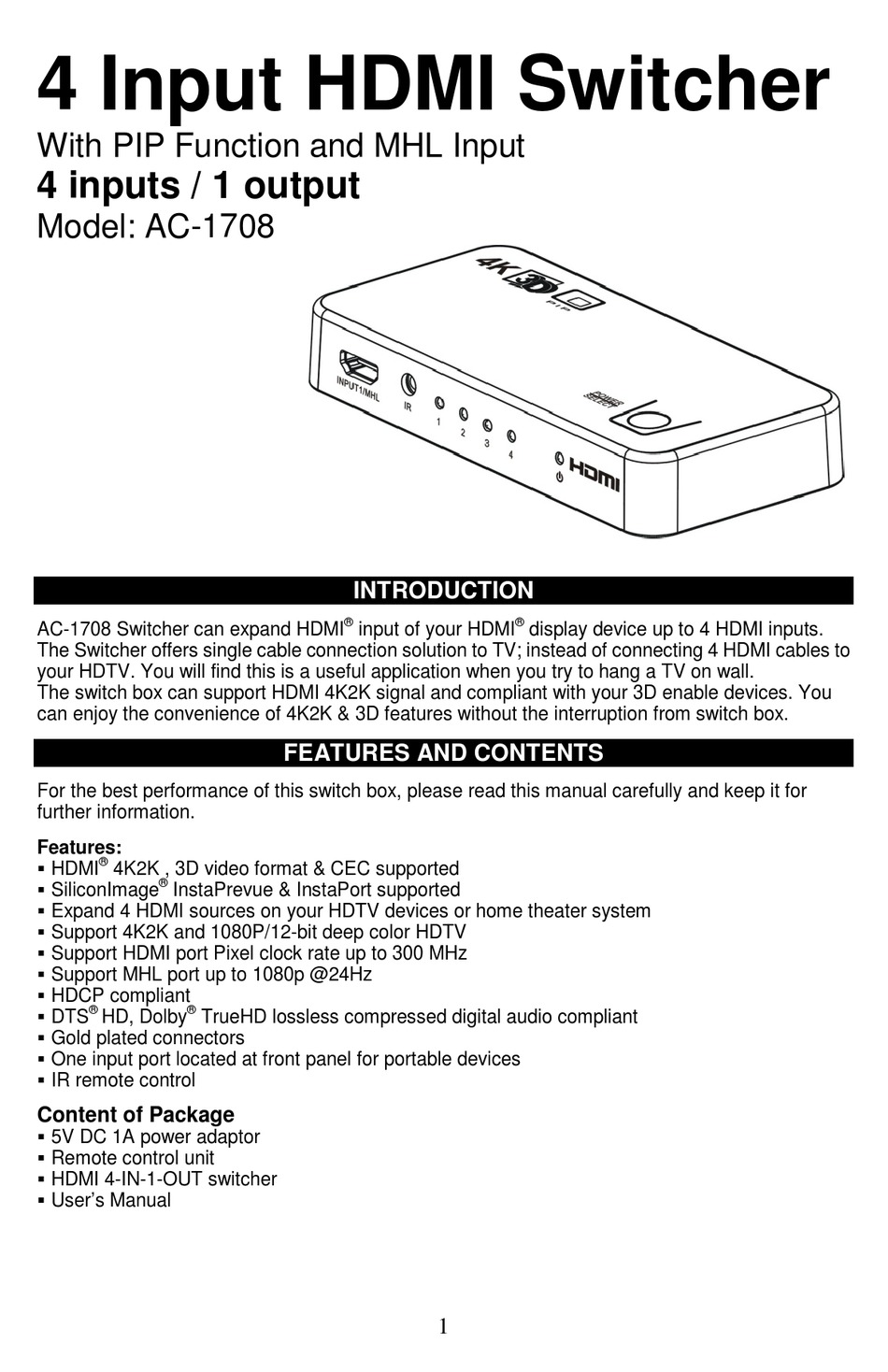

Jaycar AC-1708 User Manual

4 Input HDMI Switcher
With PIP Function and MHL Input
4 inputs / 1 output
Model: AC-1708

INTRODUCTION

® ®
AC-1708 Switcher can expand HDMI input of your HDMI display device up to 4 HDMI inputs.
The Switcher offers single cable connection solution to TV; instead of connecting 4 HDMI cables to
your HDTV. You will find this is a useful application when you try to hang a TV on wall.
The switch box can support HDMI 4K2K signal and compliant with your 3D enable devices. You
can enjoy the convenience of 4K2K & 3D features without the interruption from switch box.

FEATURES AND CONTENTS

For the best performance of this switch box, please read this manual carefully and keep it for
further information.
Features:
®
 HDMI
4K2K , 3D video format & CEC supported
®
 SiliconImage
InstaPrevue & InstaPort supported
 Expand 4 HDMI sources on your HDTV devices or home theater system
 Support 4K2K and 1080P/12-bit deep color HDTV
 Support HDMI port Pixel clock rate up to 300 MHz
 Support MHL port up to 1080p @24Hz
 HDCP compliant
® ®
 DTS
HD, Dolby TrueHD lossless compressed digital audio compliant
 Gold plated connectors
 One input port located at front panel for portable devices
 IR remote control
Content of Package
 5V DC 1A power adaptor
 Remote control unit
 HDMI 4-IN-1-OUT switcher
 User's Manual
