Please read the instruction manual before use, in order to properly install and use!
1. User Instructions
1.1. Check if the device is of the correct model and has complete accessories
(1 * GPS Tracker, 1 * USB Cable, 1 * Tweezer, 1 * Hang Rope, 1 * User Manual)
1.2. Prepare a GSM Micro SIM card, and activate data flow, GPRS and caller ID function.
1.3. Switch on the device: Press the power button for 3 seconds to turn on the device
1.4. Switch off the device: When there is SIM card inside, you can only shutdown remotely on APP;
when there is not SIM card inside, long press the power button to switch off the device.
1.5. Power charge: insert the USB cable and connect to computer or adaptor for recharge
1.6. Insert sim card:
2. Product Function
l
GPS+BDS+LBS+WIFI locating
l
Historical track(Locus)
l
Geofence
l
SOS emergency call
l
Low power alert
l
Remote monitor
l
Multiple work modes
l
Free APP for Android and IOS mobile phones
l
Universal Globally: support GSM Quad Band 850/900/1800/1900MHz
3. Product Parameters
LETRACK01K
User Manual
1
Advertisement
Table of Contents
Summary of Contents for Leotec LETRACK01K

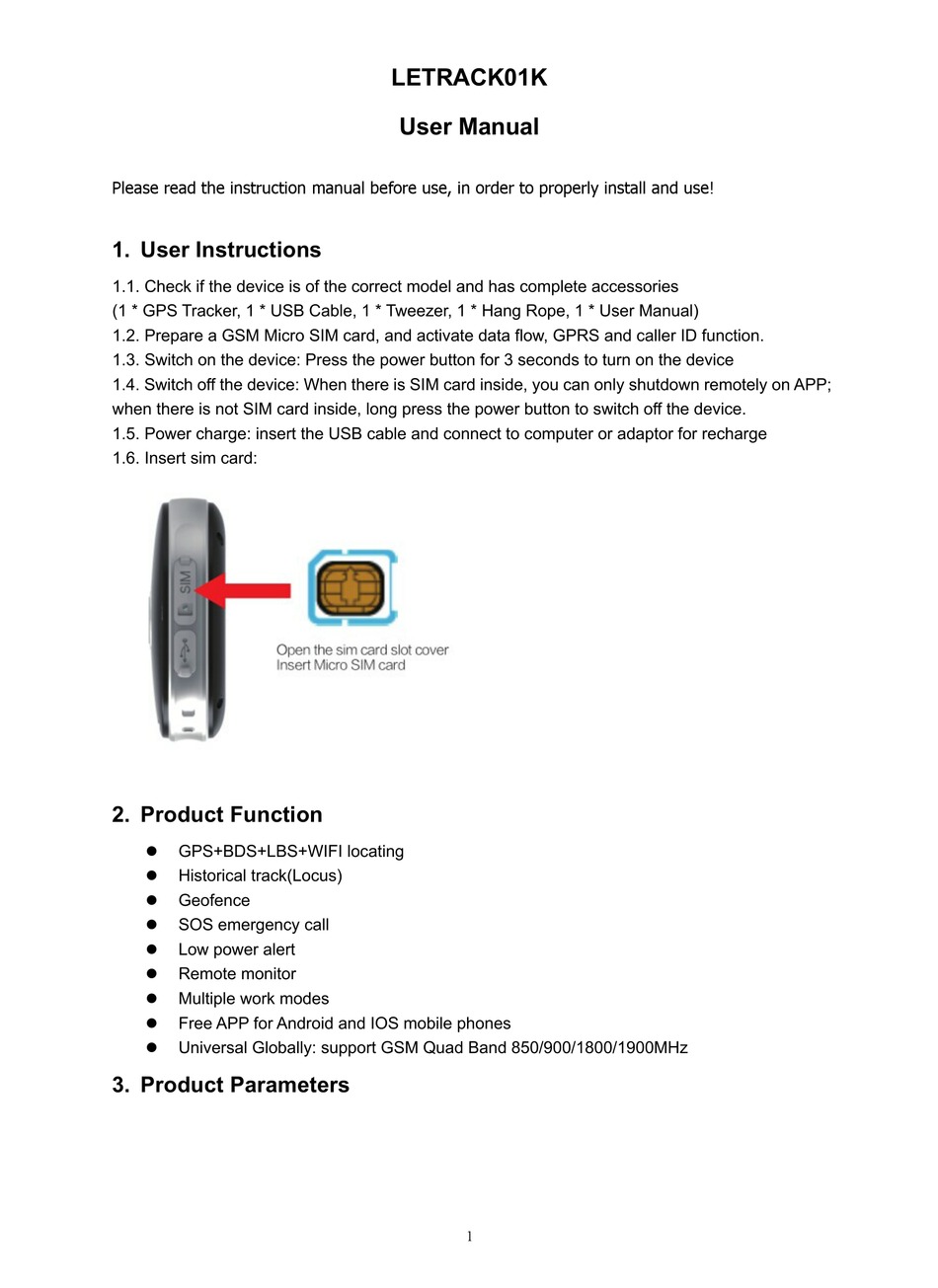

- Page 1 LETRACK01K User Manual Please read the instruction manual before use, in order to properly install and use! 1. User Instructions 1.1. Check if the device is of the correct model and has complete accessories (1 * GPS Tracker, 1 * USB Cable, 1 * Tweezer, 1 * Hang Rope, 1 * User Manual) 1.2.
- Page 2 Location mode: GPS+BDS+AGPS+LBS+WiFi Location accuracy: GPS/BDS: 5-15m; LBS: 100-1000m Device Size: 50*33*15mm Battery capacity: 400mAh Standby time: 3 days 4.Operation Guide 4.1. work mode The device has three work modes, users can change work modes via the APP settings. 1. Follow mode ( 1 minute interval): the device will update location information every minute, it consumes more power under this work mode.
- Page 3 button, the device will automatically call the preset SOS numbers for help. 5. Button instructions 5.1. While the device is off and charged, press the power button to turn on the device 5.2. Users can turn off the device by pressing the button only when the device is offline. 6.
- Page 4 7.3. Open the APP, input account and password, then login.
- Page 5 Main interface 8. Declaration Thanks for purchasing the device, the device functions are realized by using both hardware and software (APP). Please read the instructions carefully to assure correct usage. You can refer to the help on the APP for more details. Users will be exempted from the guarantee if disassemble the device on their own.
- Page 6 Note: The LEPFITF01 device may contain links to websites or websites operated by third parties outside LEOTEC and / or World Driver S.A .. These links are incorporated and are accessible for your information, LEOTEC and / or World Driver S.A. They are not responsible for their availability, content, adequacy or accuracy.
