MANUAL
Art.Nr.: 0314074 / 0314074P

Advertisement

loading
Need help?

Need help?

Do you have a question about the STRATON and is the answer not in the manual?

Questions and answers

Related Manuals for Staufenbiel STRATON

Summary of Contents for Staufenbiel STRATON

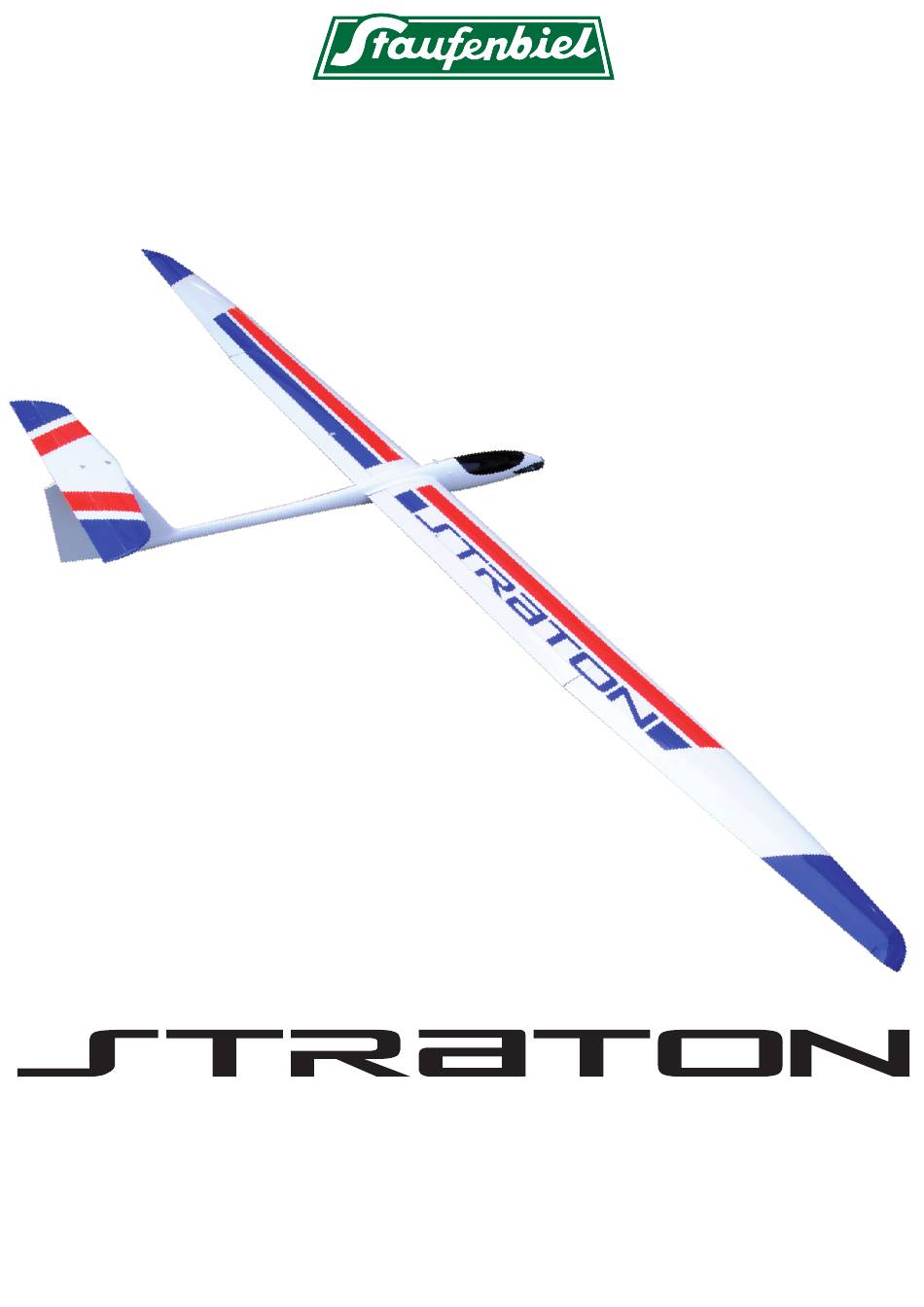

  • Page 1 MANUAL Art.Nr.: 0314074 / 0314074P...
  • Page 2 Manual Straton Specifications: r/c functions: • Span: 5000 mm • Aileron • Length: 2250 mm • Elevator • Wing area: 165 dm² • rudder • flying weight: 8700 g • Motor • Airfoil: HQ/W-2,5/12 - 2,5/11 - 3/10,5 • flaps...

  • Page 3: Safety Precautions And Warnings

    Do not use with incompatible compo- nents or alter this product in any way outside of the instructions provided by Gustav Staufenbiel GmbH. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

  • Page 4: Box Content

    Manual Straton Box content...
  • Page 5 Manual Straton Aileron Locate all parts for this step. Please note the aileron ruderhorn is 10mm longer than the other to ensure an optimal linka- center the servo with a servo tester. Add threadlock to the servo screw and install the servohorn perpen- dicular.
  • Page 6 Manual Straton Use sandpaper to sand the bottom of the wing and the servo mount. route the servo cable in the wing and glue the the servo mount with the installed servo in the wing. We recommend Uhu Endfest 300. Plese note that this glue takes several hours to cure.
  • Page 7 Manual Straton drill with a 4mm drill a vertical hole with 8mm depth. Glue the ruder horn with epoxy. The distance of the linkage hole in the rudder horn to the surface should be 12mm. Please take care that you not glue deeper as the rudder throw will be limited.
  • Page 8 Manual Straton Use a Z-Bender pliers for the aileron rod. cut the rod 10mm be- hind the Z- bend. Install the z-Bend in the outermost hole of the ser- vo horn. Enlarge the hole if needed. connect the clevis to the rudder horn.
  • Page 9 Manual Straton flaps Locate all parts for this step. Install the servo arm perpendicular. cut the servo cable to 5cm lenght. remove any arm that may interfere with the operation of the servo. Enlarge the second hole to 1,6mm.
  • Page 10 Manual Straton The flaps will be actua- ted through the top of the wing. Use a round file to prepare a channel for the linkage. Enlarge the hole at the exit in the direction to the hinge, that the lin-...
  • Page 11 Manual Straton Glue the ruderhorn with epoxy. The ruderhorn should stick nearly to the flat area in the flap. Sand the bottom of the wing and the servo mount thoroughly. Pull the cable of the aileron servo and a female servo connector through this part of the wing.
  • Page 12 Manual Straton fix the flap to the maxi- mum up position (Speed position) . Adjust the servo to the maximum throw with the servo horn facing to the leading edge of the wing. Mark the linkage for the Z-Bender. Use a Z-Bender pliers on the marking.
  • Page 13 Manual Straton The cover is attached to the wing using clear tape. Use hobby scissors to trim the cover and glue it. Solder a Multiplex con- nector to the servo cable.
  • Page 14 Manual Straton fuselage Prepare two cable har- nesses with a lenght of 50-60cm. route the cable harness through the fuselage and glue it flush with the wing cheeks of the fuselage. Please sand the connector before you start gluing.
  • Page 15 Manual Straton Sand the Multilock sleeve and glue it flush to the fuselage. Install the elevator to the fuselage. Use the alumi- nium washers and make sure that the elevator is perpendicular to the rudder. for assistance to glue the fuselage you will find plywood parts.
  • Page 16 Manual Straton Sand all parts thoroughly that will have contact with glue. Apply enough Uhu Endfest to the adhesive surfaces and join the fuselage parts. Position the fuselage a shown on the device. The fuselage must have contact on the three points marked...
  • Page 17 Manual Straton Adjust the elevator paral- lel to the wing joiner and let the expoxy cure. rudder Install four cyano hinges in the rudder.
  • Page 18 Manual Straton Attach the rudder to the fuselage and apply from both sides thin cA to the hinges. Let the cA cure for 30 minutes and dont use activator. dont use medi- um or thick cA as this will not soak in the hinges.
  • Page 19 Manual Straton route the cable end through the eye bolt and fasten it with the ferrule. route the eye bolt from the back of the fuselage and turn it on a clevis. connect the clevis in the outermost hole of the servo.
  • Page 20 Manual Straton drill a 3mm hole. Glue the rudder horn as shown on the picture. Pull a piece of 3mm Heat- shrink tube on the cable.
  • Page 21 Manual Straton route the cable through the rudder horn and fix it with a ferrule. Pull the heatshrink tube on the ferrule and shrink Elevator Locate all parts for instal- ling the elevator servo.
  • Page 22 Manual Straton Shorten the servo cable to the lenght of 5cm. Prepare a servo horn with one hole. Glue the servo horn in the center to the flat area in the rudder. route the servo extensi- on cable in the fuselage.
  • Page 23 Manual Straton Bend the rod. Glue the carbon tube on the rod to reinforce the linkage. Install the linkage and fasten the servo in the servo mount.
  • Page 24 Manual Straton Servo connector and Multilock cover the area around the MPX connector with Tesa tape. Please sand the con- nector before you start gluing. Apply Epoxy on the markings and as- sembly the wing on the fuselage while the epoxy cures.
  • Page 25 Manual Straton Apply some epoxy to the socket of the multilock a install the pin in the socket. Assembly the wing on the fuselage and let the epoxy cure. Use the same process on the outer wings. Motor Install the motor and use threadlock.
  • Page 26 Manual Straton c.G. (center of Gravity): 110-120 mm back from the leading edge of the wing against the fuselage. control throws: flight Mode function Normal / (Brake) Thermal Speed Aileron U 30 mm, d 18 mm (U 25 mm) Elevator...

  • Page 27: Declaration Of Conformity

    STAUFENBIEL Gustav Staufenbiel GmbH, Hanskampring 9, 22885 Barsbüttel, Germany CEO: Klaus Breer, Jörg Schamuhn Tel.: +49 40-30061950, eMail: info@modellhobby.de, Webside: www.modellhobby.de Copyright © Gustav Staufenbiel GmbH...
