Mincey Marble Napoli Series Installation Instructions Manual

Installation Instructions for Mincey Marble Manufacturing's
Reversed Napoli Straight Barn Door Shower Enclosures

MATERIALS / TOOLS NEEDED CHECKLIST

PRE-INSTALLATION PIECES / PARTS LIST

ENCLOSURE SYSTEM INSTALLATION
ATTENTION: Prior to starting the installation, please read through these instructions. This will
help avoid any unneccesary breakage. Any breakage due to handling or installing this enclosure
system is the responsibility of the installer and is not covered under the Mincey Warranty. Mincey
recommends that two people are used to install this shower enclosure system due to the weight
and fragility of the glass panels. Mincey also recommends that you protect the glass, especially
the bottoms, and the shower pan during installation. If your doors have frosted glass, the frosted
side of the glass goes to the outside of the shower.
These installation instructions apply to the Mincey Reversed Napoli Straight Barn Door Shower Enclosure System.
The Reversed Napoli Straight Barn Door Shower Enclosure System is to be used when the shower door closes
opposite the shower head and wet wall. In these instructions we are going to use an example with a 58" wide
All Drawings Are Not To Scale.

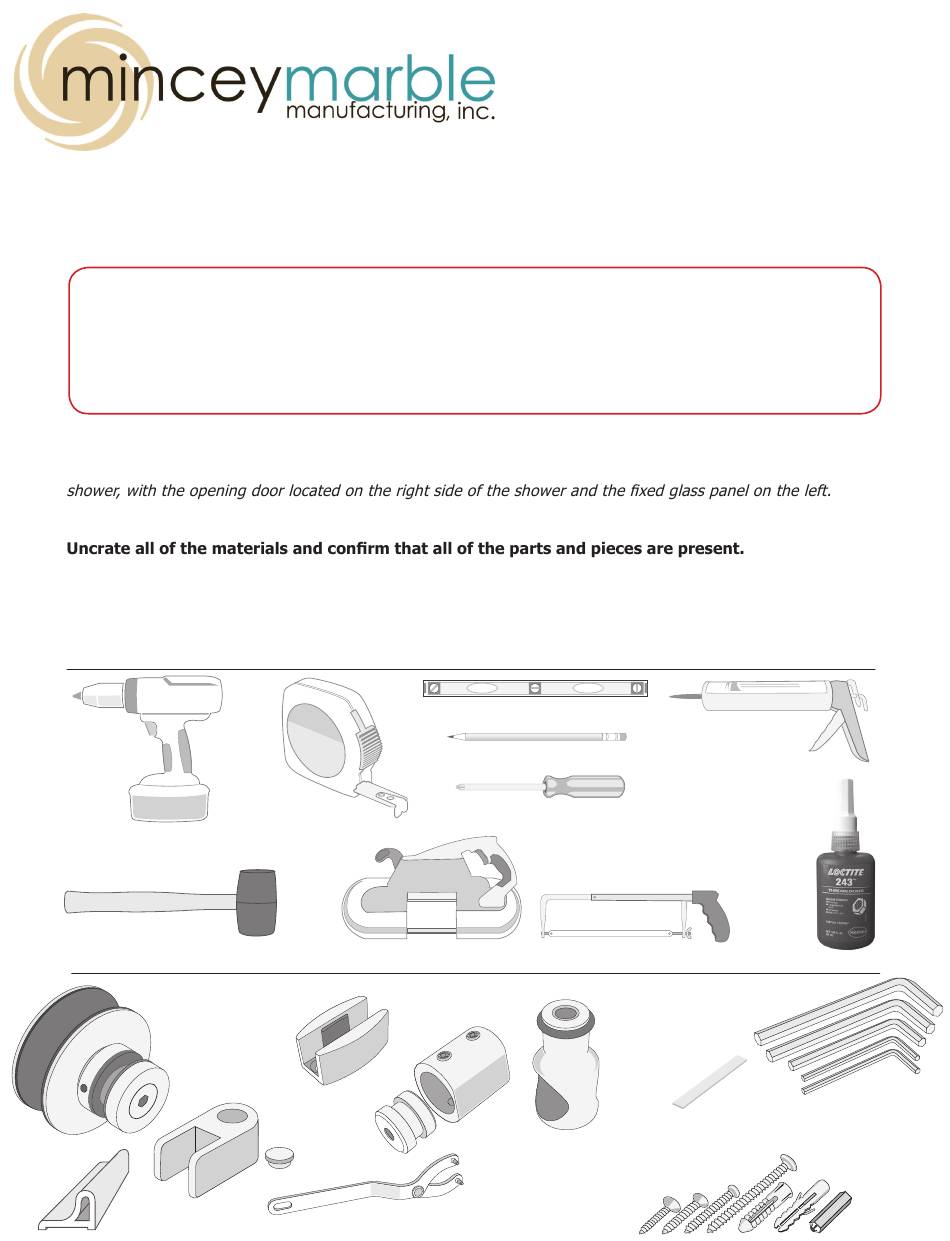

Tools are listed below. The contents of the Hardware Kit are listed below. The Parts Diagram is on the following
page. Before you begin the installation, make sure that all of the pertinent surfaces are clean and free of dust,
debris and any shavings. After you perform any drilling, you will want to make sure the surfaces are clean again
- this includes the Shower Pan and the Shower Panel Walls.
MATERIALS / TOOLS NEEDED
DRILL (CORDED OR CORDLESS),
3/16" 1/4" & 5/16" MASONRY
DRILL BITS
RUBBER MALLET
INCLUDED IN THE HARDWARE KIT
ROLLERS QTY: 4
DIVERTER
BAR QTY: 1
TAPE MEASURE
DOOR GUIDE QTY: 1
(Set to position 12 on
bottom)
FIXED GLASS
BRACKET QTY: 1
GUIDE RAIL HOLDER TOOL QTY: 1
LEVEL
PENCIL
PHILLIPS HEAD SCREWDRIVER
PORTABLE BAND SAW
(PREFERRED METHOD)
- OR - HACK SAW
GUIDE RAIL
END CAPS
QTY: 2
DOOR STOPS
QTY: 2
FLAT HEAD SCREWS:
1 1/8 X 3/16" (QTY: 2)
1 1/8 X 1/8" (QTY: 5)
Mincey Marble Mfg., Inc.
1940 New Harvest Road
Gainesville, GA 30507
www.minceymarble.com
The Required
CAULK GUN,
100% SILICONE
LOCTITE
BLUE 243
THREADLOCKER
ALLEN WRENCHES:
1/4", 3/16", 1/8", 5/32", 3/32"
CLEAR SETTING
BLOCKS
QTY: 4
WALL ANCHORS:
5/16" (QTY: 2)
PAN HEAD SCREWS:
LIGHT BLUE
1 1/4 X 1/8" (QTY: 2)
2 X 3/16" (QTY: 2)
Ph: 800.533.1806
Fx: 770.531.0935
5/16" (QTY: 2)
CLEAR
3/16" (QTY: 7)
GREEN
