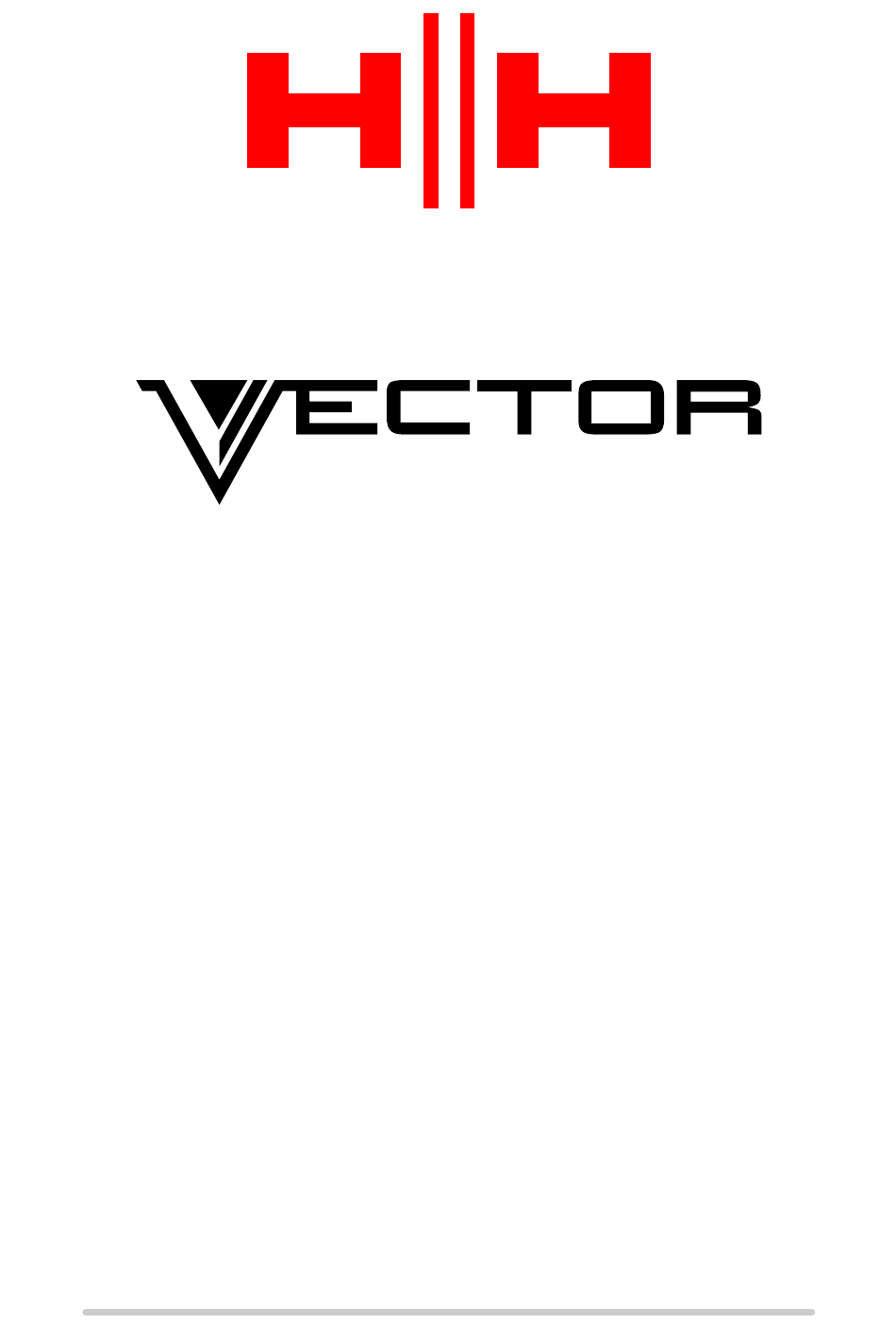

- Page 1 ACTIVE SPEAKER SYSTEMS VRE-8AG2 VRE-12AG2 VRE-15AG2 USER MANUAL...
- Page 2 INTRODUCTION The HH Vector range of active enclosures are designed for high performance in a wide variety of demanding audio applications; and as such, ideally suited for uses in classrooms, business seminars and presentations, worship meets, parties, bars, BBQ's and musical performances.
- Page 3 VRE-8AG2 A versatile onboard 1. MEDIA PLAYER: player accepting SD card, USB thumb drive and connection via Bluetooth. In addition to this, a second cabinet can be connected via Bluetooth using the TWS (True Wireless Stereo) feature. See page for more information.
- Page 4 VRE-12AG2 VRE-15AG2 1/2. CH1 and CH2: Mono Input channels. 3. LEVEL: Use the Level control to set the channel CH 1 CH 2 CH 3 MASTER volume. 4. LINE INPUT: An unbalanced input - for higher output line level devices eg. - keyboard, processor, drum machine.
-
Page 5: Media Player
On your Bluetooth capable device, make sure Bluetooth is enabled. Scan down the list of available devices - search for: HH Vector and select. c. Your Vector enclosure is now connected to your Bluetooth device and controlled using the PLAY/PAUSE, PREVIOUS and NEXT BUTTONS. -
Page 6: Setting Up The Connection
True Wireless Stereo is a feature that allows for the connection of two VRE cabinets to a Bluetooth capable device. The result is a true stereo system via Bluetooth with the first VRE providing the left and the second providing the right portion of the stereo imag PRIMARY VRE cabinet SECONDARY VRE cabinet Bluetooth source... -
Page 7: Example Setup
EXAMPLE SETUP VRE-8AG2 Connection via Bluetooth or the AUX Input. To an additional VRE-8AG2 system. VRE-12AG2 VRE-15AG2 Music from the Media player or Bluetooth device. CH 1 CH 2 CH 3 MASTER WWW.HHELECTRONICS.COM... -
Page 8: Daisy Chaining
DAISY CHAINING VRE-8AG2 Utilising the MIX OUT to connect an additional VRE VRE1 system. The signal from the MIX OUT is at line level, so should be connected to the INSTRUMENT input of the following system. Any number of VRE can be connected in this way. VRE1: Initially set CH2 LEVEL control to zero, and in conjunction... -
Page 9: Hints And Tips
BASIC SETUP HH VRE cabs can be mounted on the floor, or a suitable pole or tripod. Don't over-extend poles/tripods; ensure at least 4 x the pole diameter is still inside the outer pole. Make sure the legs have a good splay on tripods, but do not obstruct doorways or other access-ways. -
Page 10: Block Diagram
BLOCK DIAGRAM VRE-8AG2 MIC INPUT 1/O CONNECTOR WIRING 6.35MM UNBALANCED JACK 3.5MM STEREO JACK MALE MALE 1 GROUND 2 HOT 3 COLD (FRONT VIEW) (REAR VIEW) +(HOT) RIGHT LEFT VRE-12AG2 and VRE-15AG2 LINE INPUT MIC/LINE LINE INPUT BASS TREBLE LINE INPUT CLIP INDICATOR MIC/LINE LINE... -
Page 11: Specifications
Carton dimensions (HWD) : 45.5 x 30 x 25.5 CM 17.9" x 11.8" x 10" , 0.035 M3 Packed weight : 6.5Kg, 14.3 lbs In the interest of continued development, HH Electronics reserves the right to amend product specification without prior notification. VRE-12AG2 Power Rating : 800W... - Page 12 Carton dimensions (HWD) : 76.5 x 50 x 41 CM 30.1" x 19.7" x 16.1" , 0.157 M3 Packed weight : 16.9Kg, 37.3 lbs In the interest of continued development, HH Electronics reserves the right to amend product specification without prior notification. WWW.HHELECTRONICS.COM...
- Page 13 WWW.HHELECTRONICS.COM...
- Page 14 WWW.HHELECTRONICS.COM...
- Page 15 hhelectronics hhelectronics Model number: hhelectronics Serial number: Place of purchase: Date of purchase: www.hhelectronics.com WWW.HHELECTRONICS.COM REVISION 1.00...
