iPA DUAL BATTERY CHARGING
CRADLE OPERATING MANUAL
This document contains information which is confidential and the property of Kaelus, and which is not to be communicated to any person or
company, or used in any way without the previous authorization of Kaelus.
2020 | R99-0092RevC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iPA and is the answer not in the manual?

Questions and answers

Summary of Contents for Kaelus iPA

  • Page 1 DUAL BATTERY CHARGING CRADLE OPERATING MANUAL This document contains information which is confidential and the property of Kaelus, and which is not to be communicated to any person or company, or used in any way without the previous authorization of Kaelus.
  • Page 2 Operating Manual | Battery Cradle Operating Manual Document Issue Description of Document Change Date Edited By Authorization Rev A Creation of document by Eng 16/05/2013 Rev B Implementation of new Kaelus format 10/11/2017 Rev C Removal of Infinite Branding 02/18/2020...
  • Page 3 Provider; (g) to a Kaelus Product that has been modified to alter functionality or capability without the written permission of Kaelus; (h) to defects caused by normal wear and tear or otherwise due to the normal aging of the Kaelus Product, or (i) if any serial number has been removed or defaced from the Kaelus Product.

  • Page 4: Table Of Contents

    Cleaning The Equipment Troubleshooting Guide Declaration Of EC Compliance End of Life Statement Contacts List of Figures Figure 1 R92-1979 Battery Charger Figure 2 iPA Dual Battery Charging Cradle (R92-0443) (Battery Inserted) Figure 3 Battery Charging Cradle Front Panel LED DIsplay...

  • Page 5: Operating Instructions

    1. 1. Operating Instructions Introduction This operating manual is for the IPA Dual Battery Charging Cradle (R92-0443). The charging cradle is available as an option and is intended to be used only with the Universal Smart Charger (R92- 1979) supplied with the IPA Portable Intermodulation Test Set analyser.

  • Page 6: Battery Charge Procedure

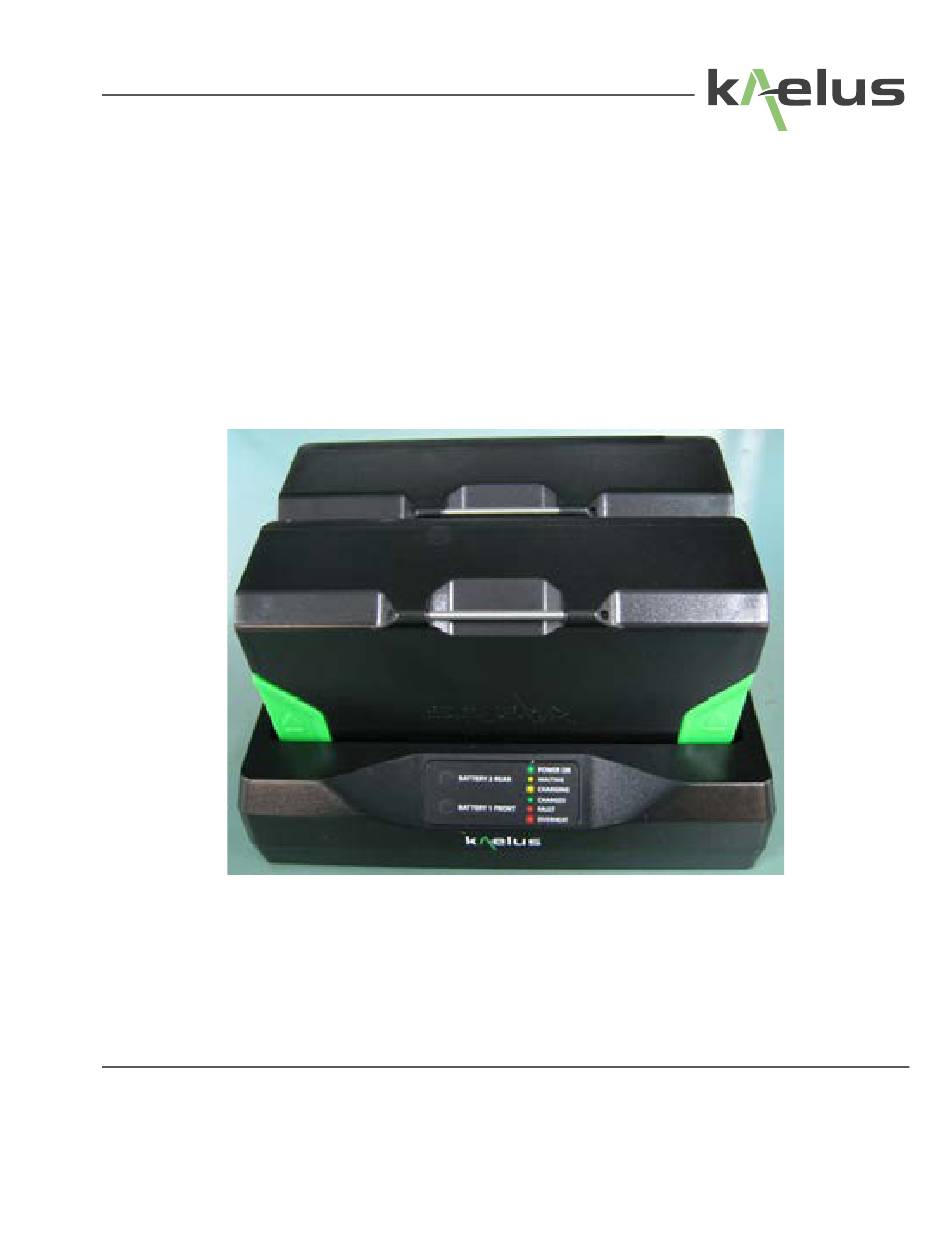

    If a fault condition is detected the charger will automatically start charging the next battery. Figure 1 R92-1979 Battery Charger Figure 2 iPA Dual Battery Charging Cradle (R92-0443) (Battery Inserted)

  • Page 7: Led Panel And Fault Condition

    Supply voltage to charger too high One LED flashing RED Battery over/under temperature LED solid RED Battery fault detected Both LED’s off No power to charger Table 1 Condition of Front Panel LED’s © 2017 Kaelus, Inc., All Rights Reserved.

  • Page 8: General Detail

    If a second battery is inserted, the charger will automatically begin charging the next battery. Fuses • The R92-0443 iPA Battery Charging Cradle has a 2 Amp fuse on the internal DC bus to protect the internal circuitry. • This fuse is not user-accessible or replaceable.

  • Page 9: Cleaning The Equipment

    Check R92-1979 Charger DC and AC power cables. • Check AC supply. • If the above action does not fix the problem the Charging Cradle and Charger should both be returned to a Kaelus/ Summitek approved service facility. Operation Cradle LED display showing a fault.

  • Page 10: End Of Life Statement

    Equipment marked with the symbol below (Crossed Out Wheelie Bin) complies with the European Parliament and Council Directive 2002/96/EC (the “WEEE Directive”) in the European Union. Please contact your local Kaelus representative (see next section) at the end of the product’s useful life to arrange its disposal in accordance with your local regulations.
