Summary of Contents for SAF SG Compact

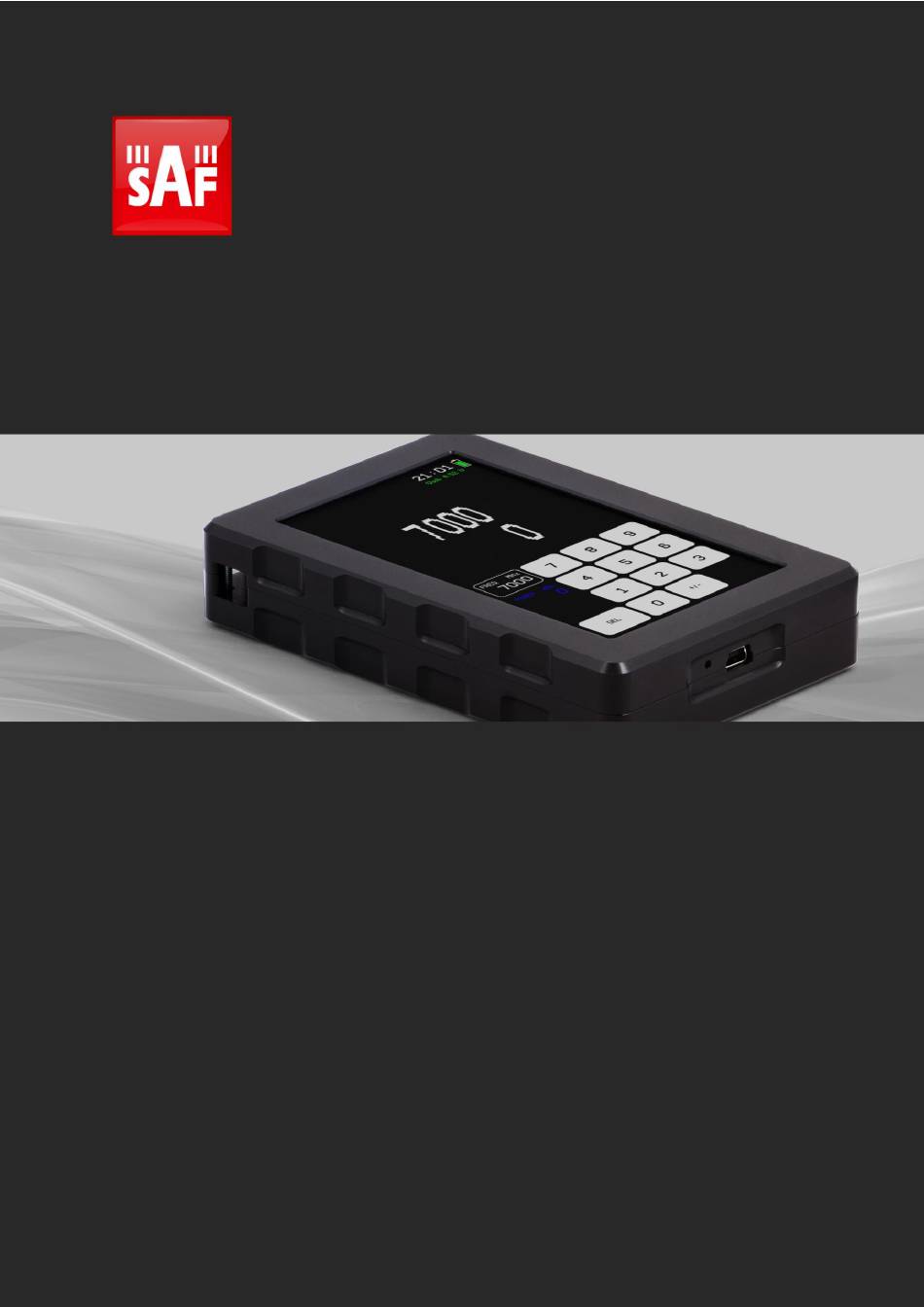

- Page 1 User manual SG Compact VER 1.3...
- Page 2 Spectrum Compact does not contain serviceable parts. Warranty will not be applicable in the event Spectrum Compact has been opened. The information presented in this guide is the property of SAF Tehnika, JSC. No part of this document may be reproduced or transmitted without proper permission from SAF Tehnika, JSC.
-
Page 3: Table Of Contents
1.3 Unpacking....................5 1.4 Initial power-up ..................6 1.5 Connecting to antenna ................6 2 USING SG COMPACT ..................7 3 ADDING FILTERS ..................8 3.1 Overview ....................8 3.2 Connecting filters to SG Compact ............9 CONTACTS ..................... 10... -
Page 4: Overview
SG COMPACT OVERVIEW OVERVIEW 1.1 Front view SMA/ 2.92 mm connector (antenna port) Power switch Strap lug Touchscreen USB connector Charge indicator... -
Page 5: Technical Specification
1.3 Unpacking Before opening, please inspect the package for any visible damage. The following accessories are available: SG Compact accessories 1 – AC/DC USB charger with USB cable; 2 – Leather bag for Spectrum Compact (P/N J0APAC11); 3 – Attenuators 20/40dB or 60dB kit;... -
Page 6: Initial Power-Up
- P/N J0AA1724HG01: UBR220 flange; 17.0–24.5 GHz, Gain: 21.0–21.5dBi; 9 – Lanyard (P/N J0APAC21). 1.4 Initial power-up Slide power switch towards the red dot (●) to power on your SG Compact. If the battery meter is indicating BATTERY, connect USB charger via USB connector and charge the SG Compact. -
Page 7: Using Sg Compact
POWER – Allows you to set SG Tx power in dBm. ! Output power range depends on SG model. SG Compact 6–12 GHz (P/N J0SSAG11) Tx power range is -3...+13dBm. SG Compact 10–18 GHz (P/N J0SSAG12) Tx power range is -3…+11dBm. -
Page 8: Adding Filters
ADDING FILTERS 3.1 Overview In order to use SG Compact in the field it is necessary to use external filters. Filters ensure filtration of additional harmonics which occur in the device’s mixer. The tables below summarize filters’ usage with appropriate SG Compact units. -
Page 9: Connecting Filters To Sg Compact
33 GHz P/N J0S22WAF01 P/N J0S38WAF01 3.2 Connecting filters to SG Compact SG Compact interconnected with low pass filter SG Compact interconnected with low pass filter P/N J0ALPF14 P/N J0ALPF09 SG Compact interconnected with low pass filter/ waveguide-to-coax converter P/N J0S22WAF01... -
Page 10: Contacts
CONTACTS Global headquarters North America office SAF Tehnika JSC SAF North America LLC VAT No. LV40003474109 OFFICE, MANUFACTURING AND LEGAL ADRESS: OFFICE ADDRESS: 24a, Ganibu Dambis 3250 Quentin Street, Riga, LV-1005, Latvia Unit 128, Aurora CO 80011 E-MAIL: E-MAIL: info@saftehnika.com salesna@saftehnika.com...
