Guardrail Step Kit Instructions
TOOLS REQUIRED: Tape Measure - Screw Gun - Screw/Drill Bit
Chop Saw/Hack Saw - Square - Level

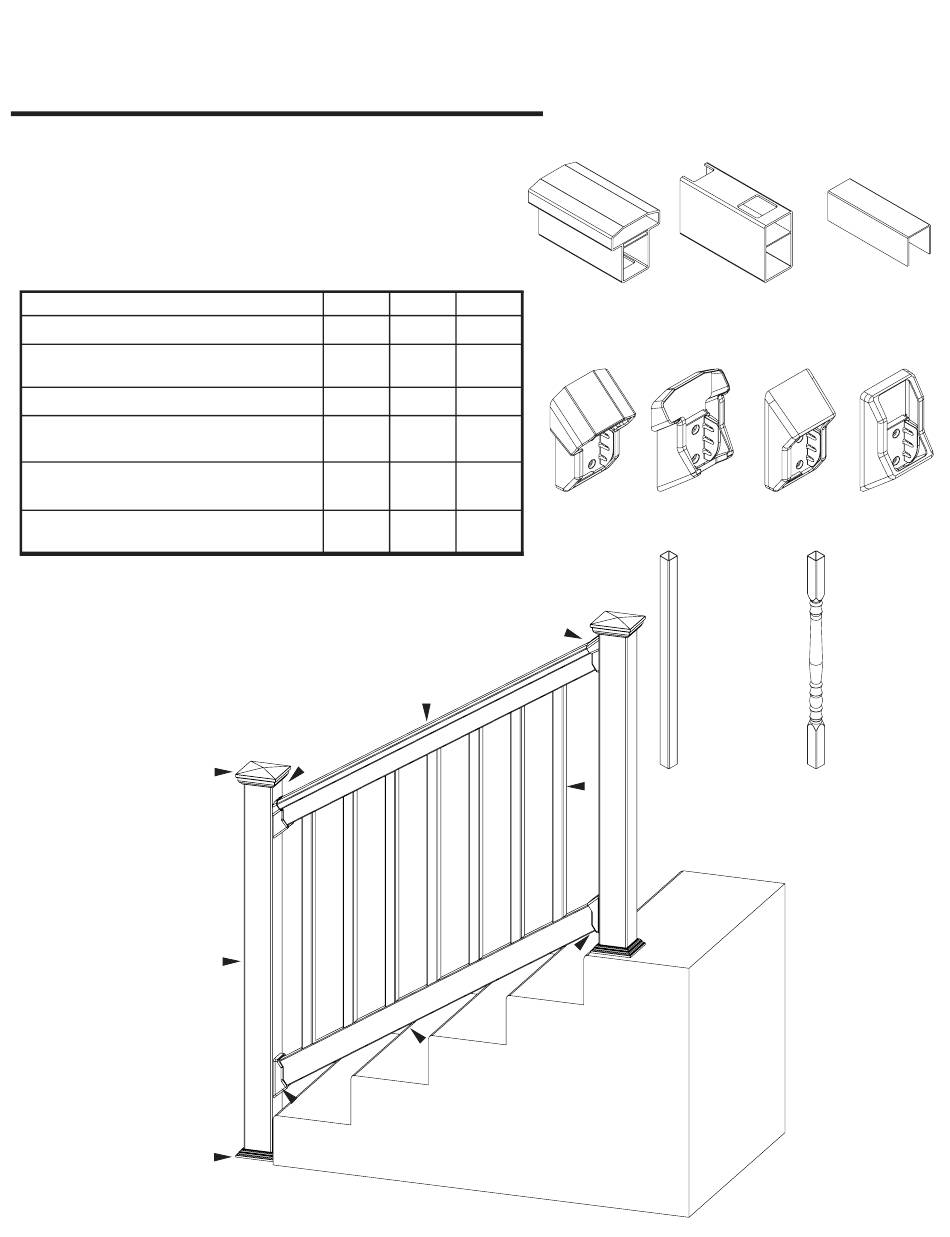

GUARDRAIL STEP KIT CONTENTS
Components
Top Rail - Alzar with pre-routed holes
Bottom Rail - 2" x 3-1/2" Webbed with pre-routed
holes
Aluminum Insert - for top rail
Alzar Top & Bottom Guardrail Brackets
- with nylon post brackets, covers and fasteners
2" x 3-1/2" Top & Bottom Guardrail Brackets
- with nylon post brackets, covers and fasteners
Balusters - 1-1/2" Square or 1-1/2" Colonial
(one style per selected kit)
*Accessories items may be purchased separately.
* 4" Post Cap
*4" x 4"
PVC Post
* 4" Post Skirt
4' Kit
6' Kit
(1)
(1)
(1)
(1)
(1)
(1)
(2)
(2)
(2)
(2)
(7)
(11)
Top Rail
Alzar
Alzar
Bottom Stair
Bracket
Bottom Rail
2" x 3-1/2"
2" x 3-1/2"
Bottom Stair
Bracket
®
®
Guardrail Series
Guardrail Series
Top Rail
8' Kit
Alzar
Top Stair
(1)
Bracket
(1)
(1)
(2)
(2)
1-1/2" Square
(15)
Alzar
Top Stair
Bracket
Balusters
2" x 3-1/2"
Top Stair
Bracket
Webbed
®
®
Sentinel
Sentinel
Step
Step
Bottom Rail
Alzar
2" x 3-1/2"
Bottom Stair
Top Stair
Bracket
Bracket
1-1/2" Colonial
Aluminum
Insert
2" x 3-1/2"
Bottom Stair
Bracket
February 2010
Advertisement
Table of Contents
Summary of Contents for PVC Presidio Sentinel Guardrail Step Series
- Page 1 Top Stair Bracket Top Rail Alzar Alzar Bottom Stair Bracket * 4" Post Cap Balusters *4" x 4" PVC Post 2" x 3-1/2" Top Stair Bracket Bottom Rail 2" x 3-1/2" Webbed 2" x 3-1/2" Bottom Stair Bracket * 4" Post Skirt...
- Page 2 Step 2 - Secure post mounting brackets. Attach the nylon post brackets to the sleeved posts by using the (4) #10 x 1-1/2" pan-head screws for the 4" x 4" treated wood post, or the (4) #10 x 1" pan-head screws for the LMT Blu-Mount with aluminum or PVC guides.
- Page 3 Step 4 - Secure the bottom rail. Attach the bottom rail to the nylon post brackets by using the (4) #10 x 1" pan-head screws. The bottom rail will be 1" off the step tread nosing with the rail inserted correctly into the nylon post brackets. Fasten two screws into each side of the nylon post bracket using the top and bottom slots of the nylon post brackets.
- Page 4 Step 6 onto the nylon post brackets. Step 8 - Finish the section. Secure the 4" x 4" post caps onto the post tops by applying PVC adhesive to the internal surfaces of the post caps. Set the caps onto the post tops. Wipe off any excess adhesive.
