The Double Voltage has been designed as a system providing redundant power supply to two inputs receivers (Figure 1) or for power
supplying with only two batteries receiver, servos and electronic ignition of gas engine (Figure 2). It can also be used in combiantion with
Alewings units managing servos, such as MAC16 and UniServo (Figure 3). It comes with 300mm flat cable and external panel. Battery inputs
and outputs have MPX connectors.

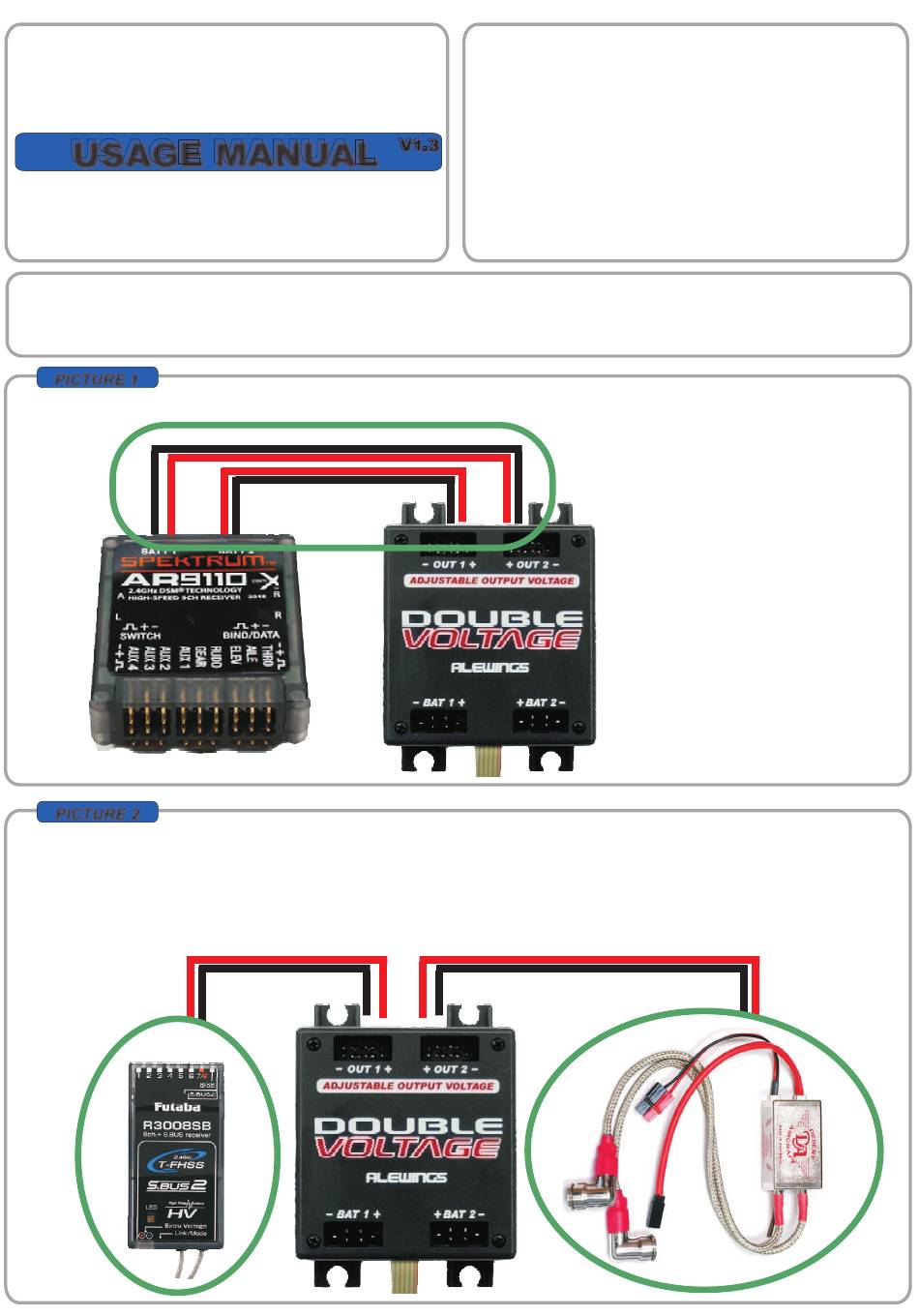

PICTURE 1
PICTURE 2
How to use the Double Voltage for power supplying with only two batteries receiver/servos and electronic ignition of gas engine obtainig
redundancy. Connect output "OUT1" to the receiver and output "OUT2" to the electronic ignition of the engine. Using this set-up you have
double and redundant power supply for both receiver/servos and electronic ignition of the engine and this using only two batteries.
ATTENTION: BEFORE CONNECTING THE DOUBLE VOLTAGE TO ANY OTHER DEVICE, YOU MUST PROGRAM THE OUTPUT VOLTAGE SO THAT IT IS
COMPATIBLE WITH THE DEVICE YOU WANT TO POWER SUPPLY.
REDUNDANT POWER
SUPPLY
Cod. 90010303
®
di Alessandro Torri
REDUNDANT POWER SUPPLY
Dear Customer,
Thank you for purchaising an Alewings product.
The Double Voltage unit is a device for managing a double battery
power supply with redundancy.
It accepts in input two 2S LiPoli 7,4V batteries and has two
independent stabilized outputs that can be set by the user from 5V
V1.3
to 7,4V (it is ideal also for applications with HV servos).
Voltage is regualted in linear way simply rotanting the selectors on
the device with a little screw driver. The Double Voltage id equipped
with two voltage regulators, a double electronic switch controlled by
button and an external panel
with LEDs indicating the battery status and system keeping memory
of the lowest voltage.
How to use the Double Voltage for power
supplying a two inputs receiver.
The voltqge of the two outputs "OUT1" and
"OUT2" can be regulated from a minimum of
5V to a maximum of 7,4V.
Maximum peak current for each output is 20A.
ATTENTION: BEFORE CONNECTING THE
DOUBLE VOLTAGE TO ANY OTHER DEVICE, YOU
MUST PROGRAM THE OUTPUT VOLTAGE SO
THAT IT IS COMPATIBLE WITH THE DEVICE YOU
WANT TO POWER SUPPLY.
REDUNDANT
POWER
SUPPLY
