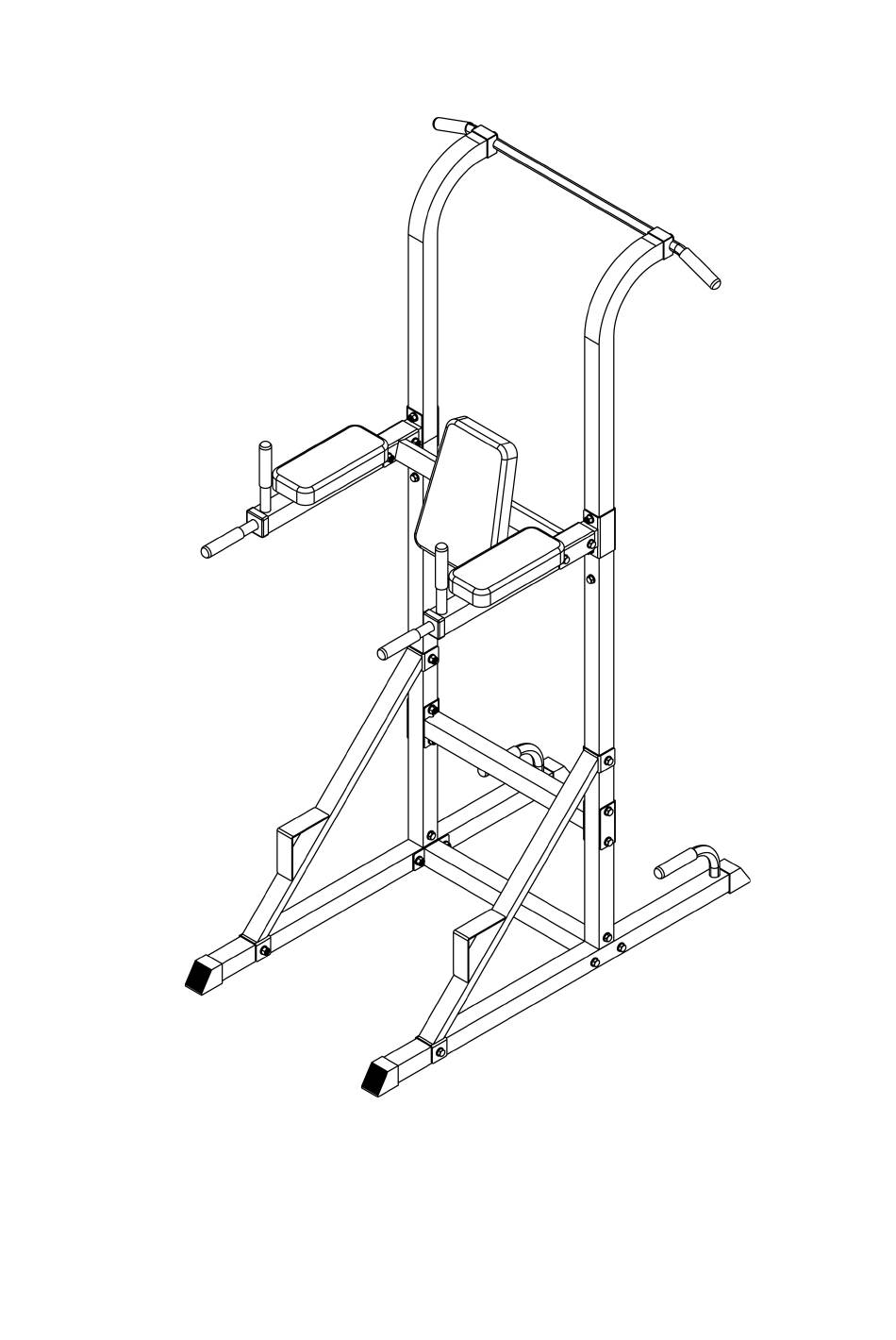

- Page 1 MAVRIK Power Tower MVK-PWT-001 OWNER’S MANUAL...
-
Page 2: Important Safety Notice
IMPORTANT SAFETY NOTICE PRECAUTIONS Note the following precautions before assembling or operation the VKR COMBO. 1. Keep children and pets from the machine at all time. DO NOT leave unattended children in the same room with the machine. 2. Only one person at a time should be using the machine. 3. -
Page 4: Part List
PART LIST PART NO DESCRIPTION Q’TY BOTTOM TUBE LOW UPRIGHT TUBE UP UPRIGHT TUBE BOTTOM CONNECT TUBE MIDDLE CONNECT TUBE UP CONNECT TUBE FOOT SUPPORT TUBE LEFT ARM TUBE RIGHT ARM TUBE HANDLE TUBE LAT BAR BACK CUSHION ARM CUSHION HEX BOLT M10*70mm HEX BOLT M10*45mm HEX BOLT M10*20mm... - Page 5 FIG-1 STEP1(FIG-1): 1. Attach bottom connect tube (04) to bottom tube (01) using connect hex bolt M10*70 (15), washer φ10 (20) and nylon lock nut M10 (22). 2. Attach low upright tube (02) to bottom tube (01) using hex bolt M10*20 (17) and washer φ10 (20).
- Page 6 FIG-2 STEP2(FIG-2): Attach up upright tube (03) to low upright tube (02) using hex bolt M10*20 (17) and washer φ10 (20).
- Page 7 FIG-3 STEP3(FIG-3): Attach left arm tube (08) and right arm tube (09) to low upright tube (02) and up upright tube (03) using hex bolt M10*70 (15), hex bolt M10*20 (17), washer φ10 (20) and nylon lock nut M10 (22). Attach up connect tube (06) to left arm tube (08) and right arm tube (09) using hex bolt M10*70 (15), washer φ10 (20) and nylon lock nut M10 (22).
- Page 8 FIG-4 STEP4(FIG-4): Attach lat bar (11) to up upright tube (03) using hex bolt M10*45 (16) and washer φ10 (20).
- Page 9 FIG-5 STEP5(FIG-5): 1. Attach back cushion (13) to up connect tube (06) using hex bolt M8*20 (19) and washer φ8 (21). 2. Attach arm cushion (14) to left arm tube (08) and right arm tube (09) using hex bolt M8*65 (18) and washer φ8 (21).
