Summary of Contents for CVW CC8980

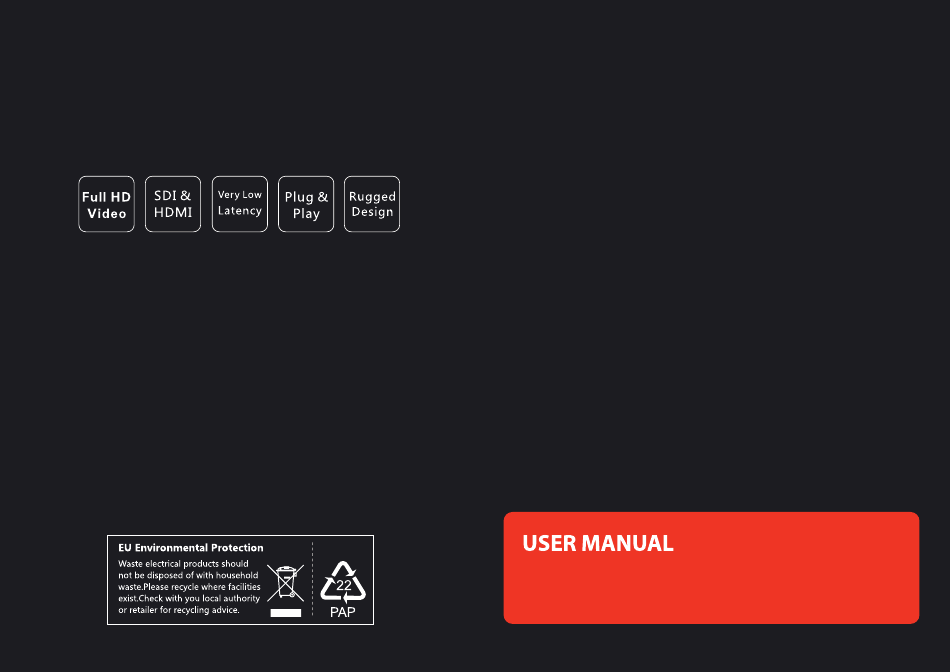

- Page 1 Wireless HD Video Link This user manual applies to: Transmitter : CC8980 Version: 1.0 Receiver : CC3865 2016.12...
-
Page 3: Table Of Contents
Installation performance, even lead to the live broadcast accident. CVW provides you with more LCD Screen convenient and safer solution for live broadcasting. The long distance transmission... -
Page 4: Packing List
Packing List Specification Please check the packing list carefully after unpacking, if any part is missing, please Specification ITEM contact your dealer. Accessories of all models are subject to the following packing list. Time Code Power Cable Wireless HD >300m (Line of sight) transmitter X 1 Antenna X 2 Transmitter... -
Page 5: Structure & Interface
Structure & Interface Structure Transmitter CC8980 LCD Screen Display information about the Channel, Signal INPUT, Capacity, Signal status. Channel Switch Select the correct Channel HDMI/SDI Signal Switch Switch HDMI or SDI Signal as the signal source OK For Confirm Power Supply IN(Lemo) - Page 6 Structure Structure Transmitter CC3865 LCD Screen Display information about the Channel, Signal INPUT, Capacity, Signal status. Channel Switch Select the correct Channel HDMI/SDI Signal Switch Switch HDMI or SDI Signal as the signal source OK For Confirm LCD Screen OK For Confirm the selection Channel Switch SDI OUT(Loop) HDMI/SDI...
-
Page 7: Installation
Installation 3. Turn ON the power supply and make sure the transmitter start to work . For transmitter 1. Fix on the antennas to the transmitter, and arrange them to be right angle as figured below. 4. Press the “CH” button to select the wireless channel that corresponding to the Receiver, then press the “OK”... - Page 8 For Receiver 3. Turn ON the power supply and make sure the receiver start to work . 1. Fix on the antennas to the receiver, and arrange them to be right angle as figured below. Portable Battery DC12V Adaptor 4. Press the “CH” button to select the wireless channel that corresponding to the Transmitter, then press the “OK”...
-
Page 9: Lcd Screen
Long press “HDMI/SDI” key to switch to SDI audio mode 1 LCD Screen Auto Wireless Signal Power Info Wireless Link Video Connect Channel NO. Supports full PSF resolutions Power Info: Display the current power supply status Supports full PSF resolutions Channel NO.: Display the current Channel NO. - Page 10 The range can drop to as low as 150 meters in the worst case. Optimal: The transmitter and receiver are both in vertical direction The antennas at both sides are in vertical direction RX：CC3865 TX：CC8980 The transmitter and the receiver are facing directly Line of sight Transmission range: 600M TX：CC8980 RX：CC3865...
-
Page 11: Troubleshooting
Power off other independent transmitter, place the receiver away from the other sources of interference. condition near the receiver. TX：CC8980 No Video Signal received Transmitter and video source are not connected. Connect the transmitter to video source by SDI/HDMI cable.
