SecureVision FD 4201 Instruction Manual

- The fire control panel enters Fire condition and the relay,
corresponding to the chosen line, is activated (example: Rel1 – for line
1);
- If the relay is configured with normally open contact, then in Fire
condition it is closed;
- Press button to reset the fire control panel. The relay (e.g.: Rel1)
should be reset to its initial position;
- If no other relay of another line is going to be tested, reset the delay of
the fire control panel to its initial settings (0, 1, 2, 3, 4 or 5 minutes).
ATTENTION! The relays of Extension Module do not commutate 220V!
2. Testing the interface part
The interface part RS485 of the Extension Module FD 4201 is tested as a
part of a network consisting of repeater FS5200R and remote fire control
panels. The parameters of the repeater have to be defined correctly for
realization of the connection. The network address and the data exchange
speed along RS485 in a fire control panel, equipped with an extension module
are fixed:
- The fire control panel network address coincides with its serial number;
- the data exchange speed is fixed – 9600 bits/s.

Complete set

PC Board Extension Module
Ribbon cable
Instruction manual
Package

Technical service

It should be done only by an authorized person as it includes the actions
for the technical service of the fire control panel.

Warranty

The warranty period is 18 months from the date of sale.
The manufacturer guarantees the normal performance of the unit providing
that the operation requirements set herewith have been observed.
The manufacturer does not bear warranty liabilities for damages
caused through accidental mechanical damage, misuse, adaptation or
modification after production.
The manufacturer bears warranty liabilities for damages in the unit
caused through manufacturer's fault only.
Instruction Manual
Revision 03.10
Extension Module FD4201
- 1 pc.
- 1 pc.
- 1 pc.
- 1 pc.
Page4
of 4
Extension Module
Type FD 4201
Instruction Manual 03.10

General Description

Module FD 4201 expands the options of fire control panel FS4000.
It allows:
- Connection of fire control panel FS4000 in a system of a repeater
FS5200R and/or several remote fire control panels FS4000, FS5100,
FS5200, FS5200E;
- Commanding the fire control panel from the repeater within a network of
remote fire control panels
- Control of a relay output for each line that is in Fire condition.
The module could work only with the latest version of the fire control panel
FS4000 (fire control panels with serial numbers after 4000). It is manufactured in 4
variants corresponding to the nomenclature of the produced fire control panels
FS4000, with 2, 4, 6 or 8 lines, respectively with 2, 4, 6 or 8 relay outputs.
Interface RS485 is an integral part of the module and it is offered in all variants.
The module includes:
- Interface RS485 for connection with repeater FS5200R;
- Potential free relays for Fire condition (one to each line of the fire control
panel FS4000).

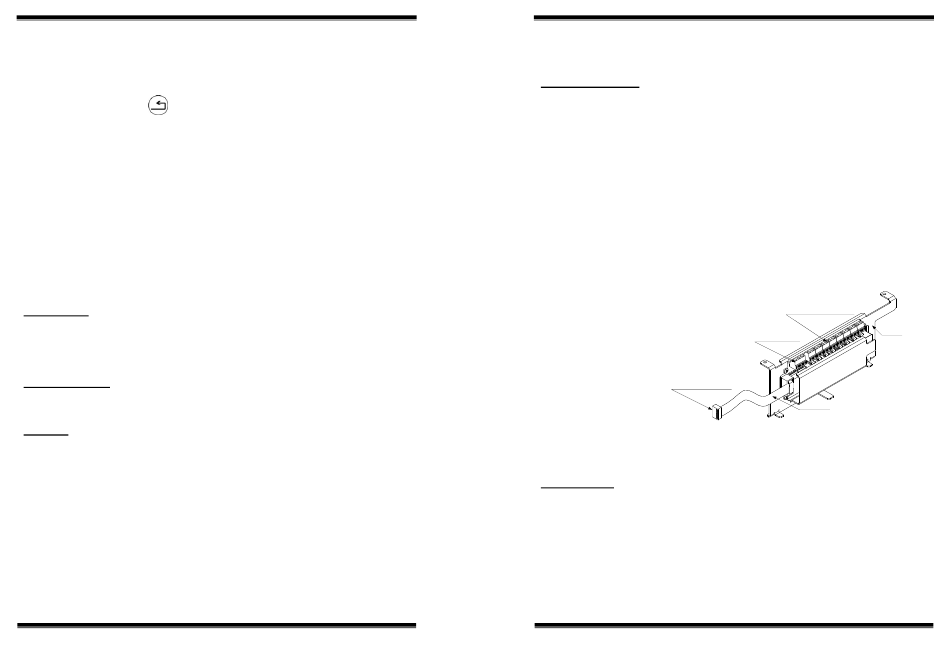

The unit
consists of an
Installation base, PC
board and ribbon
cable.
Coupling for connection with the
fire control panel FS4000
The communication between the fire control panel and the extension module
FD 4201 is executed via a ribbon cable, connecting the fire control panel and the
unit. The module is power supplied along the ribbon cable.

Technical Data

Relay outputs for Fire condition
- type potential free, switching
- power supply 3A/125VAC; 3A/30VDC
Interface RS485
- network address fixed – coincides with the serial number of the fire
control panel
- data exchange speed fixed – 9600 bits/s.
Operational temperature range from минус 5
Relative humidity resistance max 93% at 40
Dimensions 180 х 65 х 25 mm
Weight 0,160 kg
Instruction Manual
Revision 03.10
Extension Module FD4201
Relays, adivated in Fire condition
Installation
base
Terminals for connecting
RS485 to the network
Ribbon cable
Fig.1
о о
С to 40 С
о
С
Page1
of 4
