Quick Installation Guide
RFL100C/200C

1. Check Environment

1.1 Check the power source

Before connecting, check the input voltage

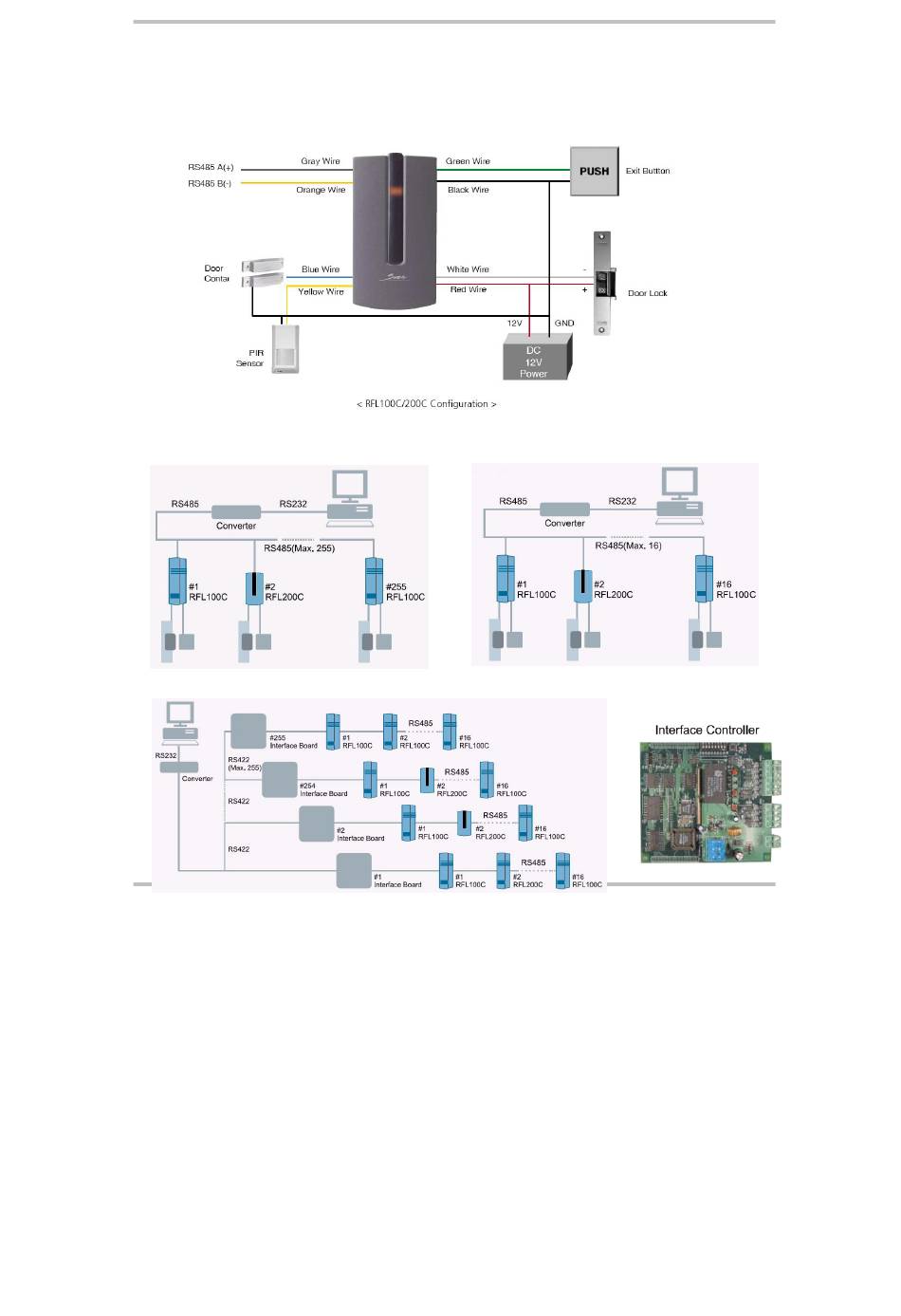

1.2 Connection Diagram

1.3 Lock Control only without event management

(Max. 255)
1.5 Interface controller required, Event management and Lock control (Over 16 units)
IDTECK
if it is right as DC12V/150mA.

1.4 Lock control and event Management

(Up to 16 units)
1/4
STAR
20040609

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RFL100C and is the answer not in the manual?

Questions and answers

Summary of Contents for Star RFL100C

  • Page 1 Quick Installation Guide STAR RFL100C/200C 1. Check Environment 1.1 Check the power source Before connecting, check the input voltage if it is right as DC12V/150mA. 1.2 Connection Diagram 1.4 Lock control and event Management 1.3 Lock Control only without event management (Max.
  • Page 2 Quick Installation Guide STAR RFL100C/200C 2. Setup Hardware - All the parameter of RFL100C/200C was set-up by Software. 2.1 Address Setting 2.2 In/Out point relation definition -Select and type name from the keyboard. 2.3 User registration/deletion 2.4 System Initialization Cardholder registration/deletion has been RFL100C/200C initialized by the software.
  • Page 3 Quick Installation Guide STAR RFL100C/200C 4. Normal Operation Power on When the power is applied to RFL100C/200C, Red LED will light on. The initial beep should sound twice. Registered card reading When a registered card is read, the Door will be opened for 3 seconds (Default) with the Green LED...
