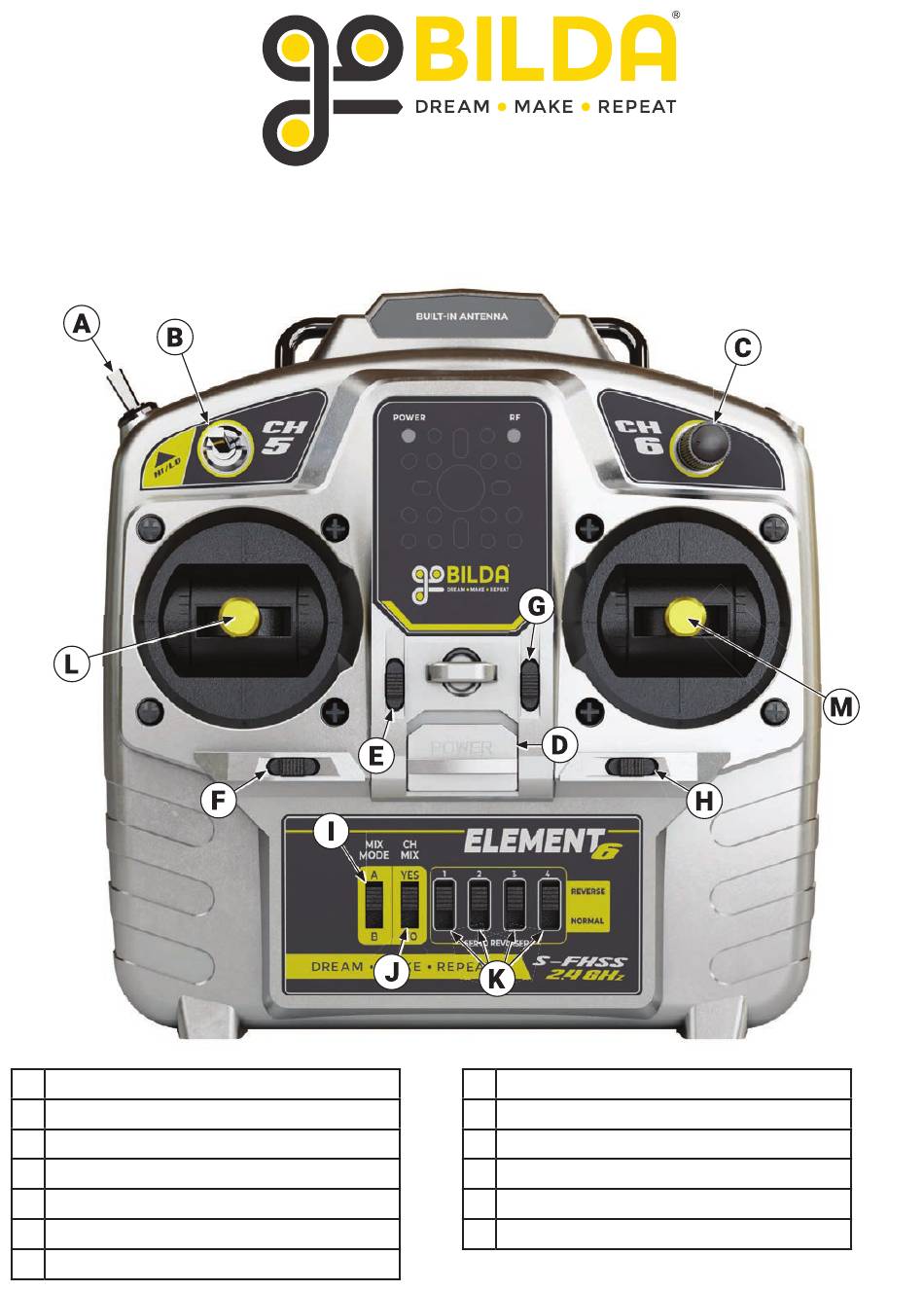

Element-6 Radio Control System (Mode 2)
A
Hi/Lo Toggle Switch
B
Channel 5, 3-Position Toggle Switch
C
Channel 6, Proportional Dial
D
Power Switch
E
Trim Switch, Left Gimbal, Y Axis
F
Trim Switch, Left Gimbal, X Axis
G
Trim Switch, Right Gimbal, Y Axis
User Manual
H
Trim Switch, Right Gimbal, X Axis
I
Mix Mode Switch
J
Channel Mixing Switch
K
Servo Reverser Switches
L
Left Gimbal
M
Right Gimbal
Advertisement
Summary of Contents for BILDA Element-6
- Page 1 Element-6 Radio Control System (Mode 2) User Manual Hi/Lo Toggle Switch Trim Switch, Right Gimbal, X Axis Channel 5, 3-Position Toggle Switch Mix Mode Switch Channel 6, Proportional Dial Channel Mixing Switch Power Switch Servo Reverser Switches Trim Switch, Left Gimbal, Y Axis...
- Page 2 Specs: Transmitter Power ≤ 70mW Transmission Frequency: 2.401 - 2.479GHz Range: Up to 800 Meters (2625 Feet) with direct line of sight. CH MIX: This switch enables or disables mixing. When set to “NO”, MIX MODE is ignored and no mixing occurs. MIX MODE A: In MIX MODE A, the X and Y axes of the left gimbal are mixed and output to channels 2 and 4.
