Figure 17 -Attaching Speed Control
(Model May Vary From Illustration)
10. Check to make sure power cord is com-
pletely clear of blower wheel and there are
no foreign objects in blower wheel. Also,
double check all wire leads and make
sure wire routing is not pinched or in a
precarious position. Correct accordingly.
CAUTION: Never touch
blower wheel while in operation.
11. Turn on power to duplex outlet if previ-
ously turned off per warning in column 2,
Page 15.
12. Plug in blower power cord to duplex outlet
(see Figure 14, Page 15).
13. Turn blower on and check for operation.
Turn blower off by turning knob fully coun-
terclockwise before continuing.
14. Peel off backing paper and stick supplied
wiring diagram decal on fi rebox bottom
approximately 12" in front of blower (see
Figure 18).
15. Replace all panels and/or brick bottom
panel if previously removed.
900781-00_NC
INSTALLATION
Continued
Lock Nut
Control
Knob
Control
Shaft
Wiring Diagram
Decal 12" in
Front of Blower

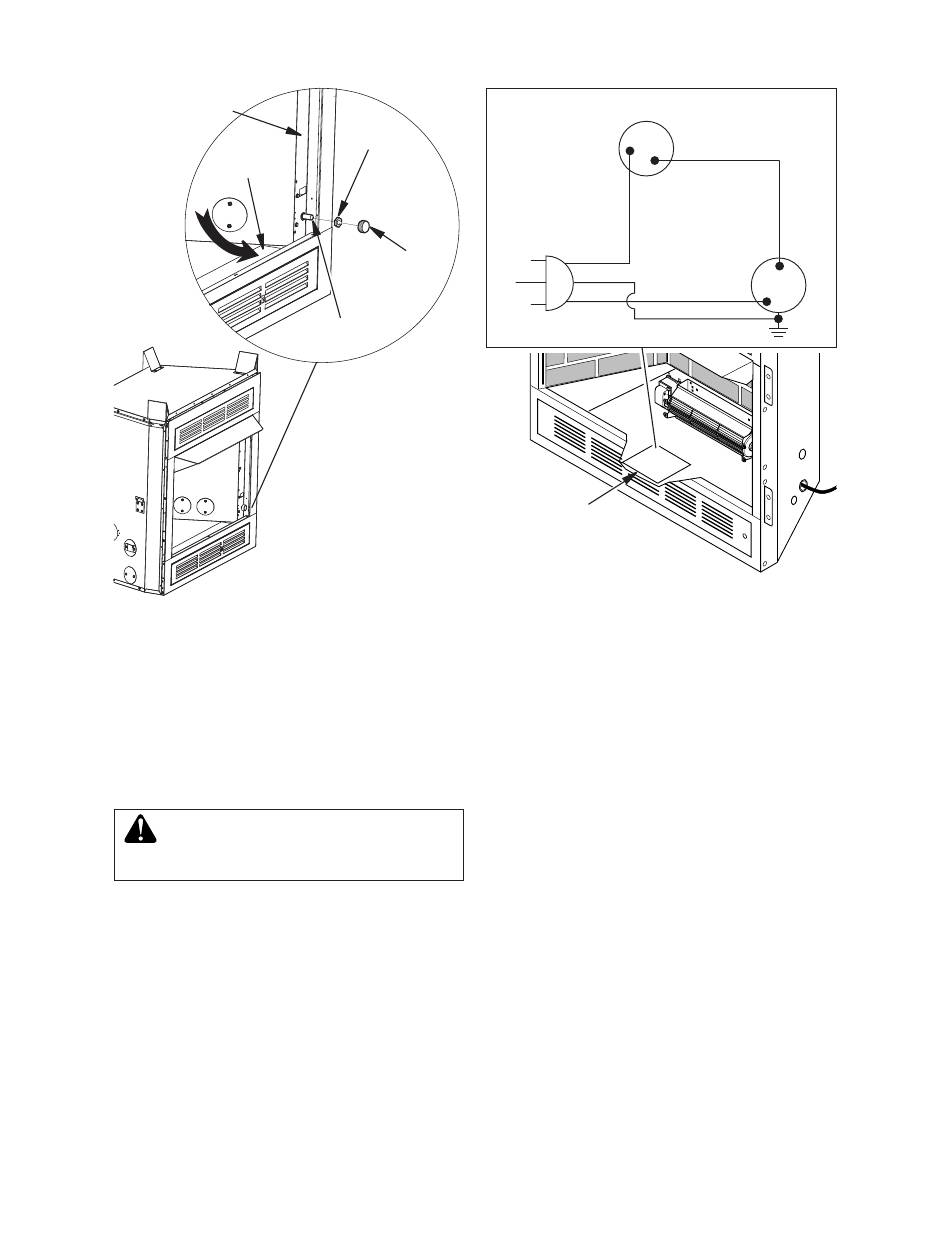

Figure 18 - Location of Wiring Diagram
Decal (Model May Vary From Illustration)
SuperiorFireplaces.US.com
Variable
Fan Switch
1
Off
Black
2
On
110/115
V.A.C.
Black
Green
White
Blower
Motor
