Summary of Contents for Wido WD010411100

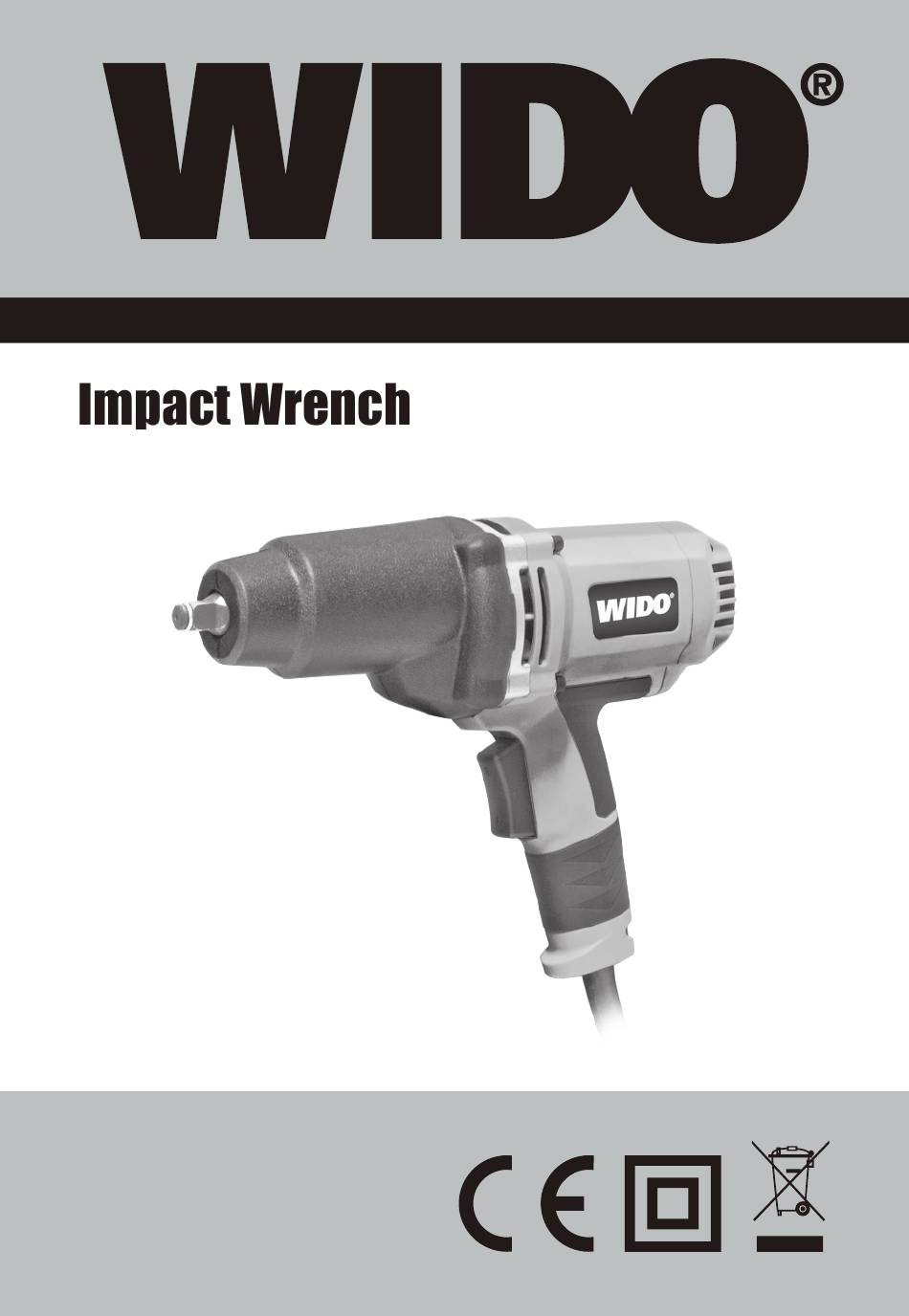

- Page 1 WD010411100 1100W...
- Page 2 WD010411100 Thank you for purchasing a WIDO product. We are confident that you will appreciate the quality of the product and you will be entirely satisfied with your purchase. Please read carefully the user safety and operating instruction on how to operate this product correctly within safety...
- Page 3 WD010411100...
-
Page 4: Component List
1100W IMPACT WRENCH COMPONENT LIST Tool holder Auxiliary handle Handle Rocker swith Socket NORMAL ACCESSORIES 1) Sockets: 4pcs 2) Spare carbon brush: 1set We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. -
Page 5: General Power Tool Safety Warnings
1100W IMPACT WRENCH GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 6 1100W IMPACT WRENCH f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 7: Double Insulation
Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice TECHNICAL DATA Model WD010411100 Voltage 110-120V AC 220-240V AC Frequency 50-60Hz... - Page 8 1100W IMPACT WRENCH Note: For power tool specifications refer to the nameplate on your power tool. OPERATING INSTRUCTIONS Note: Before using the power tool, read the instruction manual carefully. 1. Intended use The machine is intended for driving in and loosening screws and bolts as well as for tightening and loosening nuts within the respective range of dimension.
-
Page 9: Maintenance
1100W IMPACT WRENCH • Socket size: Failure to use the correct socket size will cause a reduction in fastening torque. • Bolt size: Larger bolt diameters generally require higher fastening torque. Fastening torque will also vary according to length, grade, and torque coefficient. •... -
Page 10: Explosive View
1100W IMPACT WRENCH EXPLOSIVE VIEW... -
Page 11: Part List
1100W IMPACT WRENCH PART LIST DESCRIPTION Q’TY DESCRIPTION Q’TY Sheathed cap Rotor Gear box Bearing Felt ring Screw Oil bearing Air deflector Round snap rings Stator O-ring Right Handle Output Spindle Inner wire Clutch Disc Nameplate Steel ball Switch Spring Housing Clutch Axis Carbon brush... - Page 12 MADE IN CHINA Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com...
