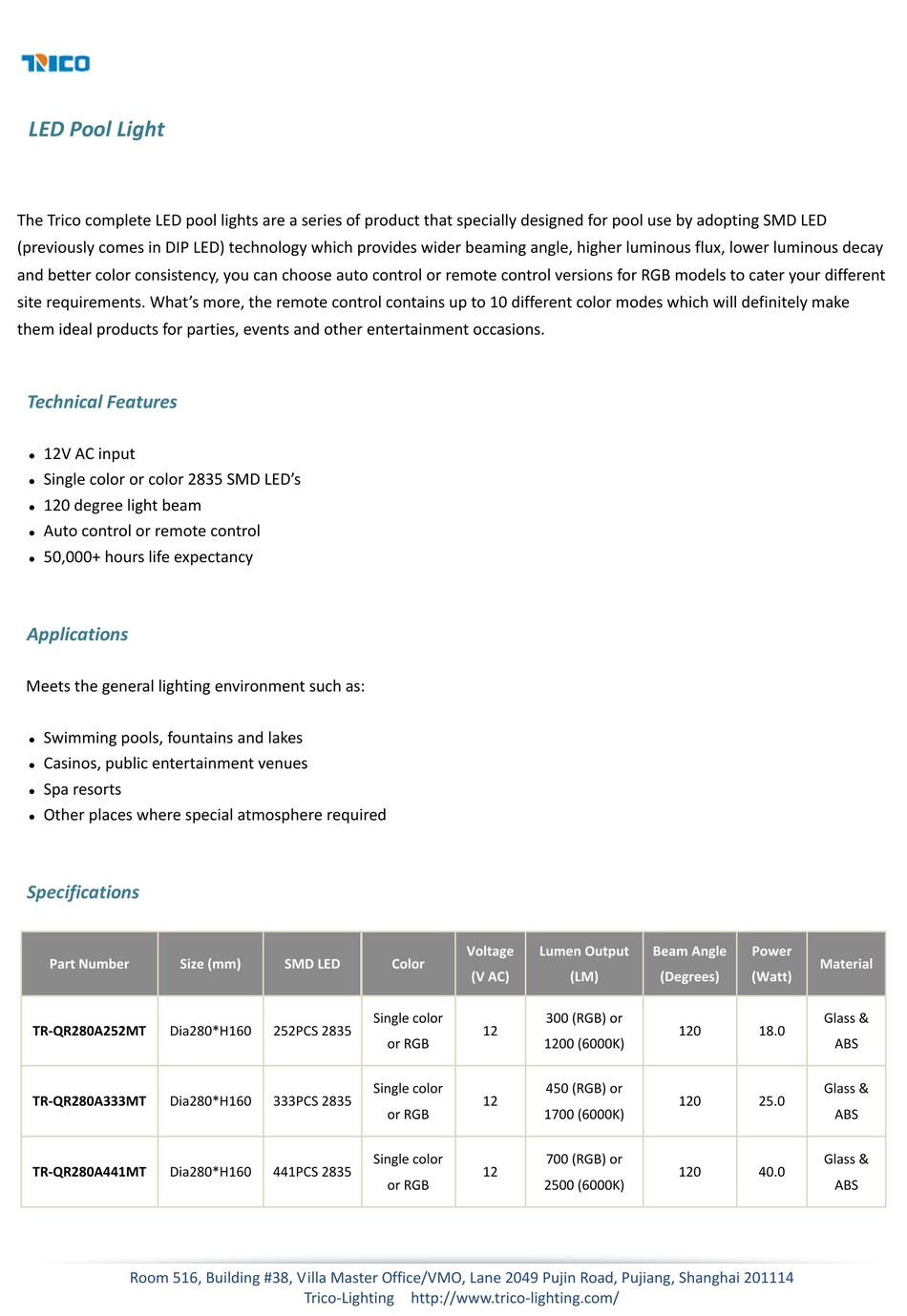

Trico TR-QR280A333MT Manual

LED Pool Light
The Trico complete LED pool lights are a series of product that specially designed for pool use by adopting SMD LED
(previously comes in DIP LED) technology which provides wider beaming angle, higher luminous flux, lower luminous decay
and better color consistency, you can choose auto control or remote control versions for RGB models to cater your different
site requirements. What's more, the remote control contains up to 10 different color modes which will definitely make
them ideal products for parties, events and other entertainment occasions.
Technical Features
12V AC input

Single color or color 2835 SMD LED's

120 degree light beam

Auto control or remote control

50,000+ hours life expectancy

Applications
Meets the general lighting environment such as:
Swimming pools, fountains and lakes

Casinos, public entertainment venues

Spa resorts

Other places where special atmosphere required

Specifications
Part Number Size (mm)
TR‐QR280A252MT Dia280*H160
TR‐QR280A333MT Dia280*H160
TR‐QR280A441MT Dia280*H160
Room 516, Building #38, Villa Master Office/VMO, Lane 2049 Pujin Road, Pujiang, Shanghai 201114
SMD LED Color
Single color
252PCS 2835
or RGB
Single color
333PCS 2835
or RGB
Single color
441PCS 2835
or RGB
Trico‐Lighting http://www.trico‐lighting.com/
Voltage Lumen Output
(V AC) (LM)
300 (RGB) or
12
1200 (6000K)
450 (RGB) or
12
1700 (6000K)
700 (RGB) or
12
2500 (6000K)
Beam Angle Power
Material
(Degrees) (Watt)
Glass &
120 18.0
Glass &
120 25.0
Glass &
120 40.0
ABS
ABS
ABS
