LIOB-A4, LIOB-A5
Installation instructions
Instructions de montage
Montageanweisung
Montagevoorschrift
0.120 kg
50º C
max
RH
0º C
min
10 - 90 %
mm
kg
[inch]
LIOB
CONNECT
Adapter
Instruzioni di montaggio
Instrucciones de montaje
Monteringsanvisning
24 VDC
24 VDC
INPUT
OUTPUT
L-IOB
Adapter 4
27
[1.063]
32
[2.362]
LOYTEC
Advertisement
Table of Contents
Related Manuals for LOYTEC LIOB-A4
Summary of Contents for LOYTEC LIOB-A4

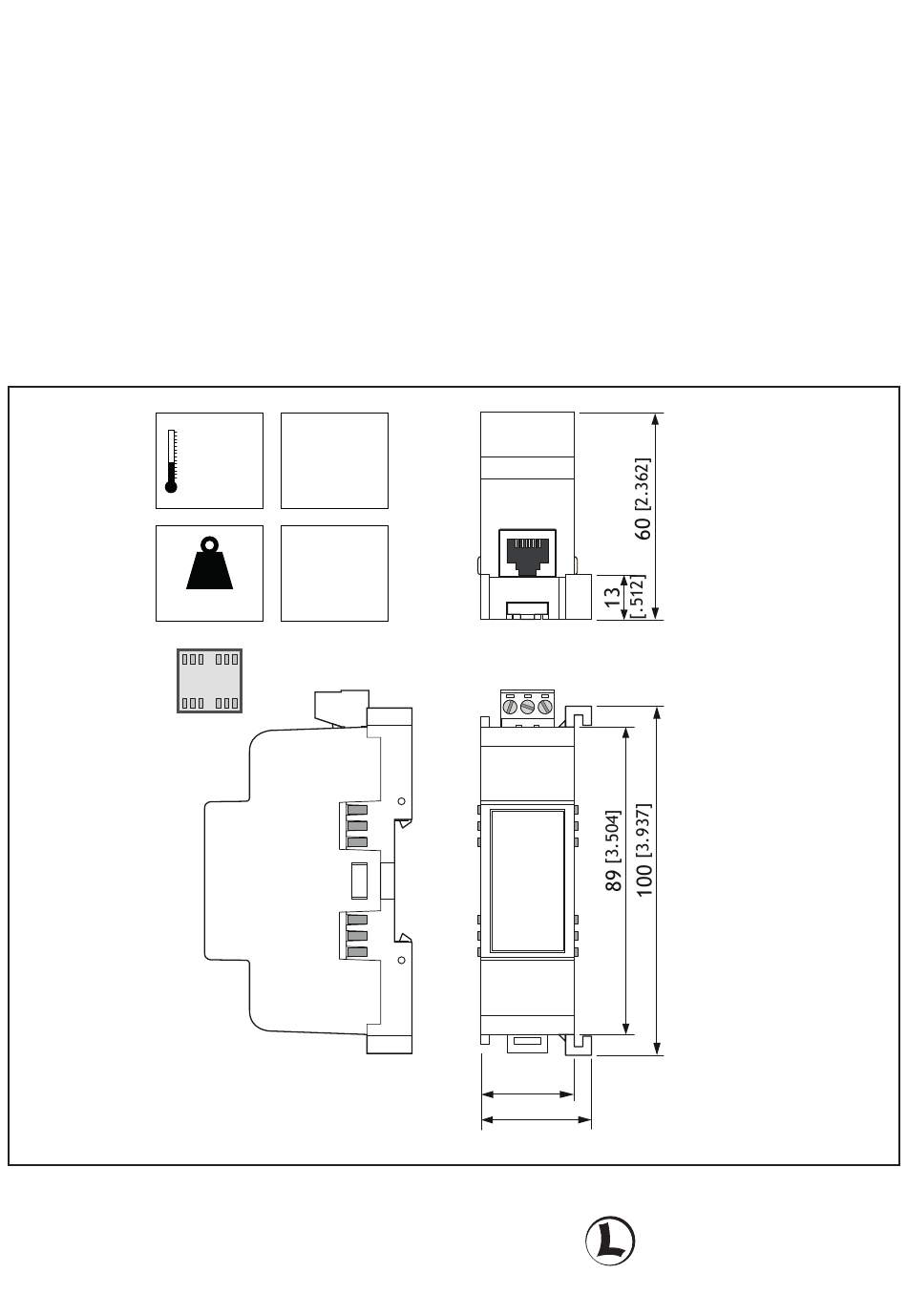

- Page 1 LIOB-A4, LIOB-A5 Adapter Installation instructions Instructions de montage Instruzioni di montaggio Montageanweisung Instrucciones de montaje Montagevoorschrift Monteringsanvisning 50º C 0º C 10 - 90 % [inch] 0.120 kg LIOB CONNECT 24 VDC 24 VDC INPUT OUTPUT L-IOB Adapter 4 [1.063] [2.362]...
- Page 2 9 10 11 24 VDC OUTPUT LIOB L-IOB CONNECT Adapter 4 RJ45 Network Cable Connectors LIOB-A4 Connectors LIOB-A5 LIOB not connected CONNECT IN/OUT POWER Output GND OUTPUT Output 24 V PLUS RJ45 max. 400mA Network BUS TERMINATION Cable Input 24 V PLUS...
- Page 3 LIOB-A4/A5 schematics to extend the LIOB-Connect bus Use standard RJ45 network cables (max. 50 m) to connect 2 LIOB-Connect lines. On the last segment, the LIOB-Connect bus is terminated with the LIOB-A5. LIOB-A4 Made in Austria FUSE 6A COM DO1 DO2 DO3 DO4 DO5...
- Page 4 35 mm x 7.5 mm DIN rail (EN 50022, BS 5584, DIN 46277-3) LOYTEC electronics GmbH Date Code LIOB-A4 MADE IN EC W23/2014 SER# 006101810000F12A07 Serial number of the device LOYTEC Document 88083401 Web edition 06/2014 Printed in Austria http://www.loytec.com Data is subject to change support@loytec.com...
