Eduard B-17 seatbelts Manual

1/72 scale detail set for revell kit

Hide thumbs

Table Of Contents

Quick Links

Download this manual

1/1

ORIGINAL KIT PARTS

PÙVODNÍ DÍLY STAVEBNICE

2, 3, 4, 5

Kit part 41

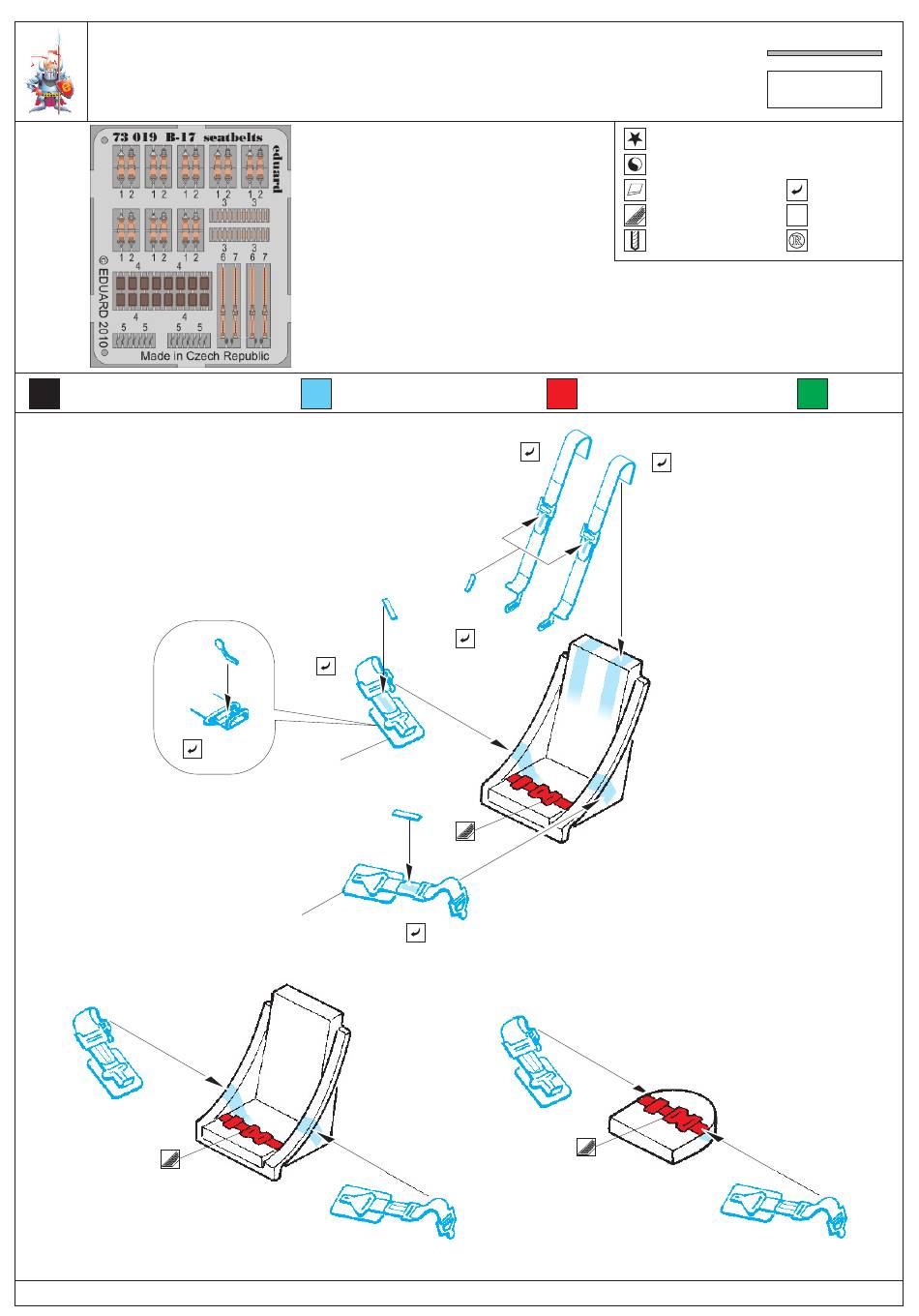

B-17 seatbelts

1/72 scale detail set for Revell kit • sada detailù pro model 1/72 Revell

PHOTO-ETCHED PARTS

LEPTANÉ DÍLY

2 sets

1, 3, 4

www.eduard.com

2 pcs

2, 3, 4, 5

APPLY EXPRESS MASK AND PAINT BEFORE GLUING

POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM

SYMETRICAL ASSEMBLY

SYMETRICKÁ MONTÁŽ

REMOVE

ODSTRANIT

GRIND

OBROUSIT

DRILL HOLE

VRTAT OTVOR

PARTS TO BE REMOVED

DÍLY K ODSTRANÌNÍ

2 sets

Kit part 19

4 sets

Kit part 29, Kit part 163

1, 3, 4

Made in Czech Republic

73 019

eduard

73 019

BEND

OHNOUT

OPTION

VOLBA

REPLACE

NAHRADIT

FILL

TMELIT

Table of Contents

Need help?

Do you have a question about the B-17 seatbelts and is the answer not in the manual?

Questions and answers

Summary of Contents for Eduard B-17 seatbelts

Page 1 2 sets Kit part 19 2, 3, 4, 5 2, 3, 4, 5 4 sets Kit part 29, Kit part 163 2 sets Kit part 41 1, 3, 4 1, 3, 4 © EDUARD M.A. 2010 Made in Czech Republic www.eduard.com...
Page 2: Kit Part
73 376 eduard B-17G interior S.A. 73 376 1/72 scale detail set for Revell kit • sada detailù pro model 1/72 Revell APPLY EXPRESS MASK AND PAINT BEFORE GLUING POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM SYMETRICAL ASSEMBLY SYMETRICKÁ MONTÁŽ REMOVE...
Page 3: Table Of Contents
73 376 plastic = 0,8mm l = 3,9mm 2 pcs plastic = 0,8mm l = 2,7mm 24, 28 4 pcs Kit part 16 24, 28 4 pcs Kit part Kit part 46 3 pcs 2 sets Kit part 21 Kit part 20 Kit part 67...
Page 4: Kit Part 63
= 3mm l = 5mm Kit part 63 Kit part 13 2 pcs plastic = 3mm l = 5mm 50, 59 3 pcs plastic = 3mm l = 5mm 4 pcs Made in Czech Republic © EDUARD M.A. 2010 www.eduard.com...
Page 5: Pcs
Upravte pøesnou pozici a pøimáèknìte. Díl dokonale pøilne 2. Nepokládejte samolepící díly na volné plochy. Pokud až po pøimáèknutí, pøed pøimáèknutím lze dílem opatrnì je omylem pøilepíte, pøi pokusu o odlepení dojde k manipulovat. poškození dílu. © EDUARD M.A. 2010 Made in Czech Republic www.eduard.com...
Page 6 CX 279 B-17G 1/72 eduard The die-cut mask for accurate canopy frame painting of the Revell scale 1/72 KIT CX 279...
Page 8 72 514 eduard B-17G landing flaps 72 514 1/72 scale detail set for Revell kits • sada detailù pro modely 1/72 Revell APPLY EXPRESS MASK AND PAINT BEFORE GLUING POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM SYMETRICAL ASSEMBLY SYMETRICKÁ MONTÁŽ REMOVE...
Page 9 1, 8, 10, 11 5, 9, 10, 11 5 pcs plastic = 0,4mm l = 3mm plastic Step 1 plastic 5 pcs plastic = 0,5mm l = 2,5mm plastic Step 2 Right wing Made in Czech Republic © EDUARD M.A. 2010 www.eduard.com...
Page 10 72 516 eduard B-17G bomb bay 72 516 1/72 scale detail set for Revell kit • sada detailù pro model 1/72 Revell APPLY EXPRESS MASK AND PAINT BEFORE GLUING POUŽÍT EXPRESS MASK NABARVIT PRED SLEPENÍM SYMETRICAL ASSEMBLY SYMETRICKÁ MONTÁŽ REMOVE...
Page 11 72 516 2 sets 2 sets 8 pcs. 12 pcs...
Page 12 72 516 Kit part 6 Kit part 1 Kit part 2 Kit part 5 Kit part 5 Kit part 3 Kit part 12...
Page 13 72 516 Kit part 13 Fill Kit part 92 Fuselage Kit part 91 VELKÁ ????? pcs plastic = 0,5mm l = 2mm MALÁ ????? pcs plastic = 0,5mm l = 2mm Made in Czech Republic © EDUARD M.A. 2010 www.eduard.com...
Page 14 73 382 eduard B-17G front interior 73 382 1/72 scale detail set for Revell kit • sada detailù pro model 1/72 Revell APPLY EXPRESS MASK AND PAINT BEFORE GLUING POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM SYMETRICAL ASSEMBLY SYMETRICKÁ MONTÁŽ REMOVE...
Page 15 73 382 Kit part 13 Kit part 77 Kit part 23 2 pcs Kit part 31 2 sets 2 sets Kit part 90 2 pcs plastic = 0,5mm Kit part 46 l = 2mm...
Page 16 For further detail sets look for 72 514 B-17G landing flaps, eduard 72 515 B-17G exterior, 73 019 B-17G seatbelts, 73 376 B-17G interior and 73 383 B-17G rear interior (not included in this set) Made in Czech Republic © EDUARD M.A. 2010 www.eduard.com...
Page 17 72 515 eduard B-17G exterior 72 515 1/72 scale detail set for Revell kit • sada detailù pro model 1/72 Revell APPLY EXPRESS MASK AND PAINT BEFORE GLUING POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM SYMETRICAL ASSEMBLY SYMETRICKÁ MONTÁŽ REMOVE BEND...
Page 18 72 515 Right wing Left wing Kit parts 145, 146, 147, 149, 151, 152 Kit parts 145, 146, 147, 148, 151, 152 4 sets Kit part 116 Kit part 132 Kit parts 107, 108, 128 4 sets Kit parts 159, 160 4 sets Kit part 154...
Page 19 73 376 B-17G interior s. adhesive, 73 382 B-17G front interior s. adhesive, eduard 73 383 B-17G rear interior and 72 516 B-17G bomb bay (not included in this set) Plastic Push Made in Czech Republic © EDUARD M.A. 2011 www.eduard.com...
Page 20 73 383 eduard B-17G rear interior 73 383 1/72 scale detail set for Revell kit • sada detailù pro model 1/72 Revell APPLY EXPRESS MASK AND PAINT BEFORE GLUING POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM SYMETRICAL ASSEMBLY SYMETRICKÁ MONTÁŽ REMOVE...
Page 21 73 383 Kit part 3 plastic = 0,5mm l = 0,7mm plastic = 1mm l = 8mm 48, 80 Kit part 47, 58, 59 Kit part 3 48, 80 Kit part 32 12, 63 9, 26 10, 11, 14, 31 60, 68 8, 62...
Page 22 73 383 Kit part 36 Kit part 35 Kit part 34 Kit part 37 3 pcs 2 pcs Kit part 63 Kit part 13 Kit part 56 Kit part 56 29, 30 Kit parts 47, 58, 59 Kit part 63 plastic = 0,5mm l = 1mm...
Page 23 73 383 Kit part 13 Kit part 162 Kit part 60 Kit part 90 2 sets 5 sets Kit part 161 Kit parts 164, 166 Kit part 167 Kit parts 164, 166 © EDUARD M.A. 2011 Made in Czech Republic www.eduard.com...
