E800 SHR + Laser+ RF Treatment System
User's Manual
Version:
170120 1.0
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Risen Beauty E800

  • Page 1 E800 SHR + Laser+ RF Treatment System User’s Manual Version: 170120 1.0 Page 1...

  • Page 2: Table Of Contents

    Contents Pay Attention to Warnings, Cautions and Notes............3 1.1 Overview........................... 4 1.2 Device Brief Introduction....................4 1.3 Device Structure......................4 1.4 Medical Use-Application Areas..................4 Chapter 2 Safety........................5 2.1 Introduction........................5 2.2 Responsibilities of User....................5 2.3 User Training........................5 2.4 Explanation to Patients....................

  • Page 3: Pay Attention To Warnings, Cautions And Notes

    Pay Attention to Warnings, Cautions and Notes WARNING Warning means that not following instructions properly or ignoring them completely can endanger patients and/or operators. CAUTION Attention means that not following instructions properly or ignoring them completely can damage the unit. NOTE Notes provide additional information.

  • Page 4: Overview

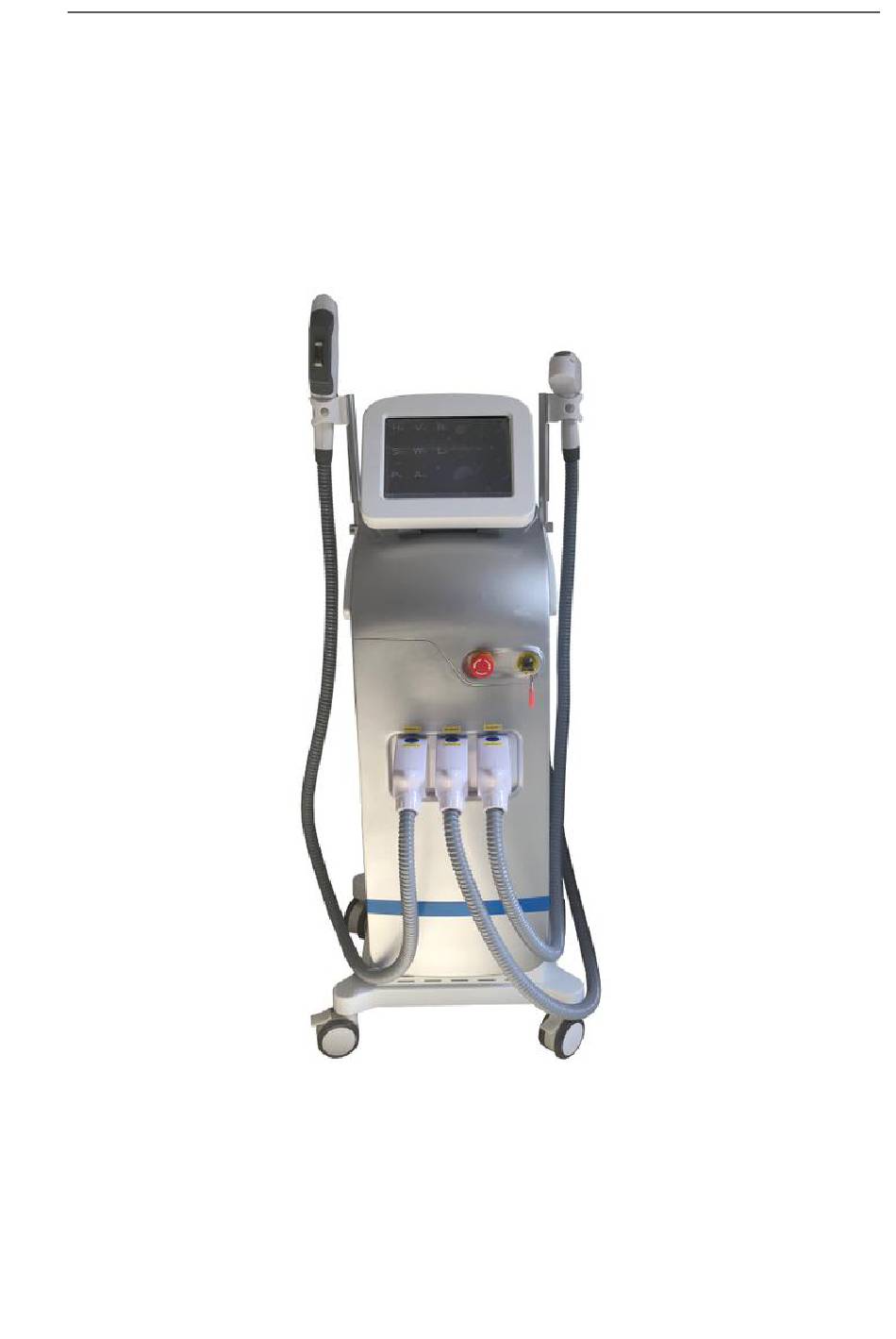

    1.2 Device Brief Introduction Product Name: SHR+LASER+ RF Mult-functionTreatment System Figure 1.1 shows the device. Figure1.1 E800 Treatment System 1.3 Device Structure This device is composed of three parts: (1) main unit, (2) control panel, and (3) thetreatment handpiece The control panel includes the color 10.4” LCD screen, the power switch and emergency shut off switch.

  • Page 5: Chapter 2 Safety

    6. Freckle, vascular lesions and facial blemish removal Chapter 2 Safety 2.1 Introduction This chapter describes the proper use of the super hair removal Treatment System. Each operator must have read and understood the User’s Manual completely prior to starting the Device. 2.2 Responsibilities of User WARNING This device may cause thermal injury if used improperly.

  • Page 6: Optical Safety

    2.5 Optical Safety All personnel (including the patient) should wear the protective glasses; opaque eye shield for the patient and filtered 200 nm – 1200 nm for the operators. The goggles / glasses provided with this unit are manufactured specifically for the 200 nm to 1200 nm wavelength produced by the SHR unit. Do not substitute treatment / safety glasses with other types of tinted eyewear which may not meet the specific safety requirements of the unit.
  • Page 7 2. WARNING LABEL : Position: front side WARNING PROTECTIVE EYEWEAR MUST BE USED RISK OF EXPLOSION IF USED IN THE PRESENCE OF FLAMMABLE ANESTHETICS 3. CAUTION LABEL : Position: cover back side 4. CAUTION LABEL : 5. DANGEROUS VOLTAGE WARNING LABEL: Position: inside Page 7...

  • Page 8: Chapter 3 Description

    Chapter 3 Description This chapter will introduce the main parts of the system, the accessories and the process of installation & debugging. 3.1 Parts and control The Multi SHR Treatment System is composed of the following parts: 1.OPTTreatment handpiece 4.Laser Treatment handpiece 2.

  • Page 9: Accessories

    immediately shut off the device’s power supply in case of any emergency. Pressing this button will cut off the power supply to the whole system. Rotating the button in the direction of the arrow printed on its surface will disengage the button and will reengage the power supply. When this button is engaged, remember to turn the key switch to the off position afterwards.
  • Page 10 Relative humidity scope : 30%~80% Atmospheric pressure barometric : 86kpa -106kpa The store environment temperature : +5C ~+55C Power supply : 230V AC , 50/60Hz, 10A; or115V AC , 50/60Hz, 20A Page 10...

  • Page 11: Chapter 3Installation

    User’s Manual Chapter 3Installation The process of installation includes: (Performed by an authorized technician only) 1. Unpacking the device. 2. Staying the device for one day, in order to avoid destruction by high humidity during long distant transportation. 3. Assembly of its components and ensure that all connections are firmly in place. 4.
  • Page 12 Note: Please always open the vent (except long delivery to other places)  Infuse distilled water until the water level reaches 90% of the water level (Green working level)  Before every treatment ,please ensure that there is enough water of the machine. ...

  • Page 13: Installation

    3.4 Installation 1) Ensure that the key is in the off position and that the emergency cut off button is not engaged. If it is engaged, release it by rotating the button towards the direction of the arrow indicator. 3） Plug the handpiece connector firmly and properly to avoid the water circulation problems.
  • Page 14 Attach the power cord and attach the foot switch cord. Switch the Safety breaker to the “On” position Switch the device on by turning it in a clockwise direction. At this time water circulation and the cooling system starts automatically. Observe whether water circulation runs well or not.

  • Page 15: Move

    Handpiece Ⅰ Handpiece Ⅲ Handpiece Ⅱ 9) Replace the treatment head or replace water 1. When replacing the treatment head, drain the remaining water in the previous handle. Pay particular attention as not to spill any water on the electronic terminals. Wipe off any spilled water with a soft absorbent cloth.

  • Page 16: Transport And Storage Procedure

    Pull out the power cable Relocate the unit (Avoid tilting the device) CAUTION If the instrument is to be moved outside the hospital, please contact your dealer. 3.5 Transport and Storage Procedure 3.5.1 Procedure 1. The cooling water in the instrument should be let outand cleaned during storage and transport. 2 .The device should vertically be installed in the outer packing box during transport.

  • Page 17: Chapter 5 Operation

    User’s Manual Chapter 5 Operation This chapter will describe the operating procedure of the SHR Treatment System. WARNING WARNING: HIGH VOLTAGE: please ensure that all panels are secured prior to operation. Place the SHR treatment head on its support when on standby mode. All personnel in the treatment room must wear the protective filtered glasses supplied.
  • Page 18 2.Function Interface Select one treatment function ,The screen will show the treatment interface as figure (SHR treatment model& RF model & Laser model ) Figure 5.1 2. When you use the SHR function, please enter the system setting, the password is 201010, then select Handpiece set to choose the handlepiece I for SHR, then you can use the SHR function.
  • Page 19 *Once you press treatment model of HR / SR / PR WR or AR on Figure 5.1, you will come to the Parameter setting Menu (IPL treatment model) Pulse Width / Delay Pulse Numbers Frequency Total Treatment intensity Shooting numbers Treatment cooling Ready Once you press treatment model of SHR a on Figure 5.1, Please select Handpiece Ⅰ...
  • Page 20 Once you press treatment model of RF a on Figure 5.1, Please select Handpiece Ⅱ to do the treatment . (RF treatment model) Parameter setting Menu Total shooting numbers Current shooting numbers Laser Energy 1-50w Total working Output time Start to work Treatment cooling Standby Page 20...
  • Page 21 Once you press treatment model of Laser on Figure 5.1, Please select Handpiece Ⅲ to do the treatment . (Laser treatment model) Parameter setting Menu 2. Treatment interface Total shooting numbers Current shooting Working frequency 1-6 numbers Start to work Standby Return to the first interface Laser Energy 1-1000mj...
  • Page 22 3)Back ground setting Note : It is only used when the screen is not working well , need to calbriate the screen , when there is no problem , plesae don’t touch here and do the following procedures . NOTES: the above parameters can all be adjusted when there is something wrong with the machine , when the seller give the buyer the background setting password Do not point and operate the device elsewhere other than the intended treatment area.

  • Page 23: Chapter 6 Maintenance

    Chapter 6 Maintenance This chapter describes the regular maintenance that can be performed by the owner. Authorized personnel must do any other maintenance work not described in this chapter. System troubleshooting is also enumerated in this chapter. WARNING Before any maintenance work turn the power off and unplug device. Failure to turn off the power may cause an electric shock, damage to the device and bodily injury.

  • Page 24: Chapter 7 Clinical Application

    The treatment head / flash lamp has reached its maximum life span (300,000) shots. Replace the treatment head Suggset you to replace the handle after 300,000 shots , or Malfunction of flash lamp on the treatment effect will not be good the SHR treatment head The SHR treatment head is probably damaged, please change the SHR treatment head or contact the dealer.
  • Page 25 pigments such as melanin. The Skin Rejuvenation 530nm filter Head (SR) encompasses a broader spectrum of treatment. The Skin Rejuvenation parameters are best suited to target collagen fibers, which stimulates collagen regeneration. This stimulation of collagen regeneration is best suited for the treatment of fine, superficial, static lines / wrinkles and the treatment of enlarged pores and superficial acne scars.
  • Page 26 7.2.4Hair Growth Table Appr.dept Duratio Duratio Number Daily Area hs of terminal n of n of rate of anagen follicle TELOGEN ANAGEN follicles/cm2 growth HEAD Upper Lip 1~2.5mm 6 weeks 4 months Beard-Chin 2~4mm 10 weeks 1 year 0.38mm Cheeks 2~4mm 0.32mm Eyebrows...

  • Page 27: Treatment Must Know

    7.3 Treatment Must Know To the sufferer before carrying out the treatment please reading this segment in detail. Prior to treatment, the physician must first get a detailed history, rule out any disorders that may contraindicate this treatment and finally physically inspect the treatment area.

  • Page 28: Untoward Reactions

    7.4.5 Photographic Documentation Pre and postoperative photographic documentation is desired if possible. Please make sure that the camera settings, lighting, and distance is kept uniform. 7.5 Untoward Reactions 7.5.1 Pain The Xenon flash lamp produces an intense beam of light that generates heat and is precisely modulated by computers and filters.
  • Page 29 joules/ cm Generally, the greater the fluence the greater amount of light and heat is produced. Number of pulses: The energy of the each pulse can be divided into two, three or five pulses. This method of treatment prevents epidermal burns by allowing the target chromophores to cool between pulses.

  • Page 30: Post Operative Nursing Care

    the treatment head. 7.8 Post Operative Nursing Care 7.8.1 Sun Avoidance As with other forms of treatment, the treatment area should be protected from sunlight exposure. An SPF 15 or greater physical-sun block is recommended. Avoidance of direct exposure is also recommended. 7.8.2 Deoderant For axillary hair treatment, it is recommended that deodorants and shaving be avoided for the 24-48 hours after treatment.

  • Page 31: Treatment Of Pigmented Lesions

    Chapter 8 Parameters Selection * You may request the ref. treatment parameter sheet from authorized territory distributors. 8.1 Treatment of Pigmented Lesions 8.1.1 Treatment PrincSHRe Light absorbed by melanin is transformed into heat energy. This process causes the breakdown of pigment molecules and is cleaned and by phagocytes and are also shed off by the normal process skin renewal.

  • Page 32: Hair Removal

    Erythema normally subsides over a few hours for lighter individuals and may take longer for darker skinned individuals. A blister normally dries up after a few days and the scab generally falls off in 1 to 2 weeks. An antibiotic ointment can be applied to prevent infection and to hasten healing. Post inflammatory pigmentation can be treated with topical retinoids.
  • Page 33 Superficial hair Shorter pulse width Thick hair Longer pulse delay & lower fluence Thin hair Shorter pulse delay & higher fluence Dense hair growth Lower fluence Sparse hair growth Higher fluence Darker Skin color Longer pulse delay & Lower fluence Lighter skin color Shorter pulse delay &...

  • Page 34: Photorejuvenation & Deep Scars

    resolved. Please see attached follow-up treatment schedule in the treatment parameter chart attached. 8.4 PHOTOREJUVENATION & DEEP SCARS 8.4.1 Treatment Principle Collagen effectively absorbs the 530 nm-1200 nm spectrum of light. This results selective thermolysis of collagen resulting in heating and contraction of collagen bundles. The retraction of collagen bundles makes this process effective in the management of fine superficial wrinkles.

  • Page 35: Specifications

    as blister formation are noted. Follow up treatment is only scheduled when adverse effects have been resolved. Please see attached follow-up treatment schedule in the treatment parameter chart attached. Specifications Fitzpatrick Classification of Skin Types SKIN COLOR CHARACTERISTICS TYPE Light skin Always Burns Never Tans Light skin...
  • Page 36 Contious 14 working stand-by working shottingnon-stop Handpiece lifetime 300,000 shots times for each handle Weight 65KG Page 36...
