Max-Air Systems CAPR Series User Instructions page 90

CAUTION:
Read Sections 1 through 15 before proceeding.
NOTE
The Quick Cuff is used alternately with the 2082-03 and the 2026-03 Helmets. Assembly is nearly identical and is,
therefore, shown only on the 2082-03 except were different and appropriately noted.

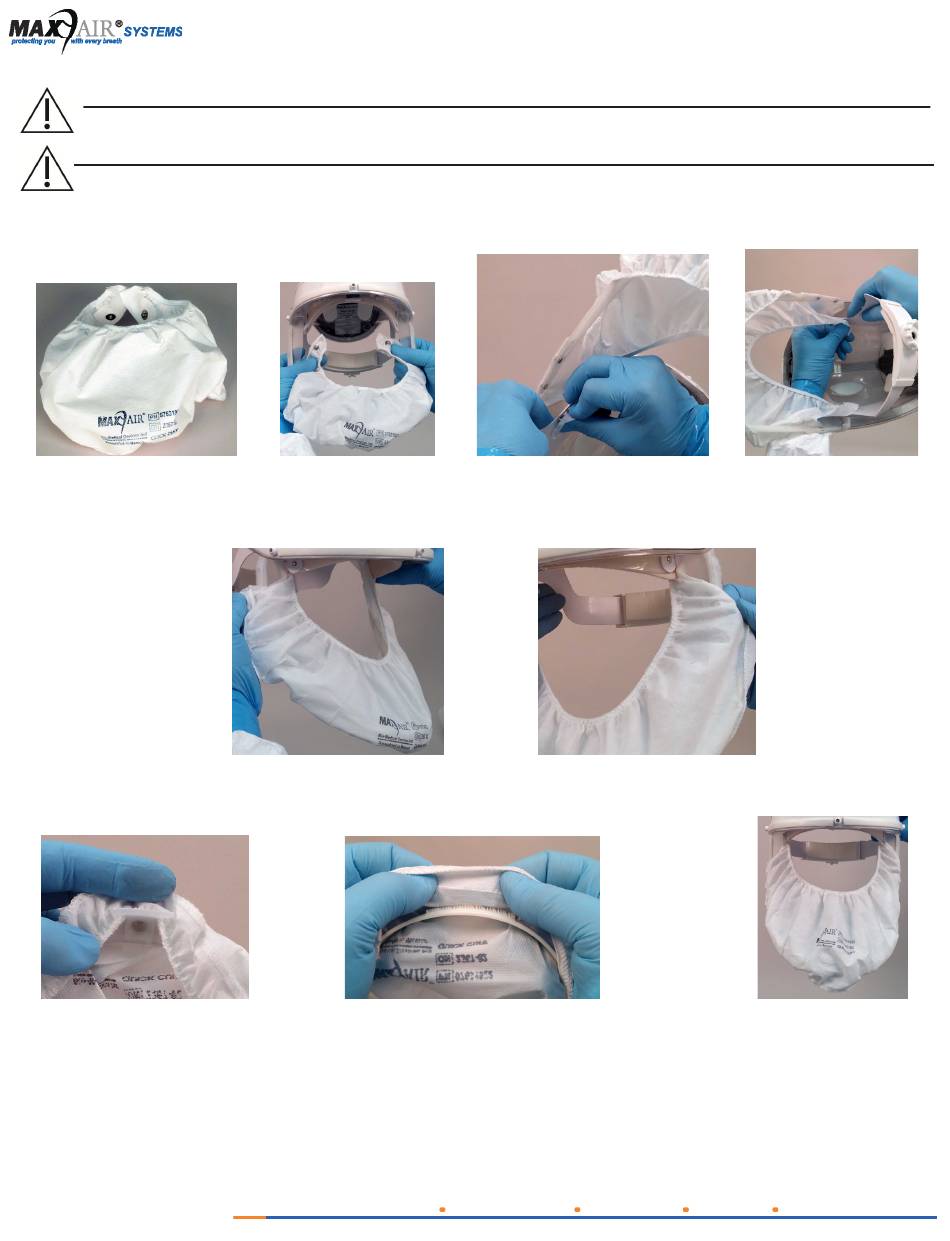

Assembly:
1. Remove Quick Cuff from
packaging and lay on the
counter with label facing up.
7a. For 2082-03 Helmet, with bottom
of ChinBar pointed up, pull bottom
of Quick Cuff around T-Tab.
Disassembly:
To disassemble Quick Cuff from the Helmet reverse steps 2-7 and discard per instutitional protocol for contaminated waste.
Page 90 P/N 03521015 Rev U1
2. Ensure proper orientation of
Quick Cuff Snaps by holding
up in front of ChinBar with
label facing you.
5. Gently pull top of one side of
Quick Cuff up and over bot-
tom of Velcro on ChinBar.
7b. For 2026-03 Helmet, with bottom of ChinBar pointed
up, pull bottom of Quick Cuff down and mate the bot-
tom inside Quick Cuff stiching to the velcro strip on the
ChinBar.
Bio-Medical Devices Intl
3. With Helmet turned upside down,
snap one side of Quick Cuff to an
appropriate Helmet Headband
Snap Hole.
6. Gently pull top of other side of
Quick Cuff up and over bottom of
Velcro on ChinBar on other side.
17171 Daimler Street Irvine, CA 92614
4. Snap other side of Quick Cuff
to a same positioned Helmet
Headband Snap Hole on the
other side of Helmet.
8. Finished assembly should
appear as shown.
