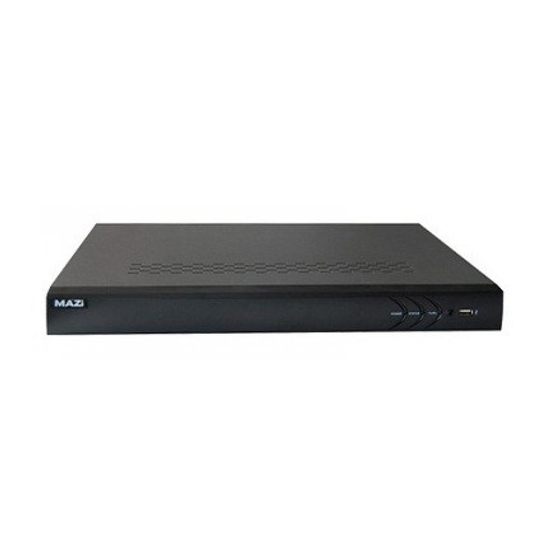

Summary of Contents for Mazi HTVR-0410LT
- Page 1 HD TVI Recorder Quick Manual...
-
Page 2: Table Of Contents
Quick Guide of HD TVI Recorder TABLE OF CONTENTS DVR Pre-Installation ............................5 DVR Installation .............................. 5 Hard Disk Installation ............................. 5 Front Panels ..............................7 Rear Panels ..............................10 Peripheral Connections ..........................11 Wiring of Alarm Input ........................... 11 Wiring of Alarm Output ........................ - Page 3 Quick Guide of HD TVI Recorder Regulatory information FCC information This equipment has been tested and found to comply with the limits for a digital device, pursuant compliance: to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 Quick Guide of HD TVI Recorder Trademarks and Registered Trademarks Windows and Windows mark are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. HDMI, HDMI mark and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
- Page 5 Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. This manual is applicable to the models listed in the following table. Series Model Type 720p real time HTVR-0410LT HD TVI DVR 720p HTVR-0820LT HTVR-1640LT 1080P real time HTVR-0410HT...
-
Page 6: Dvr Pre-Installation
Quick Guide of HD TVI Recorder DVR Pre-Installation The HD-TVI series DVR is highly advanced surveillance equipment that should be installed carefully. Please take into consideration the following precautionary steps before installation of the DVR. 1. Keep all liquids away from the DVR. 2. - Page 7 Quick Guide of HD TVI Recorder 3. Connect the power cable to the HDD. 4. Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD. 5. Re-install the cover of the DVR and fasten screws.
-
Page 8: Front Panels
Quick Guide of HD TVI Recorder Front Panels Front Panel of HTVR-0410LT/HTVR-0820LT Front Panel of HTVR-1640LT Description of Front Panel Name Function Description Power indicator turns yellow when the power switch on the real POWER panel is turned on. Status indicator blinks red when data is being read from or written to STATUS HDD. - Page 9 Quick Guide of HD TVI Recorder Name Function Description Enter numeral “1”; 1/MENU Access the main menu interface. Enter numeral “2”; Enter letters “ABC”; The F1 button when used in a list field will select all items in the list. 2/ABC/F1 In PTZ Control mode, it will turn on/off PTZ light and when the image is zoomed in, the key is used to zoom out.
- Page 10 Quick Guide of HD TVI Recorder Name Function Description camera. The ENTER button is used to confirm selection in any of the menu modes. It can also be used to tick checkbox fields. ENTER In Playback mode, it can be used to play or pause the video. In single-frame Playback mode, pressing the button will advance the video by a single frame.
-
Page 11: Rear Panels
Quick Guide of HD TVI Recorder Rear Panels The rear panel vaires according to different models. HTVR-xxxxLT HTVR-xxxxHT Description of Rear Panel Item Description VIDEO IN BNC interface for TVI and analog video input. AUDIO IN RCA connector AUDIO OUT RCA connector DB15 connector for VGA output. -
Page 12: Peripheral Connections
Quick Guide of HD TVI Recorder Peripheral Connections Wiring of Alarm Input The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram. If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the device. -
Page 13: Rs-485 And Controller Connection
3. Connect A+ on PTZ to D+ on terminal block and B- on controller to D- on terminal block. Fasten stop screws. 4. Connect pluggable block back into terminal block. Specifications Table 1 Specification for HTVR-xxxxLT Model HTVR-0410LT HTVR-0820LT HTVR-1640LT Video compression H.264 Analog and HD-TVI video... - Page 14 Quick Guide of HD TVI Recorder Synchronous playback 4-ch 8-ch 16-ch Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF Remote connections Network TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, management Network protocols iSCSI, UPnP™, HTTPS...
- Page 15 Quick Guide of HD TVI Recorder Stream type Video, Video & Audio Synchronous playback 4-ch 8-ch Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF Remote connections Network TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, management Network protocols iSCSI, UPnP™, HTTPS...
-
Page 16: Hdd Storage Calculation Chart
Quick Guide of HD TVI Recorder HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Bit Rate Storage Used 128K 160K 192K 224K 256K... -
Page 17: Accessing By Web Browser
Quick Guide of HD TVI Recorder Accessing by Web Browser Logging In You can get access to the device via web browser. Open web browser, input the IP address of the device and then press Enter. The login interface appears. Input the user name and password, and click the Login button. -
Page 18: Recording
Quick Guide of HD TVI Recorder Interface Introduction Name Description Displays the list of channels and the playing and recording status of each Channel List channel. Live View Window Displays the image of channel, and multi-window division is supported. Pan, tilt, zoom operations are supported, as well as preset editing and calling. PTZ Control PTZ function can only be realized if the connected camera supports PTZ control. -
Page 19: Playback
Quick Guide of HD TVI Recorder 1) Configure All Day or Customize Record: If you want to configure the all-day recording, please check the All Day checkbox. If you want to record in different time sections, check the Customize checkbox. Set the Start Time and End Time. -
Page 20: Log
Quick Guide of HD TVI Recorder Button Description Button Description Play/Pause Stop Slow down Speed up Play by single frame Capture Stop all playback Download Video clip Open/Close audio Full Screen Reverse play Select window-division Volume mode You can drag the progress bar with the mouse to locate the exact playback point. Or input the time in the textbox and click button to locate the playback point. -
Page 21: Menu Operation
Quick Guide of HD TVI Recorder Menu Operation Menu Structure The menu structure of the DS-7300HGHI&HQHI-SH and DS-8100HGHI&HQHI-SH DVR is shown below: Menu Playback Maintenance Export Manual Record Camera Configuration Shutdown Normal Normal Record General Schedule Camera General System Info Logout Event Event... -
Page 22: Live View
Chapter 8.5 Handling Exceptions.) Adding IP Cameras The connection of IP cameras is supported by the HTVR. For the HTVR-0410LT, 1 network camera can be added, and for other HTVR models, 2 network cameras can be added. Steps:... - Page 23 Quick Guide of HD TVI Recorder Select Camera in the pop-up menu to enter the IP Camera Management interface. The online cameras with same network segment will be displayed in the camera list. Click the button to add the camera. The added camera is marked in black while the camera not added is marked in blue.
-
Page 24: Record
Quick Guide of HD TVI Recorder You can edit the IP address, protocol, management port, and other information of the IP camera to be added. Click Add to add the camera. Record Before you start: Make sure that the HDD has already been installed. If not, please install a HDD and initialize it. You may refer to the user manual for detailed information. -
Page 25: Playback
Quick Guide of HD TVI Recorder 2. Click Continuous or Motion Detection button on your demand. 3. Click Yes on the popup confirmation window to save the settings. Playback Play back the record files of a specific channel in the live view mode. ... -
Page 26: Backup
Quick Guide of HD TVI Recorder The toolbar in the bottom part of Playback interface can be used to control playing process. Just check the channel or channels if you want to switch playback to another channel or execute simultaneous playback of multiple channels. - Page 27 Quick Guide of HD TVI Recorder 4. Click Export to enter Export interface. 5. Choose backup device and click the Export button to start exporting. 6. Check backup result. Choose the record file in Export interface and click button to check it.
